NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

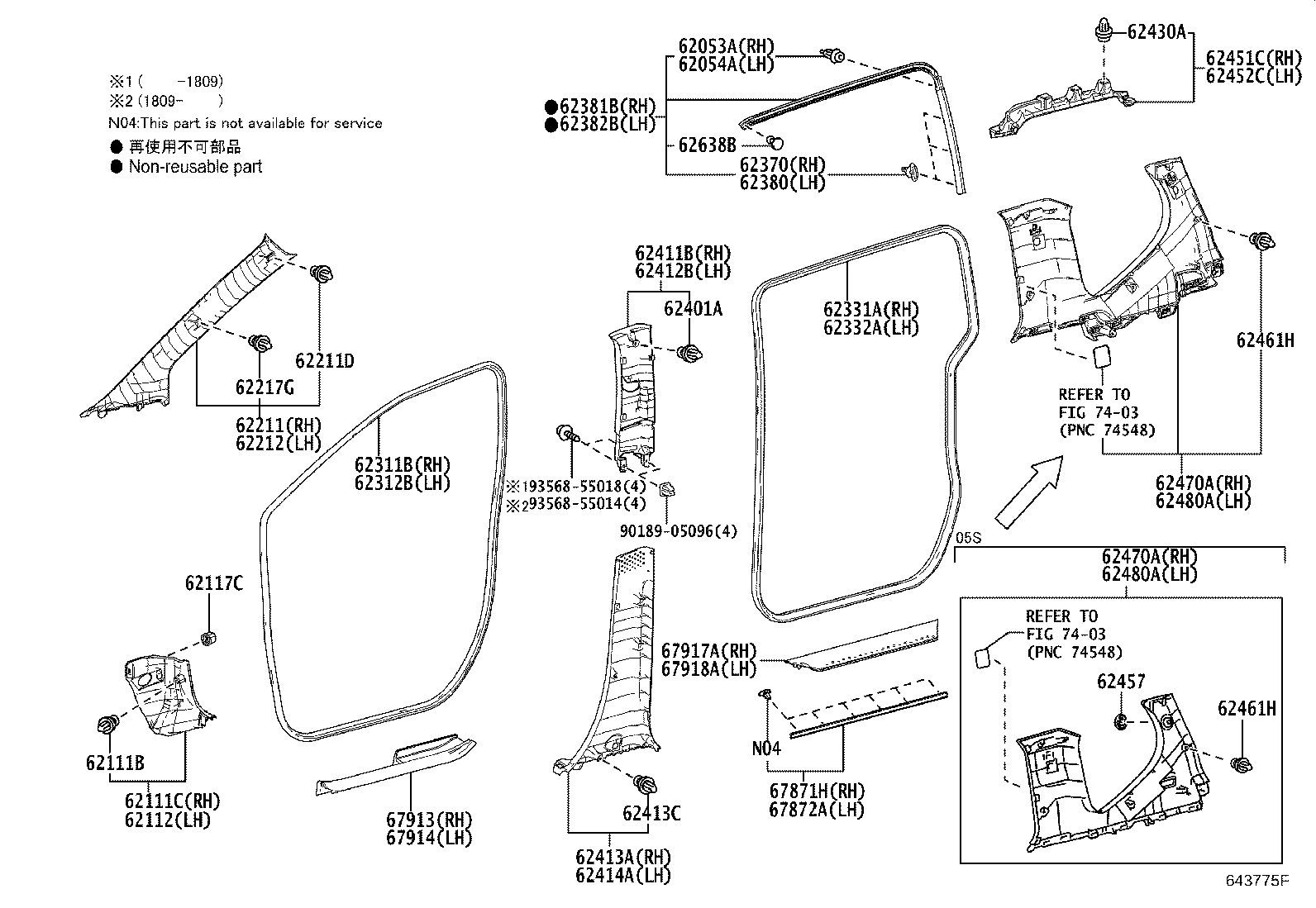

Click highlighted areas on diagram

diagram 62053A 62054A 62111B 62111C 62112 62117C 62211 62211D 62212 62217G 62311B 62312B 62331A 62332A 62370 62380 62381B 62382B 62401A 62411B 62412B 62413A 62413C 62414A 62430A 62451C 62452C 62457 62461H 62461H 62470A 62470A 62480A 62480A 62638B 67871H 67872A 67913 67914 67917A 67918A 7403 7403 9018905096 9356855014 9356855018
Part # Description Qty Price
62053A - RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH
67867-48030

NHP170,NSP170

 1
62054A - RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH
67867-48030

NHP170,NSP170

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-10161

NHP170,NSP170

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-52270C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-52440C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

NHP170,NSP170

 2
62211 - GARNISH, FRONT PILLAR, RH
62211-52360B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

NHP170,NSP170

 2
62212 - GARNISH, FRONT PILLAR, LH
62212-52360B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62217G - CLIP, FRONT PILLAR GARNISH
90467-10161

NHP170,NSP170

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-52250

NHP170,NSP170

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-52210

NHP170,NSP170

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-52130

NHP170,NSP170

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-52150

NHP170,NSP170

 1
62370 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH
67867-12150

NHP170,NSP170

 3
62380 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH
67867-12150

NHP170,NSP170

 3
62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH
62381-52040

NHP170,NSP170

 1
62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH
62382-52040

NHP170,NSP170

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-10161

NHP170,NSP170

 2
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-52230B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-52230B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-52190C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

NHP170,NSP170

 10
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-52180C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
62430A - CLIP, ROOF SIDE RAIL GARNISH
90467-10161

NHP170,NSP170

 6
62451C - GARNISH, ROOF SIDE RAIL, REAR RH
62451-52030B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62452C - GARNISH, ROOF SIDE RAIL, REAR LH
62452-52040B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-10161

NHP170,NSP170

 14
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-10161

NHP170,NSP170

 14
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-52070B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-52070B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-52100B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-52100B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
62638B - CLIP
90467-06084

NHP170,NSP170

 2
67871H - WEATHERSTRIP, SLIDE DOOR, NO.1 RH
75631-52040

NHP170,NSP170

 1
67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH
75641-52080

NHP170,NSP170

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-52200C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-52330C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-52230C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-52230C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
Common parts
90189-05096
93568-55014
93568-55018
Linked diagrams
7403
