NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

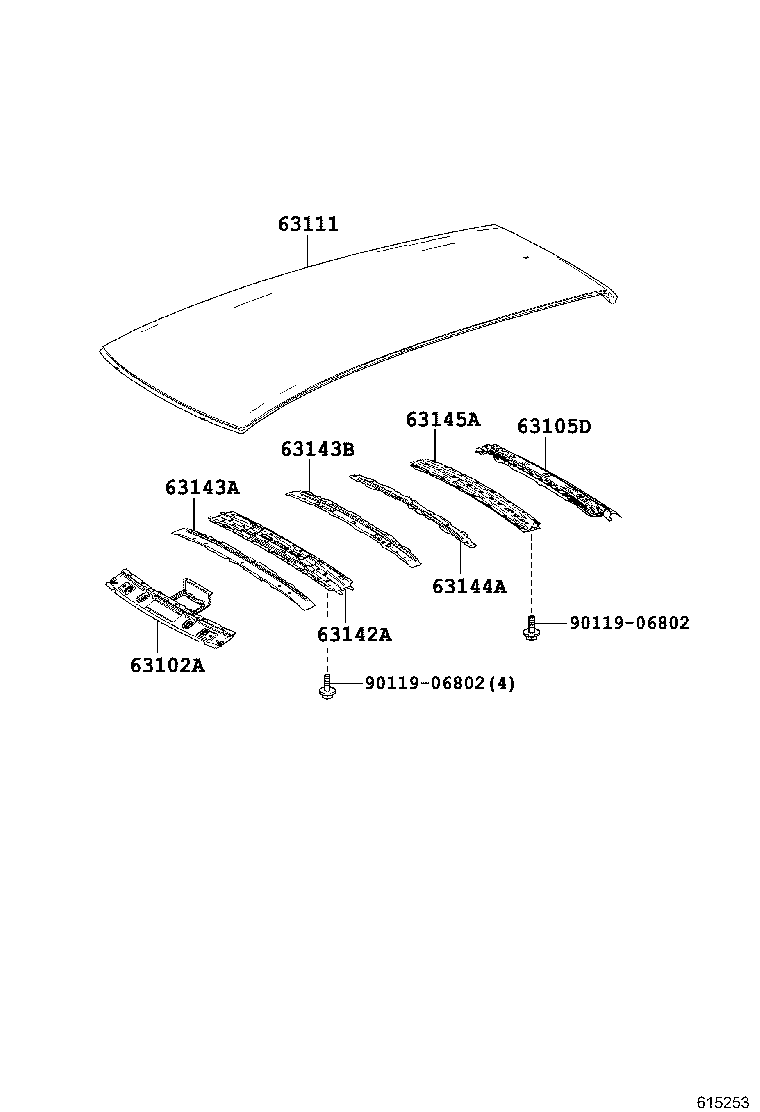

Click highlighted areas on diagram

diagram 63102A 63105D 63111 63142A 63143A 63143B 63144A 63145A 9011906802 9011906802
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-52230

NHP170,NSP170

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-52200

NHP170,NSP170

 1
63111 - PANEL, ROOF
63111-52450

NHP170,NSP170

 1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63103-52140

NHP170,NSP170

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-52210

NHP170,NSP170

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63144-52170

NHP170,NSP170

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63148-52130

NHP170,NSP170

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63208-52040

NHP170,NSP170

 1
Common parts
90119-06802
