NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)

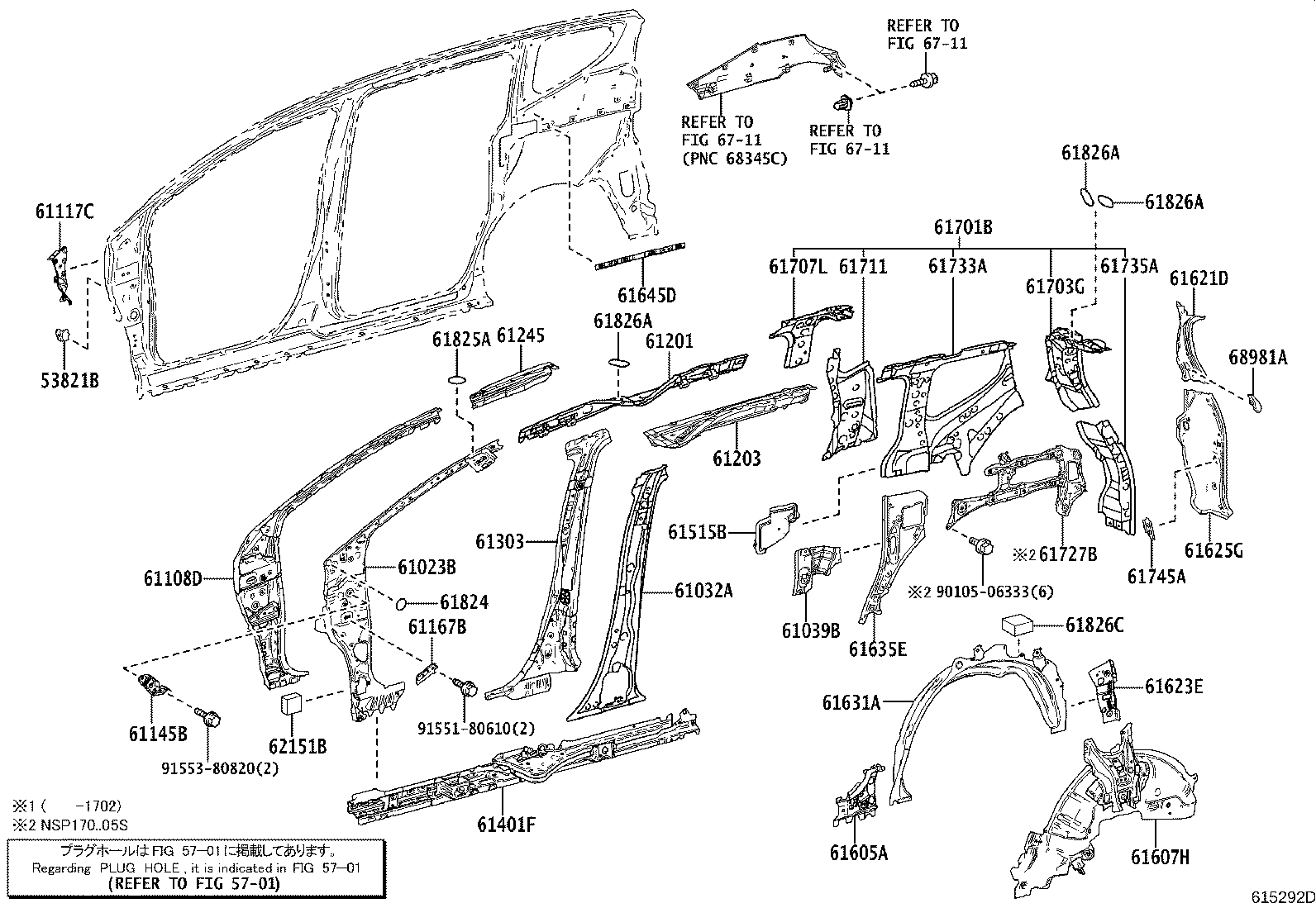

ILLUST NO. 2 OF 2(1506- )
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-48030 |
NHP170,NSP170 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52210 |
NHP170,NSP170 |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-52130 |
NHP170,NSP170 |
1 | ||
| 61039B - REINFORCE SUB-ASSY, REAR PILLAR, UPPER RH | ||||
| 61039-52020 |
NHP170,NSP170 |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-52220 |
NHP170,NSP170 |
1 | ||
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-52060 |
NHP170,NSP170 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-52070 |
NHP170,NSP170 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-52010 |
NHP170,NSP170 |
2 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-52130 |
NHP170,NSP170 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-52070 |
NHP170,NSP170 |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-52120 |
NHP170,NSP170 |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-52050 |
NHP170,NSP170 |
1 | ||
| 61401F - REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH | ||||
| 61401-52030 |
NHP170,NSP170 |
1 | ||
| 61401-52031 |
NHP170,NSP170 |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-52040 |
NHP170,NSP170..N |
1 | ||
| 61515-52030 |
NHP170,NSP170..Q |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61605-52080 |
NHP170,NSP170 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52380 |
NHP170,NSP170 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52190 |
NHP170,NSP170 |
1 | ||
| 61623E - EXTENSION, QUARTER INNER PANEL, REAR RH | ||||
| 61623-52110 |
NHP170,NSP170 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52180 |
NHP170,NSP170 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52911 |
NHP170,NSP170 |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-52131 |
NHP170,NSP170 |
1 | ||
| 61635-52130 |
NHP170,NSP170 |
1 | ||
| 61645D - RETAINER, QUARTER, INNER | ||||
| 61645-52040 |
NHP170,NSP170 |
1 | ||
| 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH | ||||
| 61701-52190 |
NHP170,NSP170 |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-52100 |
NHP170,NSP170 |
1 | ||
| 61707L - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH | ||||
| 61707-52070 |
NHP170,NSP170 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52210 |
NHP170,NSP170 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-52071 |
NHP170,NSP170 |
1 | ||
| 61733-52070 |
NHP170,NSP170 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-52151 |
NHP170,NSP170 |
1 | ||
| 61735-52150 |
NHP170,NSP170 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52110 |
NHP170,NSP170 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52030 |
NHP170,NSP170 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52030 |
NHP170,NSP170 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-52060 |
NHP170,NSP170 |
6 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-52060 |
NHP170,NSP170 |
6 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-52060 |
NHP170,NSP170 |
6 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-52040 |
NHP170,NSP170 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
NHP170,NSP170 |
2 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-52120 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 91551-80610 | ||||
| 91553-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6711 | ||||

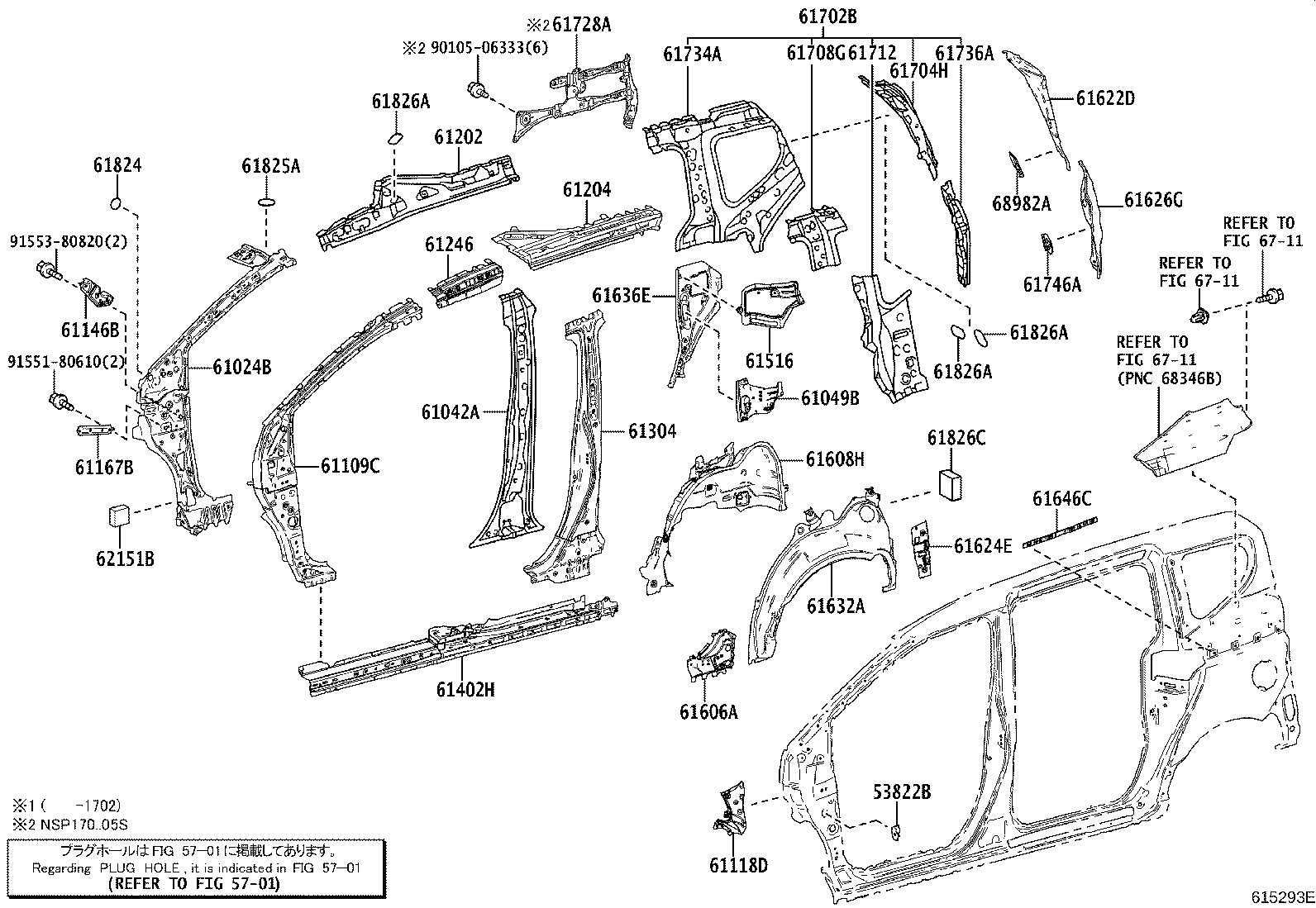

ILLUST NO. 2 OF 2(1506- )
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-48030 |
NHP170,NSP170 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52230 |
NHP170,NSP170 |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-52120 |
NHP170,NSP170 |
1 | ||
| 61049B - REINFORCE SUB-ASSY, REAR PILLAR, UPPER LH | ||||
| 61049-52020 |
NHP170,NSP170 |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-52210 |
NHP170,NSP170 |
1 | ||
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-52060 |
NHP170,NSP170 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-52080 |
NHP170,NSP170 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-52010 |
NHP170,NSP170 |
2 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-52120 |
NHP170,NSP170 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-52070 |
NHP170,NSP170 |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-52120 |
NHP170,NSP170 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-52060 |
NHP170,NSP170 |
1 | ||
| 61402H - REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH | ||||
| 61402-52041 |
NHP170,NSP170 |
1 | ||
| 61402-52040 |
NHP170,NSP170 |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-52030 |
NHP170,NSP170 |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61606-52080 |
NHP170,NSP170 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52420 |
NHP170,NSP170 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52190 |
NHP170,NSP170 |
1 | ||
| 61624E - EXTENSION, QUARTER INNER PANEL, REAR LH | ||||
| 61624-52110 |
NHP170,NSP170 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52180 |
NHP170,NSP170 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52907 |
NHP170,NSP170 |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-52130 |
NHP170,NSP170 |
1 | ||
| 61636-52131 |
NHP170,NSP170 |
1 | ||
| 61646C - RETAINER, QUARTER, INNER | ||||
| 61645-52040 |
NHP170,NSP170 |
1 | ||
| 61702B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH | ||||
| 61702-52211 |
NHP170,NSP170 |
1 | ||
| 61702-52210 |
NHP170,NSP170 |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-52120 |
NHP170,NSP170 |
1 | ||
| 61708G - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH | ||||
| 61708-52100 |
NHP170,NSP170 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52240 |
NHP170,NSP170 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61054-52010 |
NHP170,NSP170 |
1 | ||
| 61734-52060 |
NHP170,NSP170 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-52140 |
NHP170,NSP170 |
1 | ||
| 61736-52141 |
NHP170,NSP170 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61745-52110 |
NHP170,NSP170 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52030 |
NHP170,NSP170 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52030 |
NHP170,NSP170 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-52060 |
NHP170,NSP170 |
6 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-52060 |
NHP170,NSP170 |
6 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-52060 |
NHP170,NSP170 |
6 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-52040 |
NHP170,NSP170 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
NHP170,NSP170 |
2 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-52120 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 91551-80610 | ||||
| 91553-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6711 | ||||

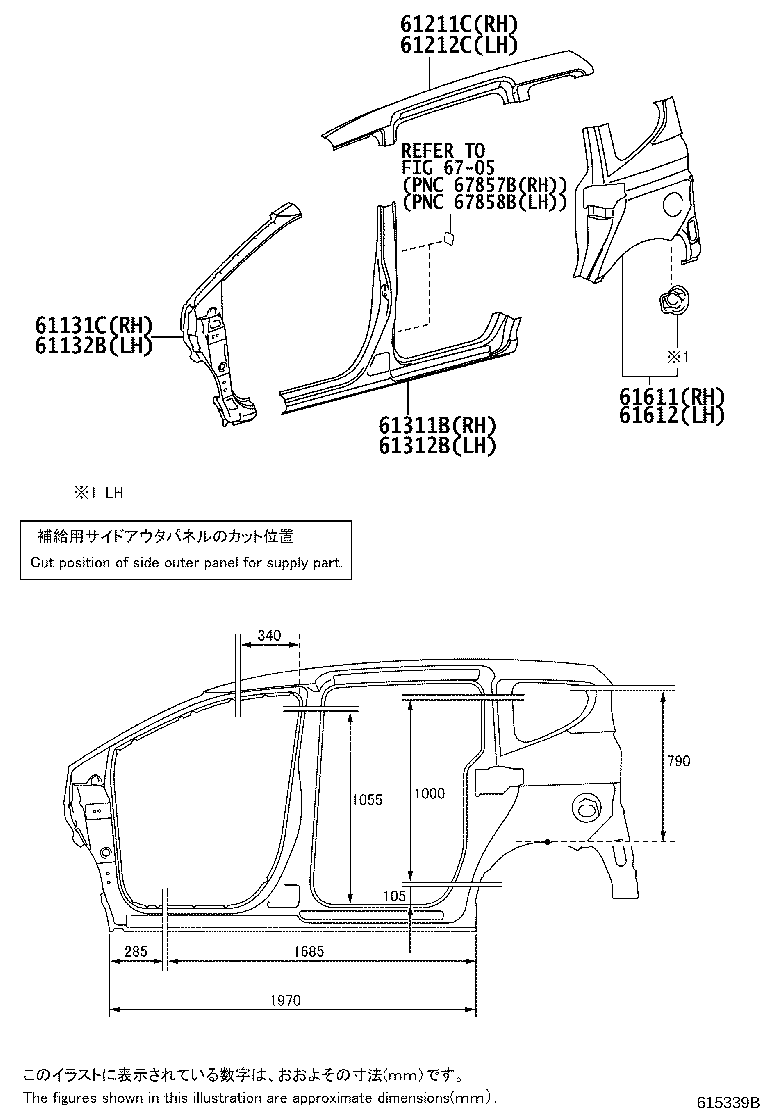

ILLUST NO. 1 OF 2(1506- )
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-52370 |
NHP170,NSP170 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-52330 |
NHP170,NSP170 |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-52220 |
NHP170,NSP170 |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-52240 |
NHP170,NSP170 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-52080 |
NHP170,NSP170 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-52070 |
NHP170,NSP170 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-52490 |
NHP170,NSP170 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52800 |
NHP170,NSP170 |
1 | ||
| Linked diagrams | ||||
| 6705 | ||||
