NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

Click highlighted areas on diagram

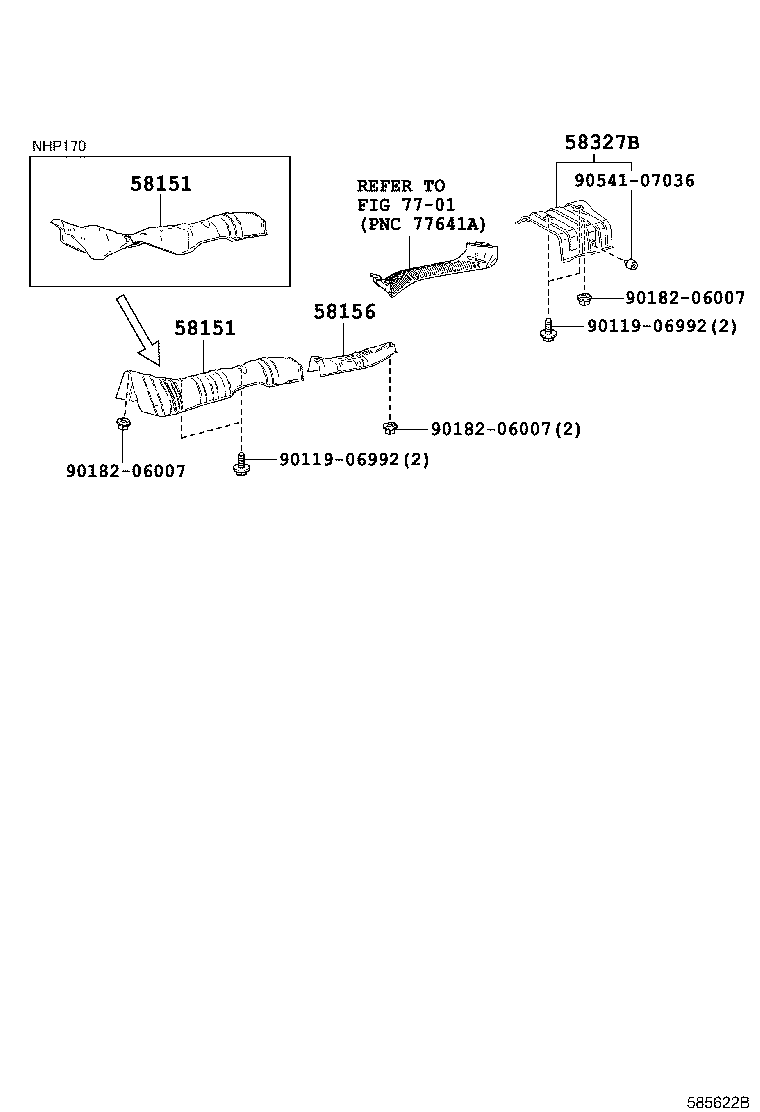

diagram 58151 58151 58156 58327B 7701 9011906992 9011906992 9018206007 9018206007 9018206007 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58153-52130

NSP170

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58153-52130

NSP170

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-52030

NHP170,NSP170

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52100

NHP170,NSP170

 1
Common parts
90119-06992
90182-06007
90541-07036
Linked diagrams
7701
