NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)

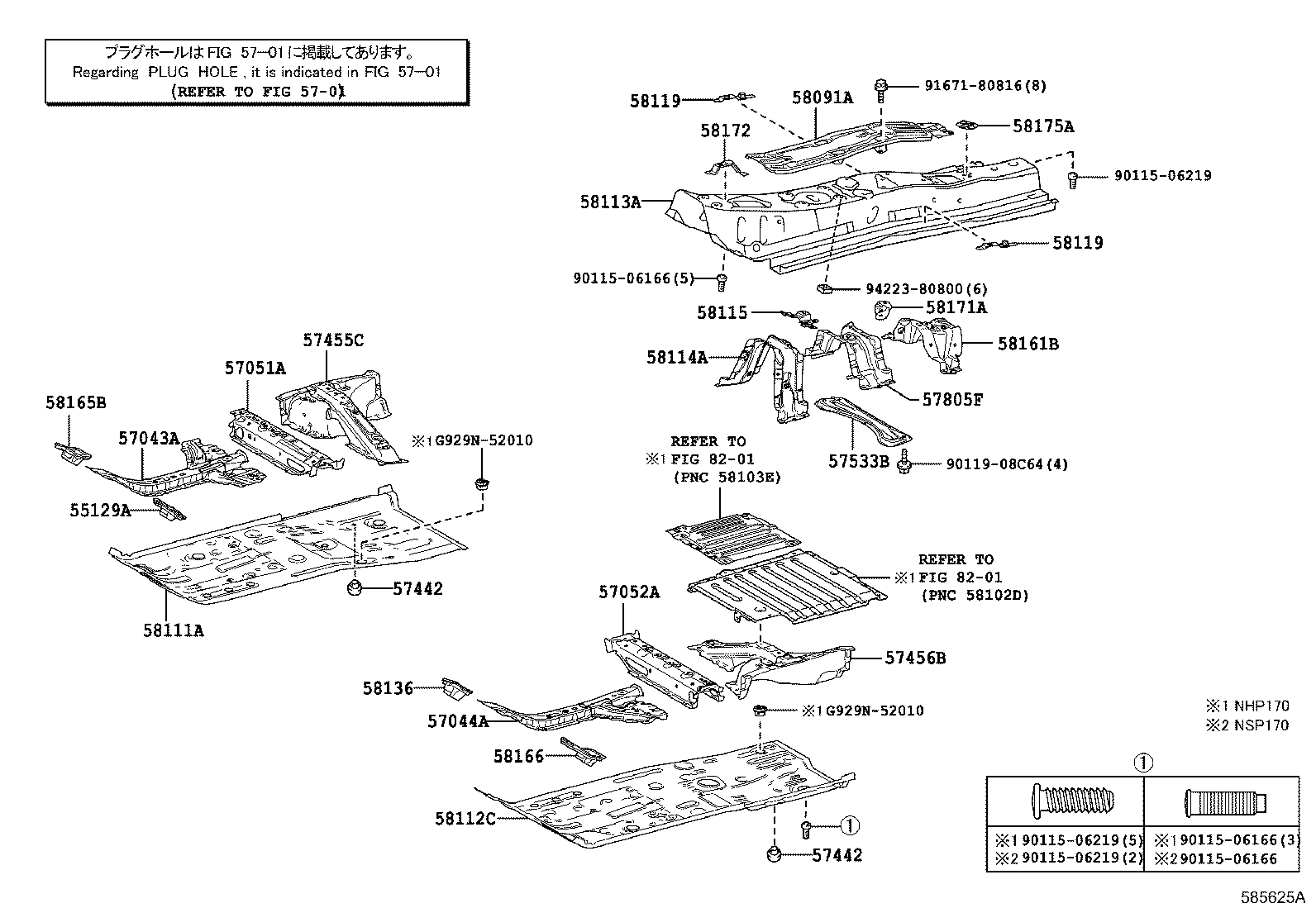

ILLUST NO. 1 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129A - COVER, FRONT FLOOR HOLE | ||||
| 55129-52051 |
NHP170,NSP170 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52040 |
NHP170,NSP170 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52060 |
NHP170,NSP170 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52060 |
NHP170,NSP170 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52050 |
NHP170,NSP170 |
1 | ||
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-28030 |
NHP170,NSP170 |
2 | ||
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-28030 |
NHP170,NSP170 |
2 | ||
| 57455C - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH | ||||
| 58105-52040 |
NHP170,NSP170 |
1 | ||
| 57456B - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 58106-52030 |
NHP170,NSP170 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-52030 |
NHP170,NSP170 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-52131 |
NHP170,NSP170 |
1 | ||
| 58091A - REINFORCEMENT SET, BODY FITTING | ||||
| 58091-52060 |
NHP170,NSP170 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52290 |
NHP170,NSP170 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52924 |
NSP170 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52931 |
NHP170,NSP170 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52071 |
NHP170,NSP170 |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-52030 |
NHP170,NSP170 |
1 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-52040 |
NHP170,NSP170 |
2 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-52040 |
NHP170,NSP170 |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 55139-52021 |
NHP170,NSP170 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52140 |
NHP170,NSP170 |
1 | ||
| 58161-52141 |
NHP170,NSP170 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-52011 |
NHP170,NSP170 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-52011 |
NHP170,NSP170 |
1 | ||
| 58171A - REINFORCE, PARKING BRAKE BASE | ||||
| 58171-52090 |
NHP170,NSP170 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52020 |
NHP170,NSP170 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-08C64 | ||||
| 91671-80816 | ||||
| 94223-80800 | ||||
| G929N-52010 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 8201 | ||||

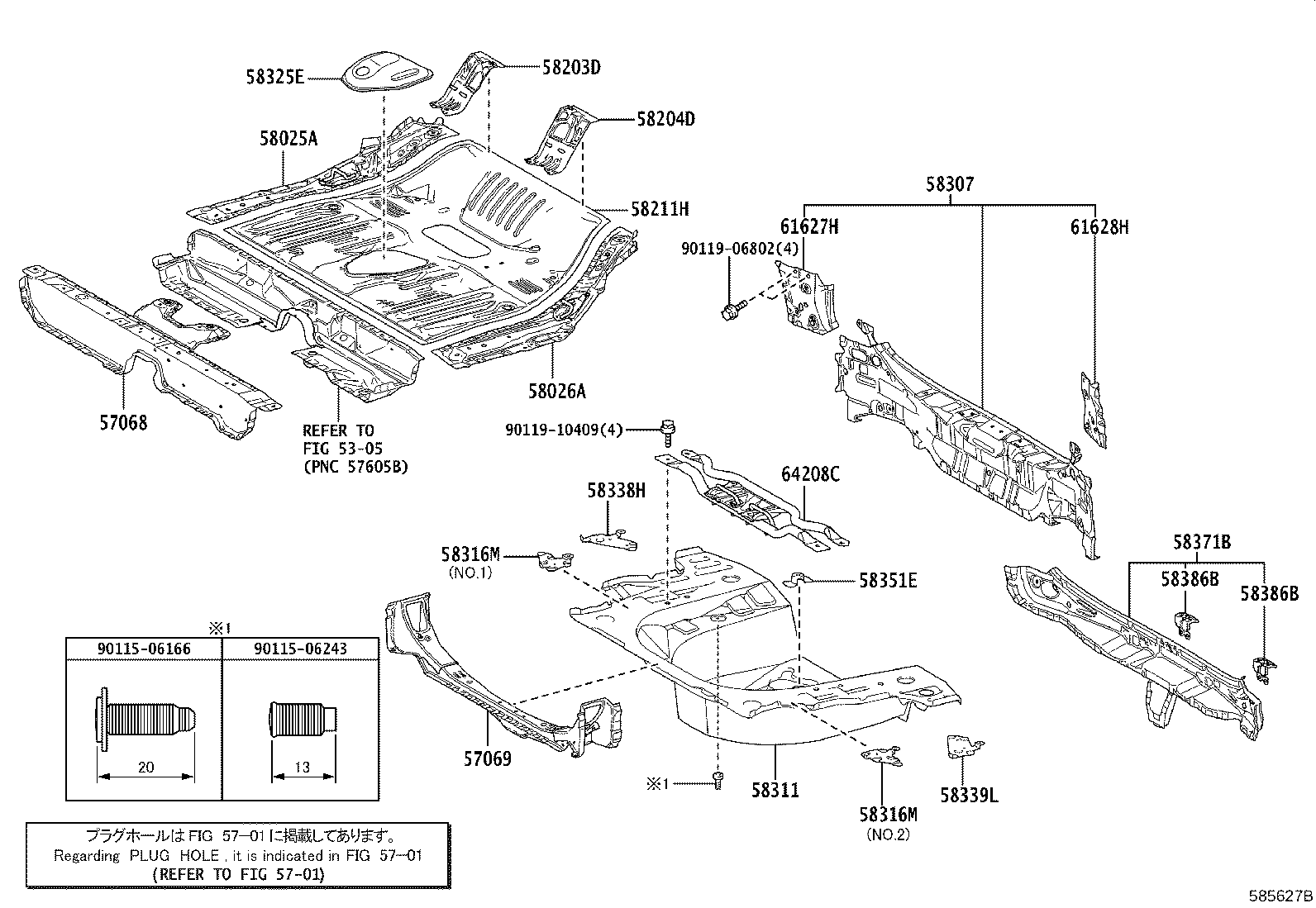

ILLUST NO. 2 OF 2(1506- )NSP170..07S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-52040 |
NHP170,NSP170 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-52041 |
NHP170,NSP170 |
1 | ||
| 57069-52040 |
NHP170,NSP170 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52050 |
NHP170,NSP170 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-52070 |
NHP170,NSP170 |
1 | ||
| 58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH | ||||
| 58203-52110 |
NHP170,NSP170 |
1 | ||
| 58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH | ||||
| 58204-52090 |
NHP170,NSP170 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-52300 |
NHP170,NSP170 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58302-52160 |
NSP170 |
1 | ||
| 58302-52160 |
NSP170 |
1 | ||
| 58302-52160 |
NSP170 SPARE TIRE-T105/70D16 |
1 | ||
| 58302-52162 |
NHP170,NSP170 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52911 |
NSP170 |
1 | ||
| 58316M - RETAINER, REAR SEAT ANCHOR | ||||
| 58317-52030 |
NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 58318-52010 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 58316M - RETAINER, REAR SEAT ANCHOR | ||||
| 58317-52030 |
NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 58318-52010 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52090 |
NHP170,NSP170 |
1 | ||
| 58338H - REINFORCEMENT, REAR FLOOR PAN, NO.2 RH | ||||
| 58338-52040 |
NHP170,NSP170 |
1 | ||
| 58339L - REINFORCEMENT, REAR FLOOR PAN, NO.2 LH | ||||
| 58339-52090 |
NHP170,NSP170 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-33010 |
NSP170 SPARE TIRE-T105/70D16 |
1 | ||
| 58351-33010 |
NSP170 |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58307-52670 |
NHP170,NSP170 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
NHP170,NSP170 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
NHP170,NSP170 |
2 | ||
| 61627H - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-52030 |
NHP170,NSP170 |
1 | ||
| 61628H - EXTENSION, QUARTER PANEL, REAR LWR LH | ||||
| 61628-52030 |
NHP170,NSP170 |
1 | ||
| 64208C - MEMBER SUB-ASSY, ROOM PARTITION CROSS | ||||
| 64208-52031 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06243 | ||||
| 90119-06802 | ||||
| 90119-10409 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 5701 | ||||
