NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

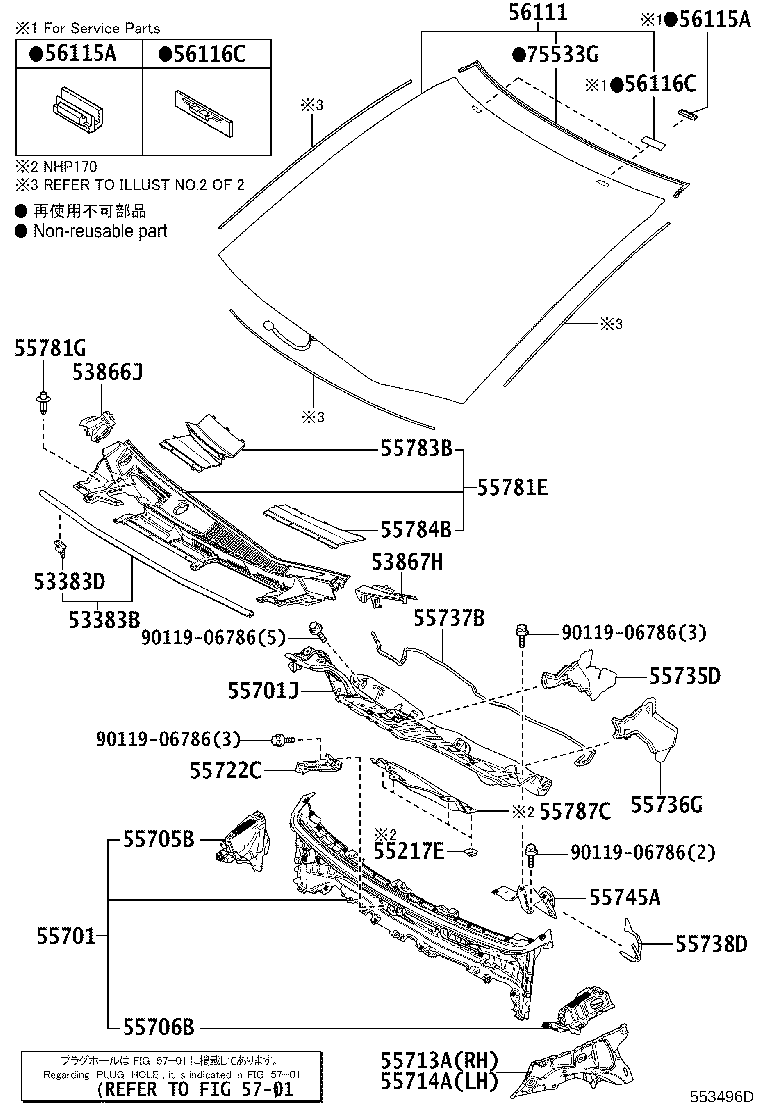

ILLUST NO. 1 OF 2(1506- )

Click highlighted areas on diagram

diagram 53383B 53383D 53866J 53867H 55217E 55701 55701J 55705B 55706B 55713A 55714A 55722C 55735D 55736G 55737B 55738D 55745A 55781E 55781G 55783B 55784B 55787C 56111 56115A 56115A 56116C 56116C 5701 75533G 9011906786 9011906786 9011906786 9011906786
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-52161

NHP170,NSP170

 1
53383-52160

NHP170,NSP170

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

NHP170,NSP170

 7
67867-50100

NHP170,NSP170

RED

 2
67867-12150

NHP170,NSP170

YELLOW OR WHITE

 4
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-52150

NHP170,NSP170

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-52170

NHP170,NSP170

 1
55701 - PANEL SUB-ASSY, COWL
55700-52400

NHP170,NSP170

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-52341

NSP170

 1
55701-52340

NSP170

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-52170

NHP170,NSP170

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-52170

NHP170,NSP170

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-52170

NHP170,NSP170

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-52170

NHP170,NSP170

 1
55722C - BRACE, COWL TOP TO COWL, INNER
55722-52090

NHP170,NSP170

 1
55735D - SEAL, FRONT AIR SHUTTER, RH
55735-52130

NHP170,NSP170

 1
55736G - SEAL, FRONT AIR SHUTTER, LH
55736-52080

NHP170,NSP170

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-52220

NHP170,NSP170

 1
55737-52221

NHP170,NSP170

 1
55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55737-52230

NHP170,NSP170

 1
55745A - REINFORCEMENT, COWL TOP, INNER
55746-52140

NHP170,NSP170

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-52410

NHP170,NSP170

 1
55708-52412

NHP170,NSP170

 1
55708-52411

NHP170,NSP170

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

NHP170,NSP170

BLACK

 2
90467-07076C7

NHP170,NSP170

BLACK

 2
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-52351

NHP170,NSP170

 1
55783-52352

NHP170,NSP170

 1
55783-52350

NHP170,NSP170

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-52141

NHP170,NSP170

 1
55784-52140

NHP170,NSP170

 1
56111 - GLASS, WINDSHIELD
56101-52A80

NSP170

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NHP170,NSP170

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NHP170,NSP170

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NHP170,NSP170

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NHP170,NSP170

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-52280

NHP170,NSP170

 1
Common parts
90119-06786
Linked diagrams
5701

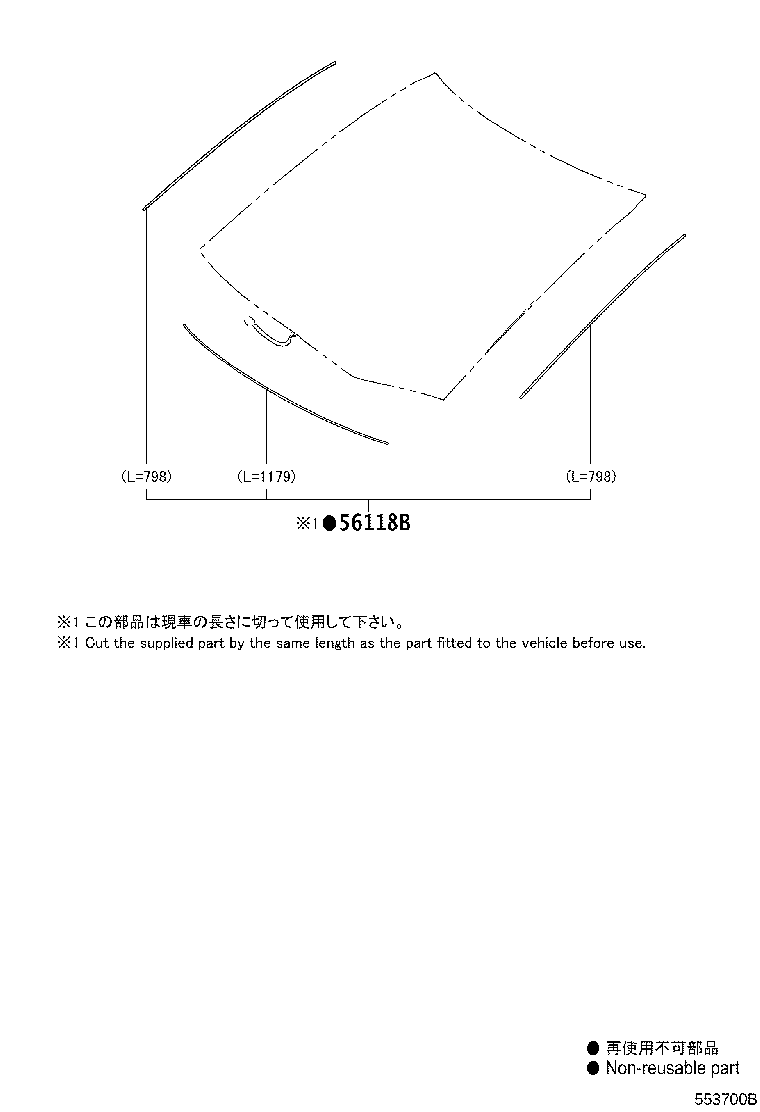

ILLUST NO. 2 OF 2(1506- )

Click highlighted areas on diagram

WINDSHIELD ADHESIVE DAM

diagram 56118B
Part # Description Qty Price
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-64010

NHP170,NSP170

*D,L=1179

 1
