NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)

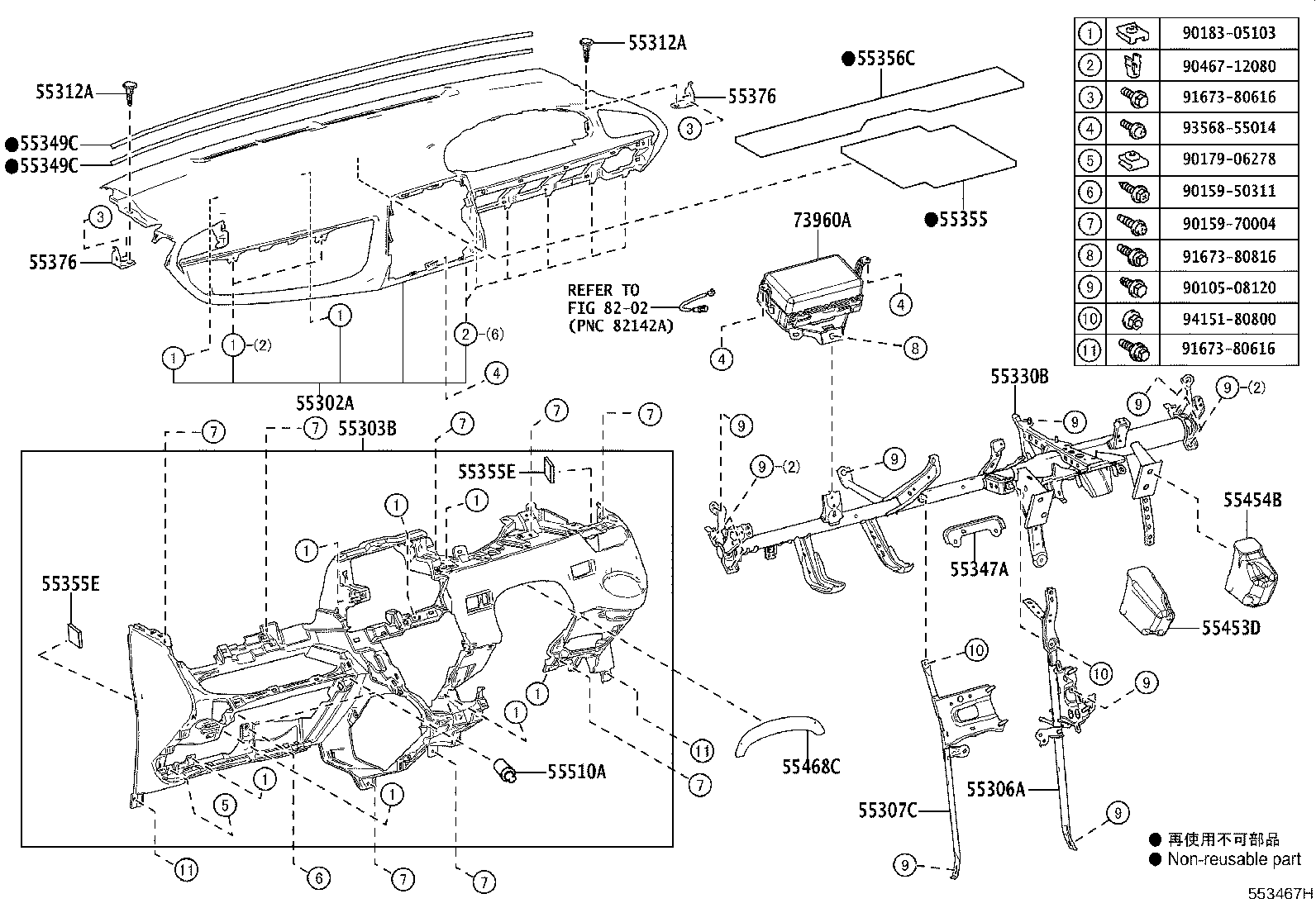

ILLUST NO. 1 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52200C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52330C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55303-52330A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52330 |
NHP170,NSP170 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-52080 |
NHP170,NSP170 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NHP170,NSP170 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NHP170,NSP170 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-52760 |
NHP170,NSP170 |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-52130 |
NHP170,NSP170 |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52260 |
NHP170,NSP170 |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52260 |
NHP170,NSP170 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52240 |
NHP170,NSP170 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-53050 |
NHP170,NSP170 |
2 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-53050 |
NHP170,NSP170 |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52270 |
NHP170,NSP170 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-12160 |
NHP170,NSP170 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-12160 |
NHP170,NSP170 |
2 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52170 |
NHP170,NSP170 |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52170 |
NHP170,NSP170 |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52160 |
NHP170,NSP170 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 55557-78010 |
NHP170,NSP170 |
2 | ||
| 55557-52030 |
NHP170,NSP170 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52240 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-50311 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

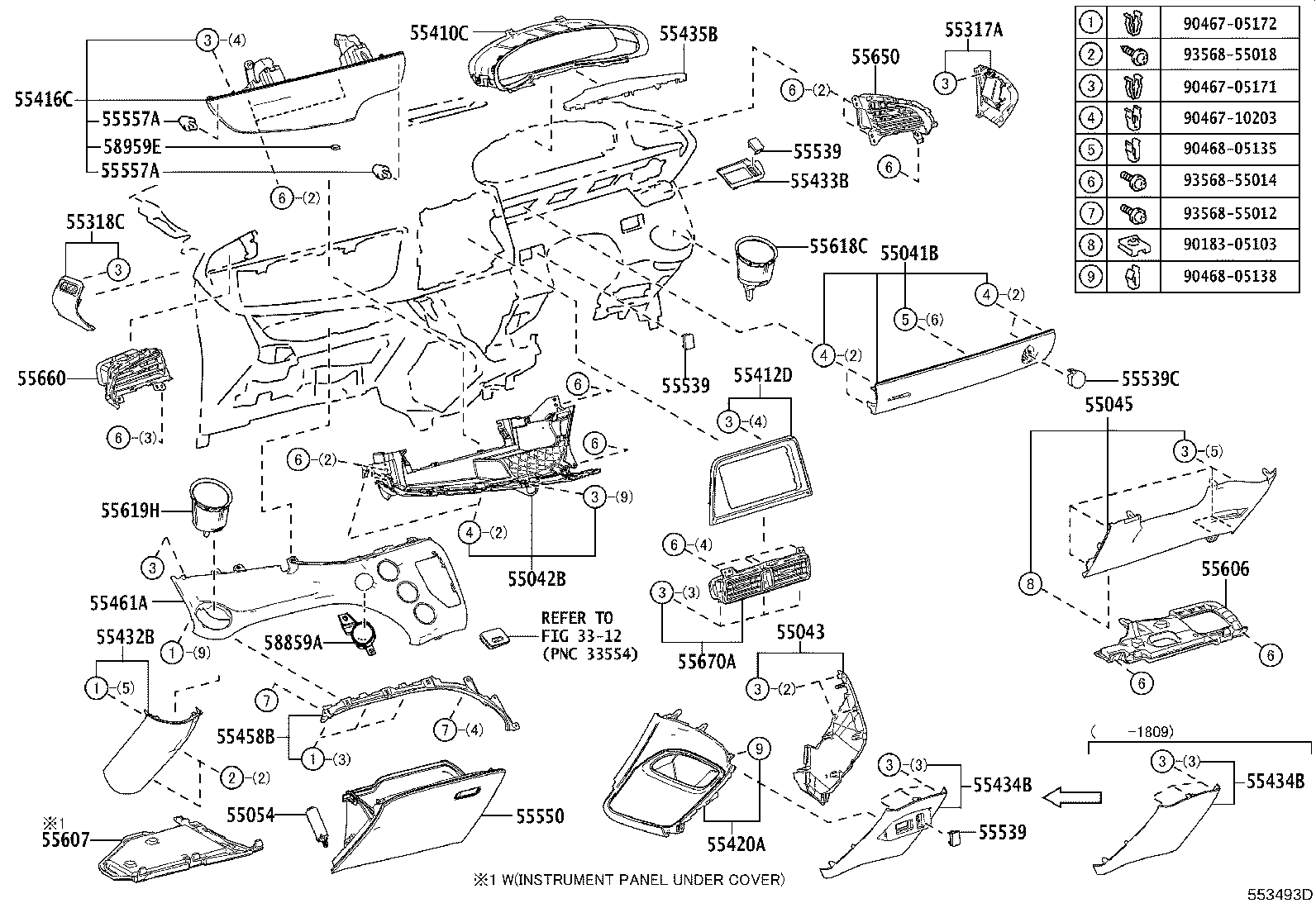

ILLUST NO. 2 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-52120C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-52090C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55043 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55044-52040A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55044-52040C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-52050A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55045-52050C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NHP170,NSP170 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-52070C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-52150C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-52310C3 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-52430C1 |
NHP170,NSP170..Q PIANOBLACK,TRIM0#,2# |
1 | ||
| 55412-52500C1 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-52200C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-52110A1 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55420-52110C1 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-52130C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55432-52130A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-52150A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55433-52150C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52200A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55434-52200C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52200A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55434-52200C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-52130C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-52070C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55458-52070A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55461A - ORNAMENT, INSTRUMENT PANEL | ||||
| 55461-52150A0 |
NSP170..N FROMAGE,TRIM0# |
1 | ||
| 55461-52190C0 |
NHP170;NSP170..Q BLACK,TRIM2# |
1 | ||
| 55461-52190A0 |
NHP170;NSP170..Q FROMAGE,TRIM0# |
1 | ||
| 55461-52150C0 |
NSP170..N BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
NHP170,NSP170 BLACK |
1 | ||
| 55539-52060C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
NHP170,NSP170 BLACK |
1 | ||
| 55539-52060C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
NHP170,NSP170 BLACK |
1 | ||
| 55539-52060C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55539-52040C0 |
NHP170,NSP170..N SMART ENTRY-WITH(FRONT DOOR & BACK DOOR),BLACK,TRIM0#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52370C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 55550-52370A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
NHP170,NSP170 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
NHP170,NSP170 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-52080 |
NHP170,NSP170 |
1 | ||
| 55618C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55618-52100C2 |
NHP170,NSP170..Q BLACK,TRIM2# |
1 | ||
| 55618-52110A2 |
NHP170,NSP170..N FROMAGE,TRIM0# |
1 | ||
| 55618-52100A2 |
NHP170,NSP170..Q FROMAGE,TRIM0# |
1 | ||
| 55618-52110C2 |
NHP170,NSP170..N BLACK,TRIM2# |
1 | ||
| 55619H - HOLDER, INSTRUMENT PANEL CUP, NO.2 | ||||
| 55619-52070C2 |
NHP170,NSP170..N BLACK,TRIM2# |
1 | ||
| 55619-52060C2 |
NHP170,NSP170..Q BLACK,TRIM2# |
1 | ||
| 55619-52060A2 |
NHP170,NSP170..Q FROMAGE,TRIM0# |
1 | ||
| 55619-52070A2 |
NHP170,NSP170..N FROMAGE,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52390B2 |
NHP170,NSP170..Q SILVER,TRIM0#,2# |
1 | ||
| 55650-52400C1 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-52160B2 |
NHP170,NSP170..Q SILVER,TRIM0#,2# |
1 | ||
| 55660-52170C1 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-52200C1 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55670-52190C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 58859A - HOOK, CONSOLE BOX HOLDER | ||||
| 58859-52020A0 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 58859-52020C0 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 3312 | ||||
