NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

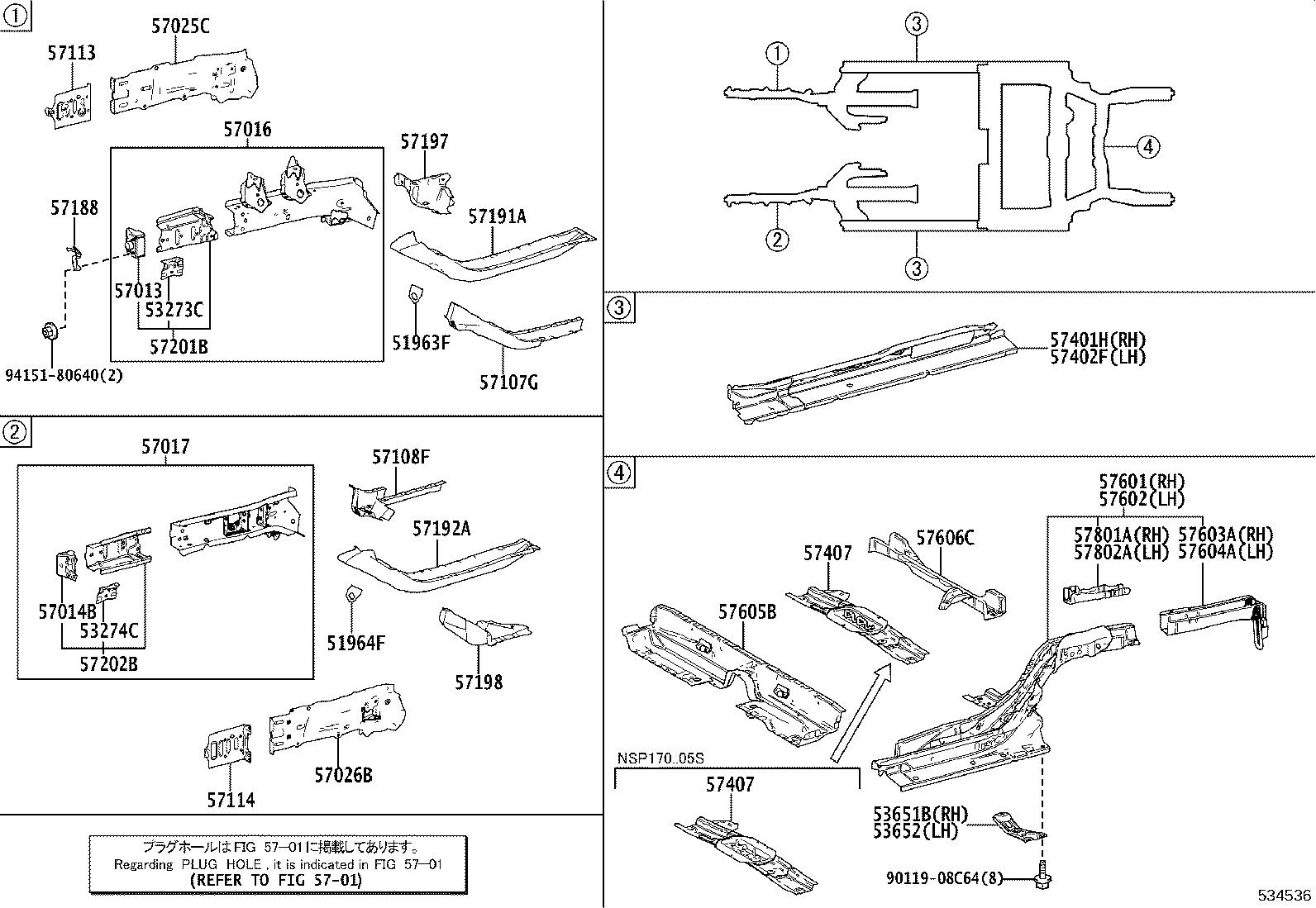

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963F - HOOK, TRANSPORT | ||||
| 51963-52050 |
NHP170,NSP170 |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51963-52050 |
NHP170,NSP170 |
1 | ||
| 53273C - REINFORCEMENT, RADIATOR SUPPORT, RH | ||||
| 53273-52030 |
NHP170,NSP170 |
1 | ||
| 53274C - REINFORCEMENT, RADIATOR SUPPORT, LH | ||||
| 53274-52020 |
NHP170,NSP170 |
1 | ||
| 53651B - BRACE, REAR SUSPENSION, UPPER RH | ||||
| 53651-52020 |
NHP170,NSP170 |
1 | ||
| 53652 - BRACE, REAR SUSPENSION, UPPER LH | ||||
| 53652-52010 |
NHP170,NSP170 |
1 | ||
| 57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-52040 |
NHP170,NSP170 |
1 | ||
| 57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-52030 |
NHP170,NSP170 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-52090 |
NHP170,NSP170 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-52100 |
NHP170,NSP170 |
1 | ||
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-52010 |
NHP170,NSP170 |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-52010 |
NHP170,NSP170 |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-52030 |
NHP170,NSP170 |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-52030 |
NHP170,NSP170 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-52010 |
NHP170,NSP170 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-52010 |
NHP170,NSP170 |
1 | ||
| 57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH | ||||
| 57188-52020 |
NHP170,NSP170 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-52020 |
NHP170,NSP170 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-52020 |
NHP170,NSP170 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-52030 |
NHP170,NSP170 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-52030 |
NHP170,NSP170 |
1 | ||
| 57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57201-52020 |
NHP170,NSP170 |
1 | ||
| 57202B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57202-52020 |
NHP170,NSP170 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-52230 |
NHP170,NSP170 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-52250 |
NHP170,NSP170 |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-52050 |
NHP170,NSP170 |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-52050 |
NHP170,NSP170 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-52320 |
NHP170,NSP170 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-52380 |
NHP170,NSP170 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-52110 |
NHP170,NSP170 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-52190 |
NHP170,NSP170 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-52220 |
NHP170,NSP170 |
1 | ||
| 57605-52221 |
NHP170,NSP170 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-52220 |
NHP170,NSP170 |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57801-52160 |
NHP170,NSP170 |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57802-52160 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 5701 | ||||
