NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

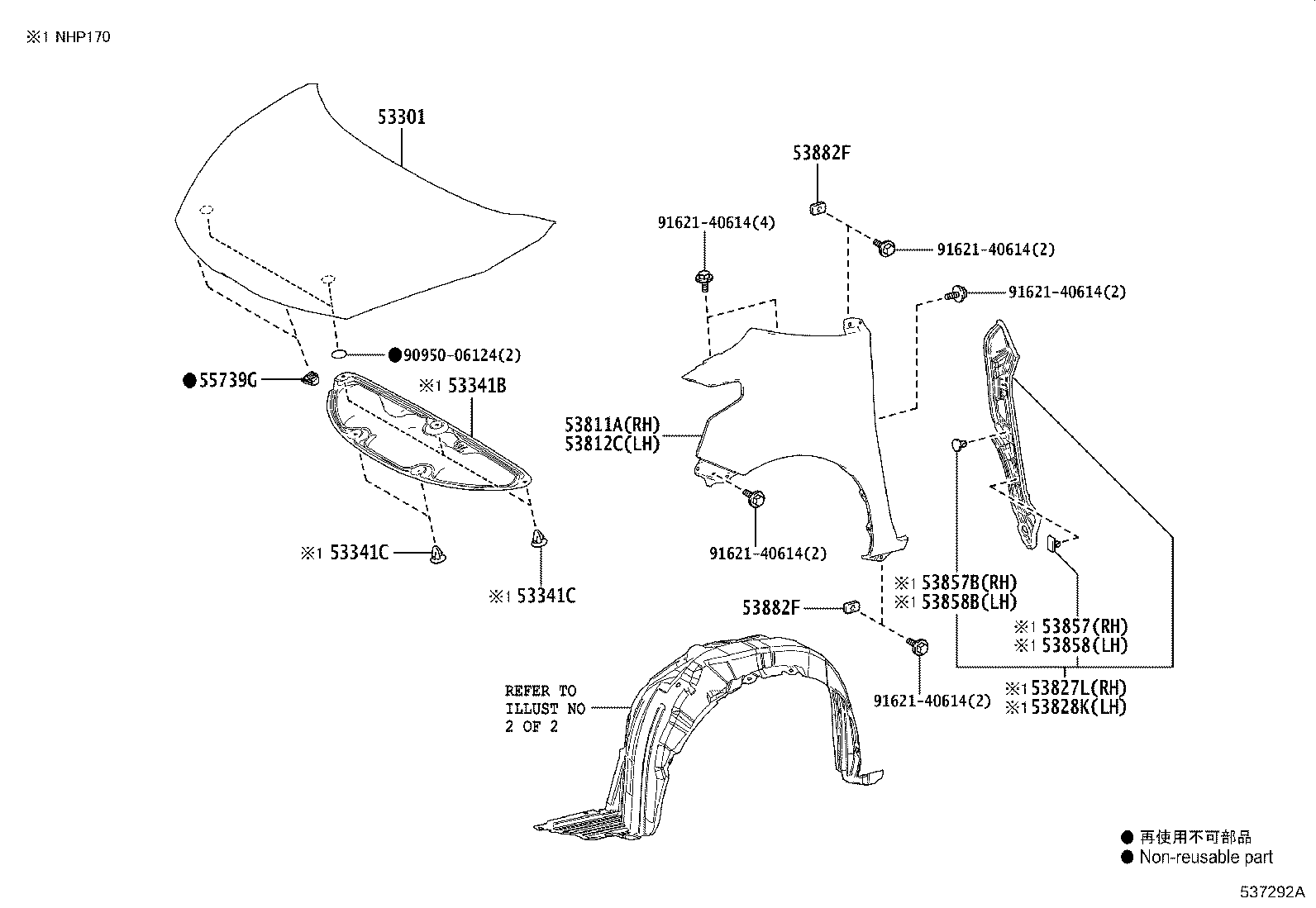

ILLUST NO. 1 OF 2(1506- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53341C 53811A 53812C 53827L 53828K 53857 53857B 53858 53858B 53882F 53882F 55739G 9095006124 9162140614 9162140614 9162140614 9162140614 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-52390

NHP170,NSP170

 1
53811A - PANEL, FRONT FENDER, RH
53811-52480

NHP170,NSP170

 1
53812C - PANEL, FRONT FENDER, LH
53812-52480

NHP170,NSP170

 1
53882F - SEAL, FRONT FENDER
53882-16030

NHP170,NSP170

 4
53882F - SEAL, FRONT FENDER
53882-16030

NHP170,NSP170

 4
55739G - STOPPER, HOOD
55738-52050

NHP170,NSP170

 2
Common parts
90950-06124
91621-40614

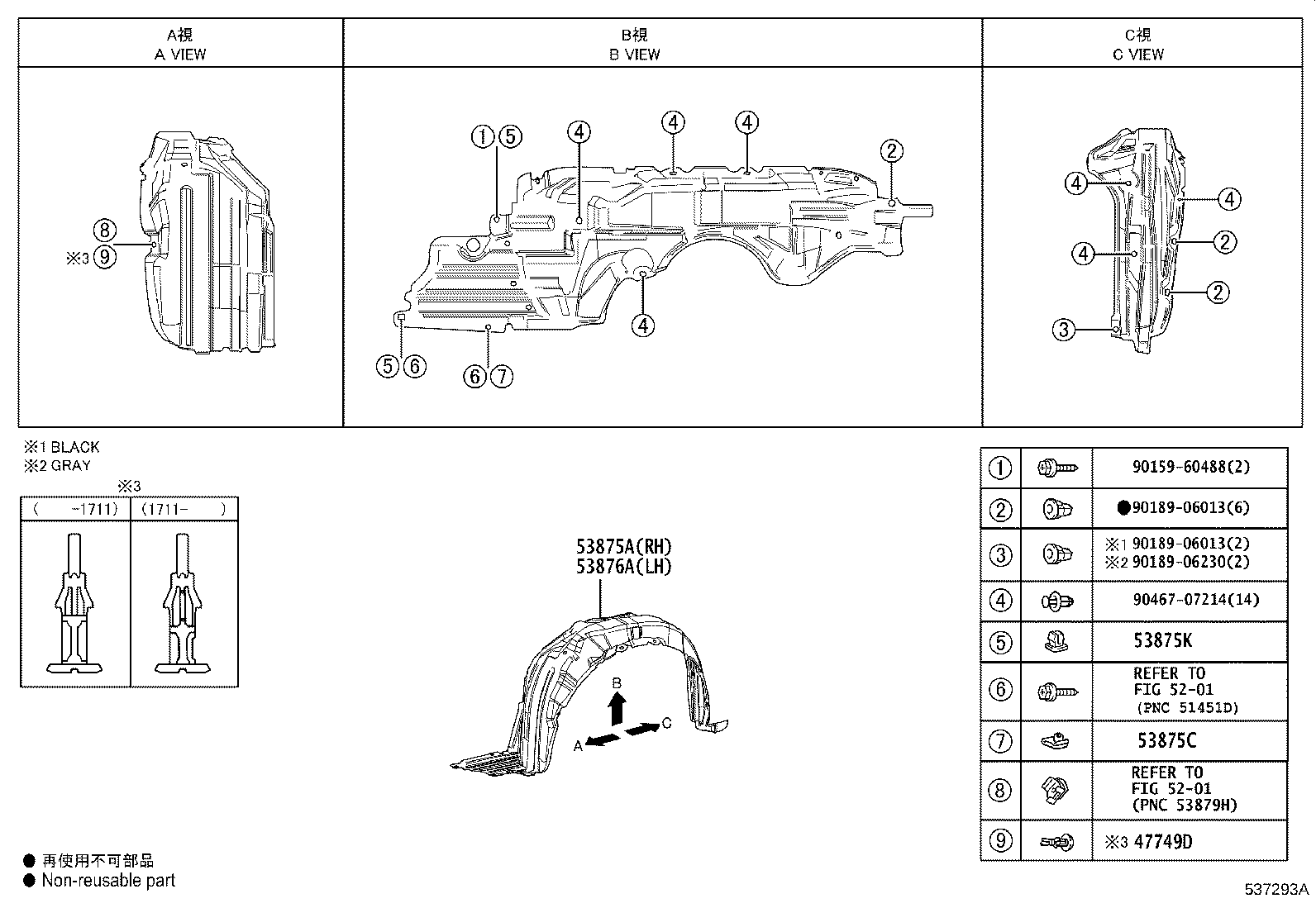

ILLUST NO. 2 OF 2(1506- )

Click highlighted areas on diagram

FENDER LINER

diagram 47749D 5201 5201 53875A 53875C 53875K 53876A 9015960488 9018906013 9018906013 9018906230 9046707214
Part # Description Qty Price
47749D - CLIP, PIN HOLD
47749-50090

NHP170,NSP170

 2
47749-30030

NHP170,NSP170

 2
53875A - LINER, FRONT FENDER, RH
53875-52310

NHP170,NSP170

 1
53875C - CLIP, FRONT FENDER LINER
90467-05128

NHP170,NSP170

 2
53875K - GROMMET, SCREW
90189-06193

NHP170,NSP170

 4
53876A - LINER, FRONT FENDER, LH
53876-52330

NHP170,NSP170

 1
Common parts
90159-60488
90189-06013
90189-06230
90467-07214
Linked diagrams
5201
