NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

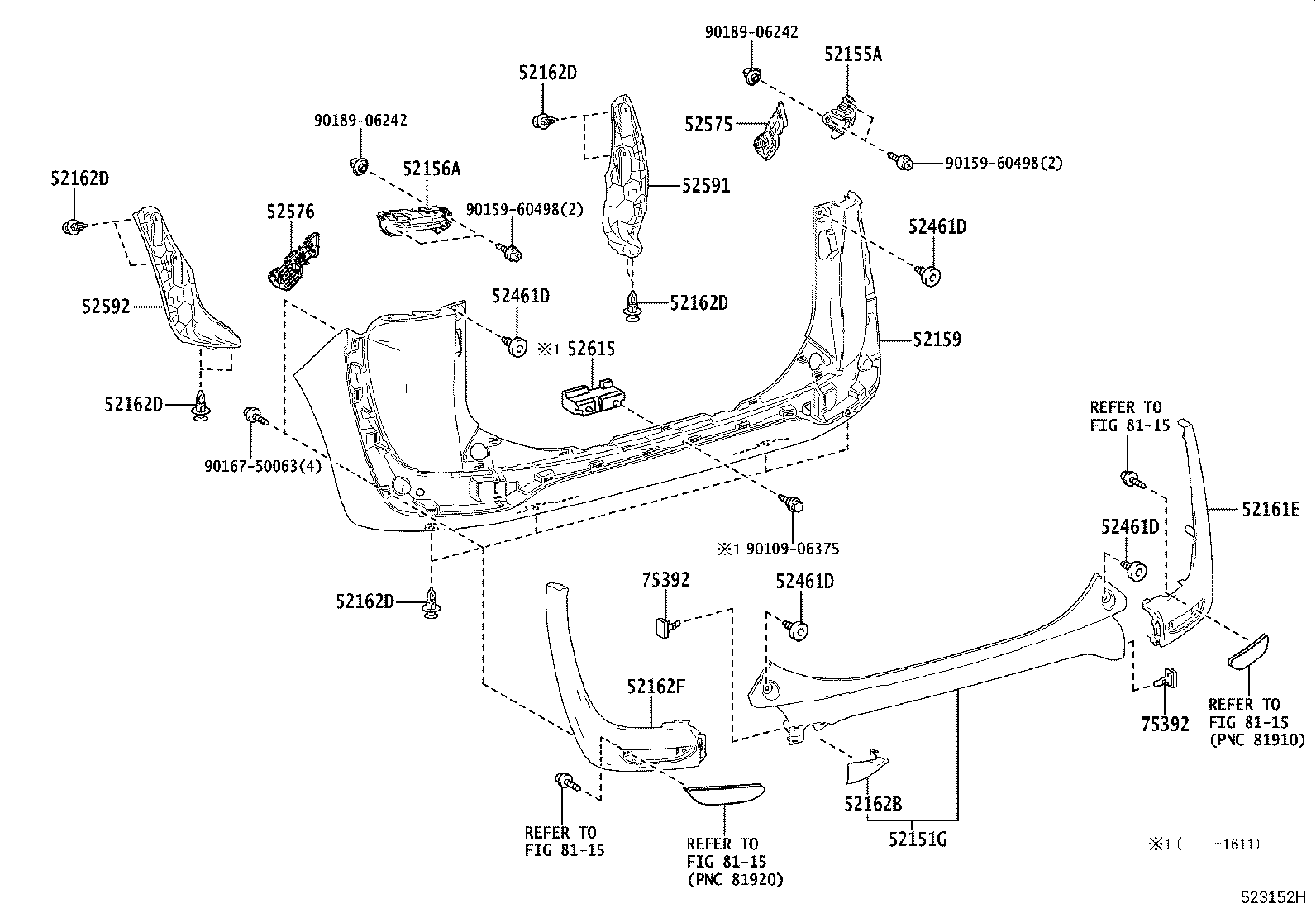

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-52010 |
NHP170,NSP170 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-52130 |
NHP170,NSP170 |
1 | ||
| 52155-52131 |
NHP170,NSP170 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-52130 |
NHP170,NSP170 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52978 |
NHP170,NSP170 PAINT REQ. |
1 | ||
| 52161E - EXTENSION, REAR BUMPER SIDE, RH | ||||
| 52161-52170 |
NHP170,NSP170 |
1 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-52180 |
NHP170,NSP170 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP170,NSP170 |
12 | ||
| 52162F - EXTENSION, REAR BUMPER SIDE, LH | ||||
| 52162-52150 |
NHP170,NSP170 |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NHP170,NSP170 |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NHP170,NSP170 |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NHP170,NSP170 |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NHP170,NSP170 |
4 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52200 |
NHP170,NSP170 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52180 |
NHP170,NSP170 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52360 |
NHP170,NSP170 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52350 |
NHP170,NSP170 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-52080 |
NHP170,NSP170 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NHP170,NSP170 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NHP170,NSP170 |
2 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90159-60498 | ||||
| 90167-50063 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 8115 | ||||
