NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506-1809)

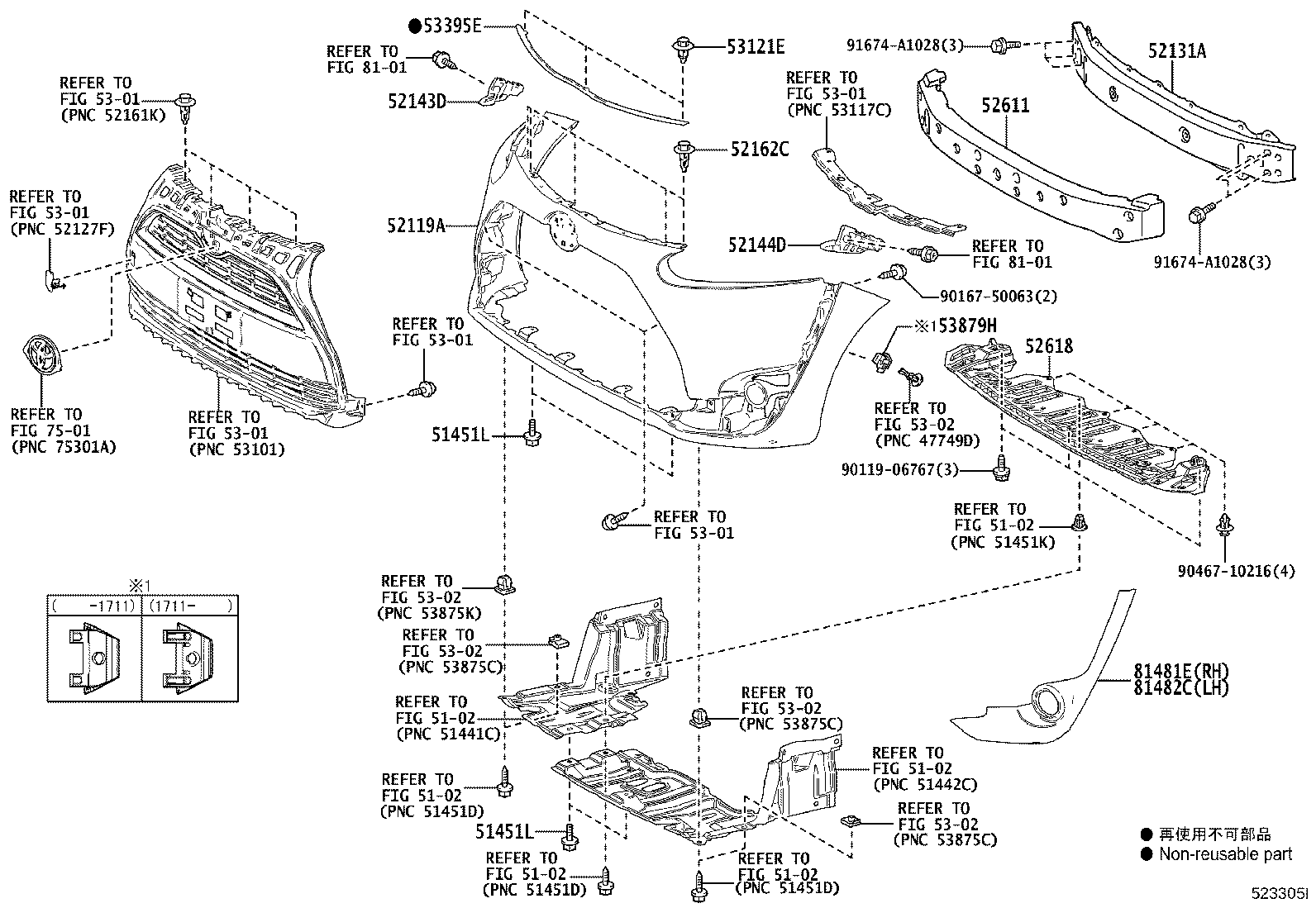

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06991 |
NHP170,NSP170 |
4 | ||
| 51451L - BOLT, NO.1 | ||||
| 90119-06991 |
NHP170,NSP170 |
4 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-5A951 |
NHP170,NSP170..Q PAINT REQ.,HEADLAMP-LED |
1 | ||
| 52119-5A950 |
NHP170,NSP170 PAINT REQ. |
1 | ||
| 52119-5A956 |
NHP170,NSP170 PAINT REQ. |
1 | ||
| 52119-5A957 |
NHP170,NSP170..Q PAINT REQ.,HEADLAMP-LED |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52250 |
NHP170,NSP170 |
1 | ||
| 52143D - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-52220 |
NHP170,NSP170 |
1 | ||
| 52144D - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-52230 |
NHP170,NSP170 |
1 | ||
| 52162C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NHP170,NSP170 |
5 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-52210 |
NHP170,NSP170 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-52100 |
NHP170,NSP170 |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-05063C0 |
NHP170,NSP170 BLACK |
3 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-52080 |
NHP170,NSP170 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
NHP170,NSP170 |
2 | ||
| 53879-30060 |
NHP170,NSP170 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52580 |
NHP170,NSP170 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52490 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90167-50063 | ||||
| 90467-10216 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7501 | ||||
| 8101 | ||||
