NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

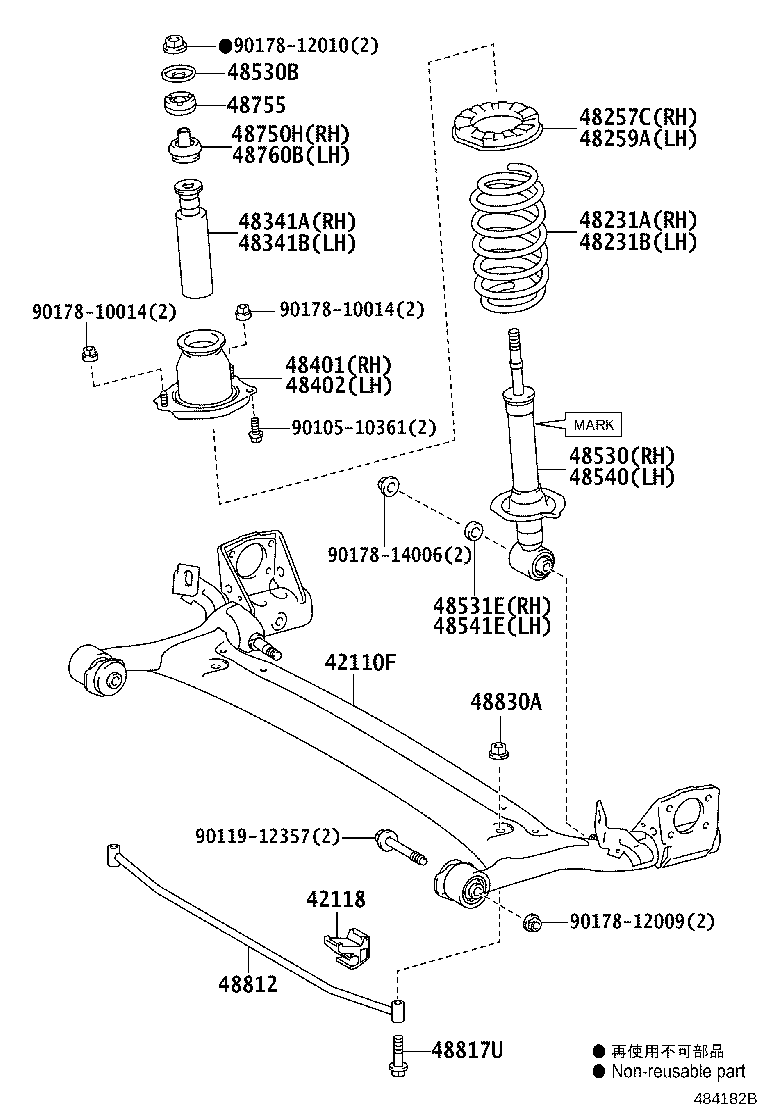

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-52310 |
NHP170,NSP170 |
1 | ||
| 42118 - DAMPER, REAR AXLE BEAM | ||||
| 42118-68020 |
NHP170,NSP170 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-52J40 |
NSP170 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-52J40 |
NSP170 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-32090 |
NHP170,NSP170 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-32090 |
NHP170,NSP170 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-47010 |
NHP170,NSP170 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-47010 |
NHP170,NSP170 |
1 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48401-32020 |
NHP170,NSP170 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48403-32010 |
NHP170,NSP170 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-52J00 |
NHP170,NSP170 MARK 48530-52J00 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
NHP170,NSP170 |
2 | ||
| 48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90201-14034 |
NHP170,NSP170 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-52J00 |
NHP170,NSP170 MARK 48530-52J00 |
1 | ||
| 48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90201-14034 |
NHP170,NSP170 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-47010 |
NHP170,NSP170 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-63010 |
NHP170,NSP170 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-47010 |
NHP170,NSP170 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-68040 |
NHP170,NSP170 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-16085 |
NHP170,NSP170 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21641 |
NHP170,NSP170 |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90119-12357 | ||||
| 90178-10014 | ||||
| 90178-12009 | ||||
| 90178-12010 | ||||
| 90178-14006 | ||||
