NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

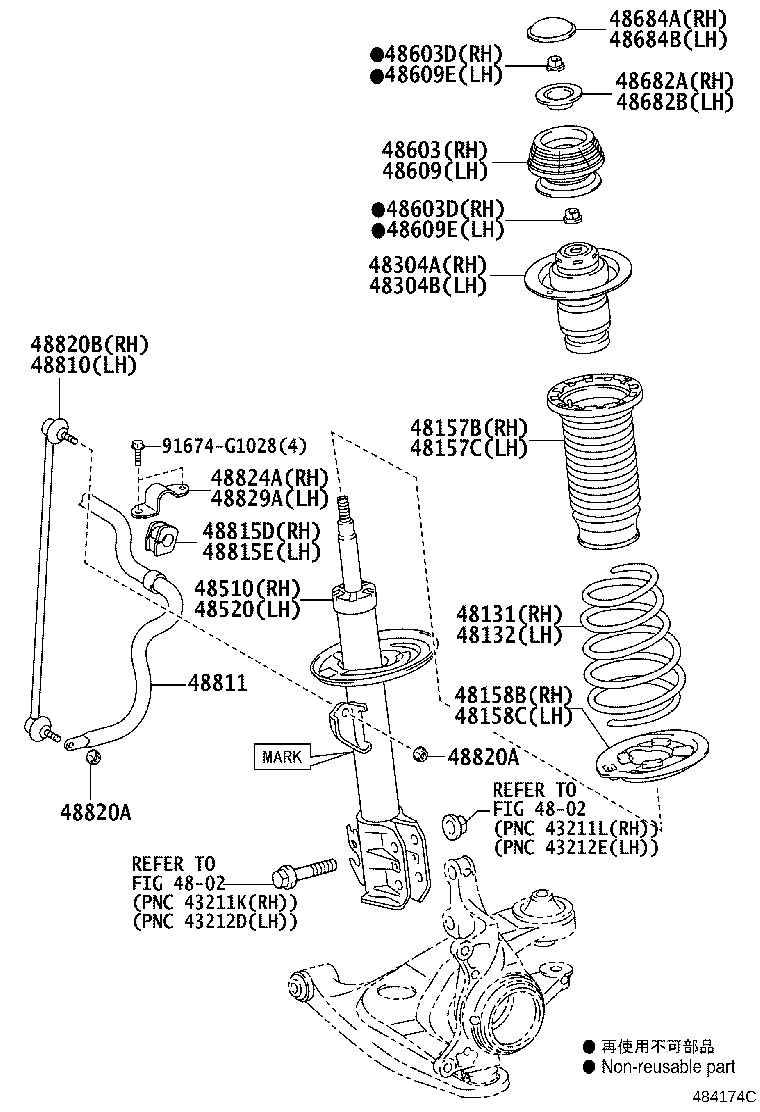

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52L30 |
NSP170 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52L30 |
NSP170 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52040 |
NHP170,NSP170 |
1 | ||
| 48157-52050 |
NHP170,NSP170 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52050 |
NHP170,NSP170 |
1 | ||
| 48157-52040 |
NHP170,NSP170 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-52010 |
NHP170,NSP170 |
1 | ||
| 48158-52020 |
NHP170,NSP170 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-52020 |
NHP170,NSP170 |
1 | ||
| 48158-52010 |
NHP170,NSP170 |
1 | ||
| 48304A - SEAT SUB-ASSY, BUMPER, RH | ||||
| 48304-52101 |
NHP170,NSP170 |
1 | ||
| 48304B - SEAT SUB-ASSY, BUMPER, LH | ||||
| 48304-52101 |
NHP170,NSP170 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-52K41 |
NHP170,NSP170 MARK 48510-52K41 |
1 | ||
| 48510-52K40 |
NHP170,NSP170 MARK 48510-52K40 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-52740 |
NHP170,NSP170 MARK 48520-52740 |
1 | ||
| 48520-52741 |
NHP170,NSP170 MARK 48520-52741 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52100 |
NHP170,NSP170 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NHP170,NSP170 |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NHP170,NSP170 |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52100 |
NHP170,NSP170 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NHP170,NSP170 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NHP170,NSP170 |
2 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52040 |
NHP170,NSP170 |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52040 |
NHP170,NSP170 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
NHP170,NSP170 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
NHP170,NSP170 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-52030 |
NHP170,NSP170 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-52290 |
NHP170,NSP170 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-52140 |
NHP170,NSP170 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-52140 |
NHP170,NSP170 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
NHP170,NSP170 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
NHP170,NSP170 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-52030 |
NHP170,NSP170 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-52060 |
NHP170,NSP170 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-52060 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 91674-G1028 | ||||
| Linked diagrams | ||||
| 4802 | ||||
