NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1506- )NSP170

Click highlighted areas on diagram

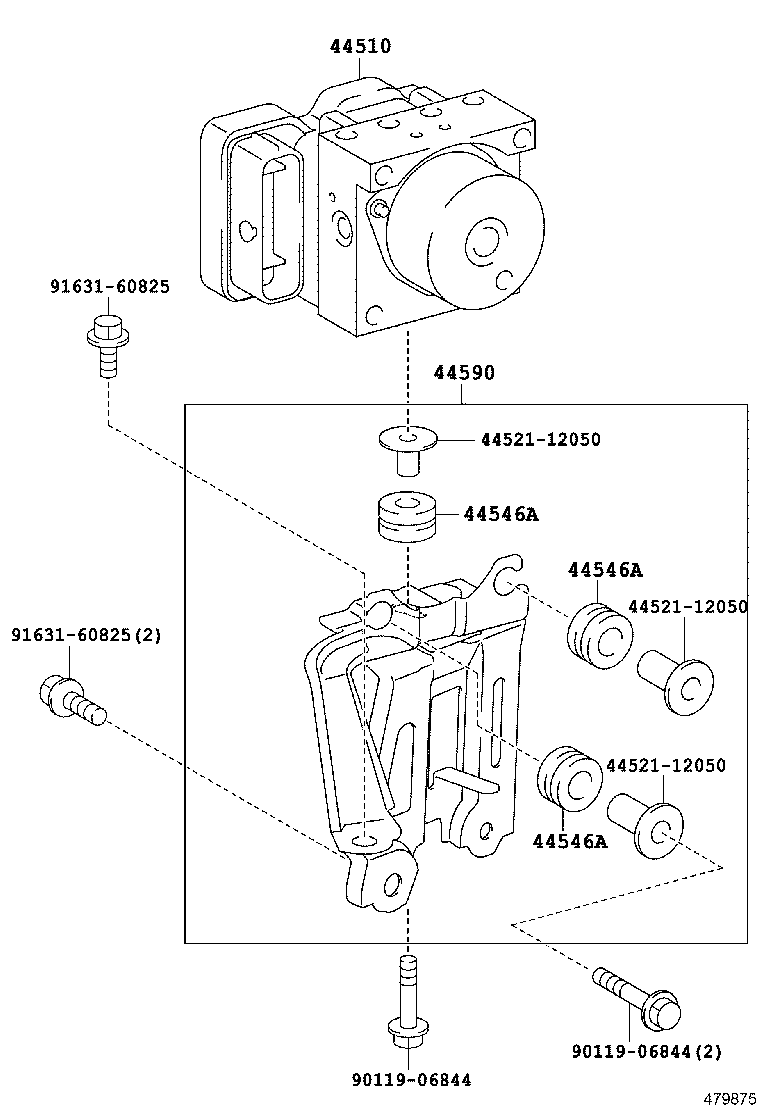

BRAKE ACTUATOR

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52M30

NSP170

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NSP170

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NSP170

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NSP170

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52251

NSP170

 1
44590-52250

NSP170

 1
Common parts
44521-12050
90119-06844
91631-60825

ILLUST NO. 1 OF 2(1506- )NSP170

Click highlighted areas on diagram

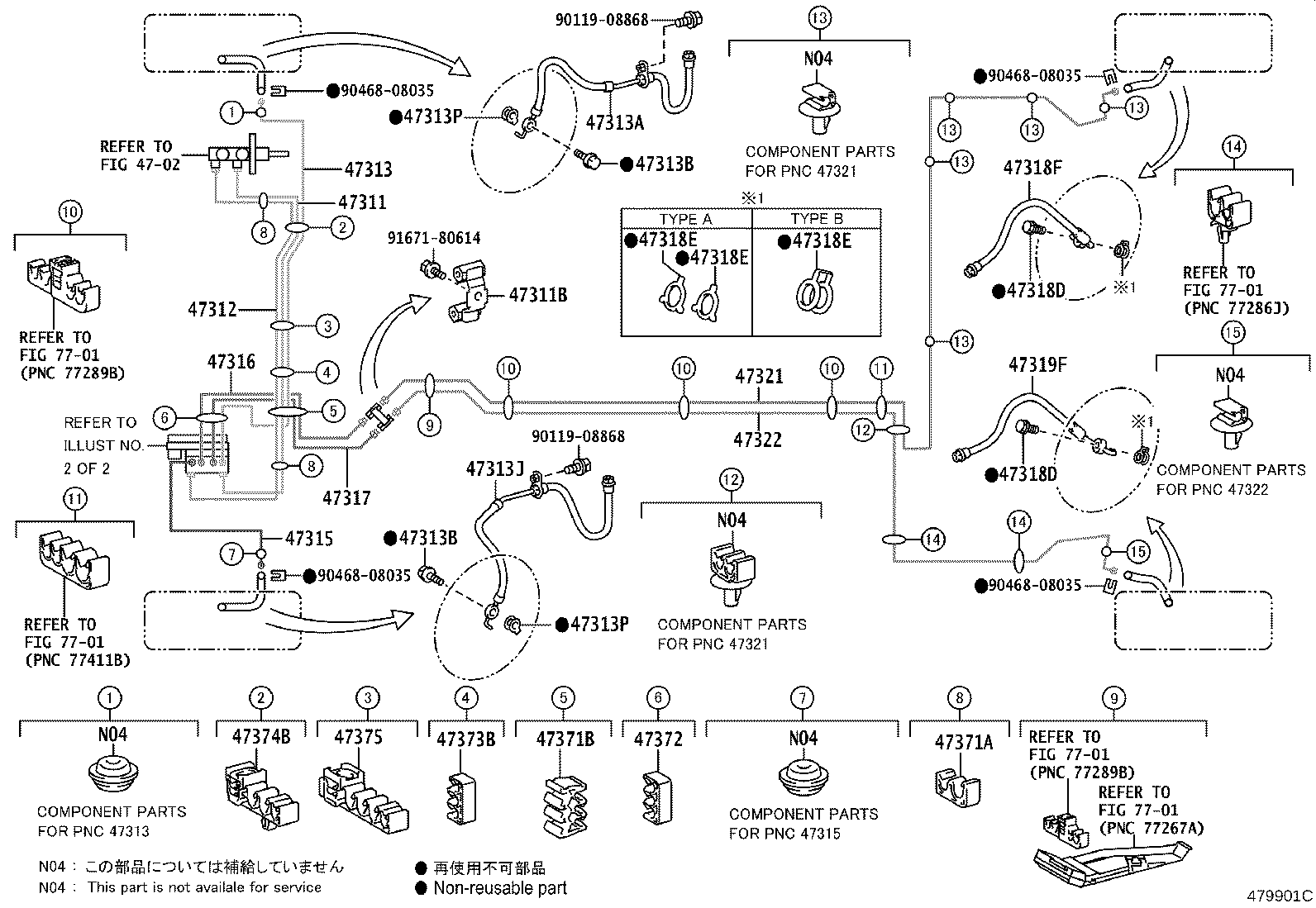

BRAKE TUBE

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318E 47318F 47319F 47321 47322 47371A 47371B 47372 47373B 47374B 47375 7701 7701 7701 7701 7701 9011908868 9011908868 9046808035 9046808035 9046808035 9046808035 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52630

NSP170

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NHP170,NSP170

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52720

NSP170

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52350

NSP170

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H35

NSP170

 1
90947-02H71

NSP170

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NHP170,NSP170

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NHP170,NSP170

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H36

NSP170

 1
90947-02H72

NSP170

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NHP170,NSP170

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NHP170,NSP170

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52300

NSP170

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52280

NSP170

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52290

NSP170

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10045

NHP170,NSP170

PNC 47318E=TYPE A

 2
90401-10058

NHP170,NSP170

PNC 47318E=TYPE B

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10045

NHP170,NSP170

PNC 47318E=TYPE A

 2
90401-10058

NHP170,NSP170

PNC 47318E=TYPE B

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NHP170,NSP170

TYPE B:REFER ILLUST.

 2
47389-30010

NHP170,NSP170

TYPE A:REFER ILLUST.

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NHP170,NSP170

TYPE B:REFER ILLUST.

 2
47389-30010

NHP170,NSP170

TYPE A:REFER ILLUST.

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NHP170,NSP170

TYPE B:REFER ILLUST.

 2
47389-30010

NHP170,NSP170

TYPE A:REFER ILLUST.

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H37

NHP170,NSP170

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H37

NHP170,NSP170

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52430

NSP170

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52430

NSP170

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00899

NSP170

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D98

NSP170

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D92

NSP170

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D93

NSP170

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D94

NSP170

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D97

NSP170

 1
Common parts
90119-08868
90468-08035
91671-80614
Linked diagrams
4702
7701
