NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

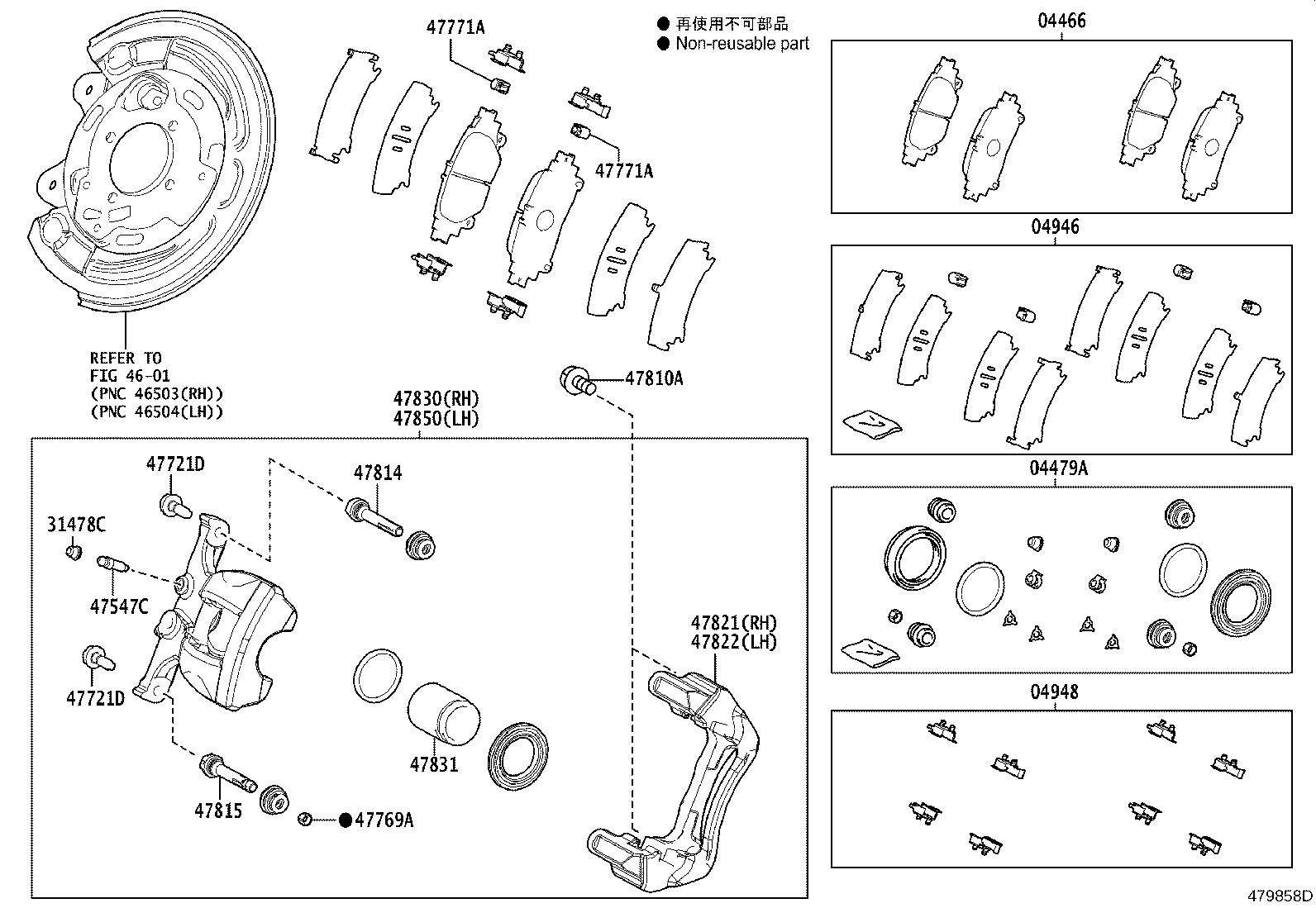

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47721D 47721D 47769A 47771A 47771A 47810A 47814 47815 47821 47822 47830 47831 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-52180

NHP170,NSP170

MARK AK PA561

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-52260

NHP170,NSP170

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-47080

NHP170,NSP170

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-30240

NHP170,NSP170

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

NHP170,NSP170

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

NHP170,NSP170

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

NHP170,NSP170

*8-1.00PX23-15

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

NHP170,NSP170

*8-1.00PX23-15

 4
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47879-33240

NHP170,NSP170

 2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-72010

NHP170,NSP170

 4
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-72010

NHP170,NSP170

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-12430

NHP170,NSP170

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-33240

NHP170,NSP170

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-33240

NHP170,NSP170

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-52210

NHP170,NSP170

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-52210

NHP170,NSP170

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-52210

NHP170,NSP170

 1
47831 - PISTON, REAR DISC BRAKE
47831-30330

NHP170,NSP170

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-52210

NHP170,NSP170

 1
Linked diagrams
4601
