NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )NSP170

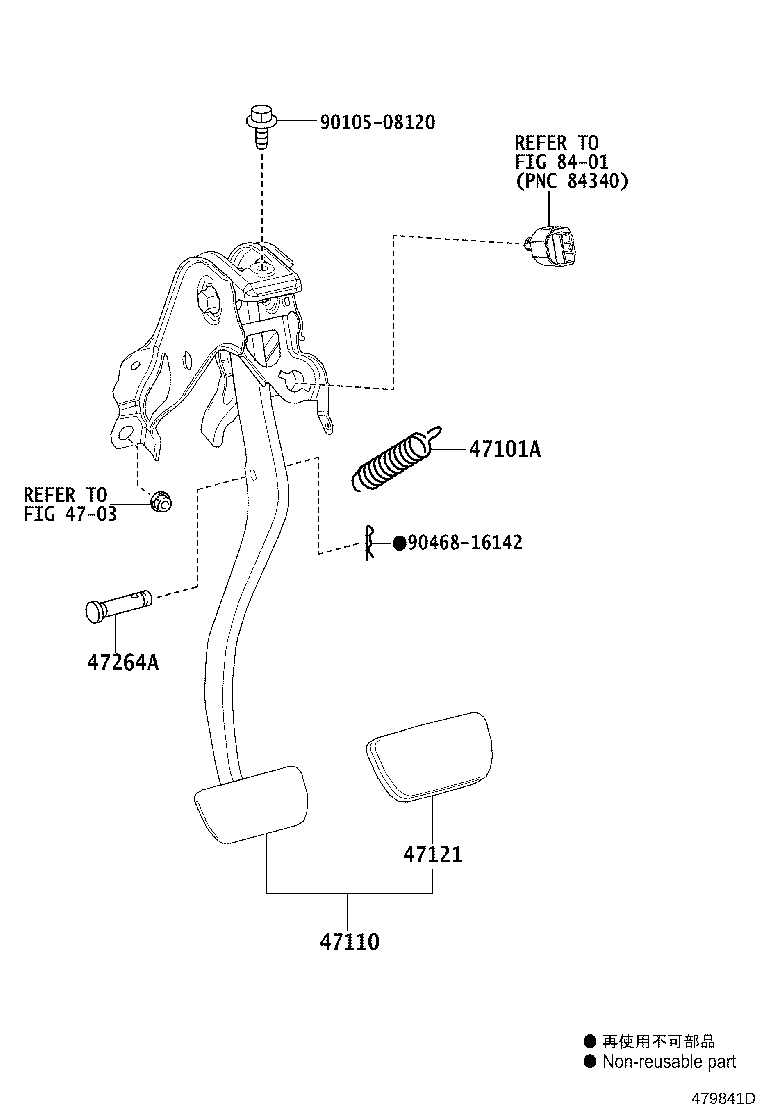

Click highlighted areas on diagram

diagram 4703 47101A 47110 47121 47264A 8401 9010508120 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14088

NHP170,NSP170

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-52420

NSP170

 1
47121 - PAD, BRAKE PEDAL
47121-52020

NHP170,NSP170

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

NHP170,NSP170

 1
Common parts
90105-08120
90468-16142
Linked diagrams
4703
8401
