NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)

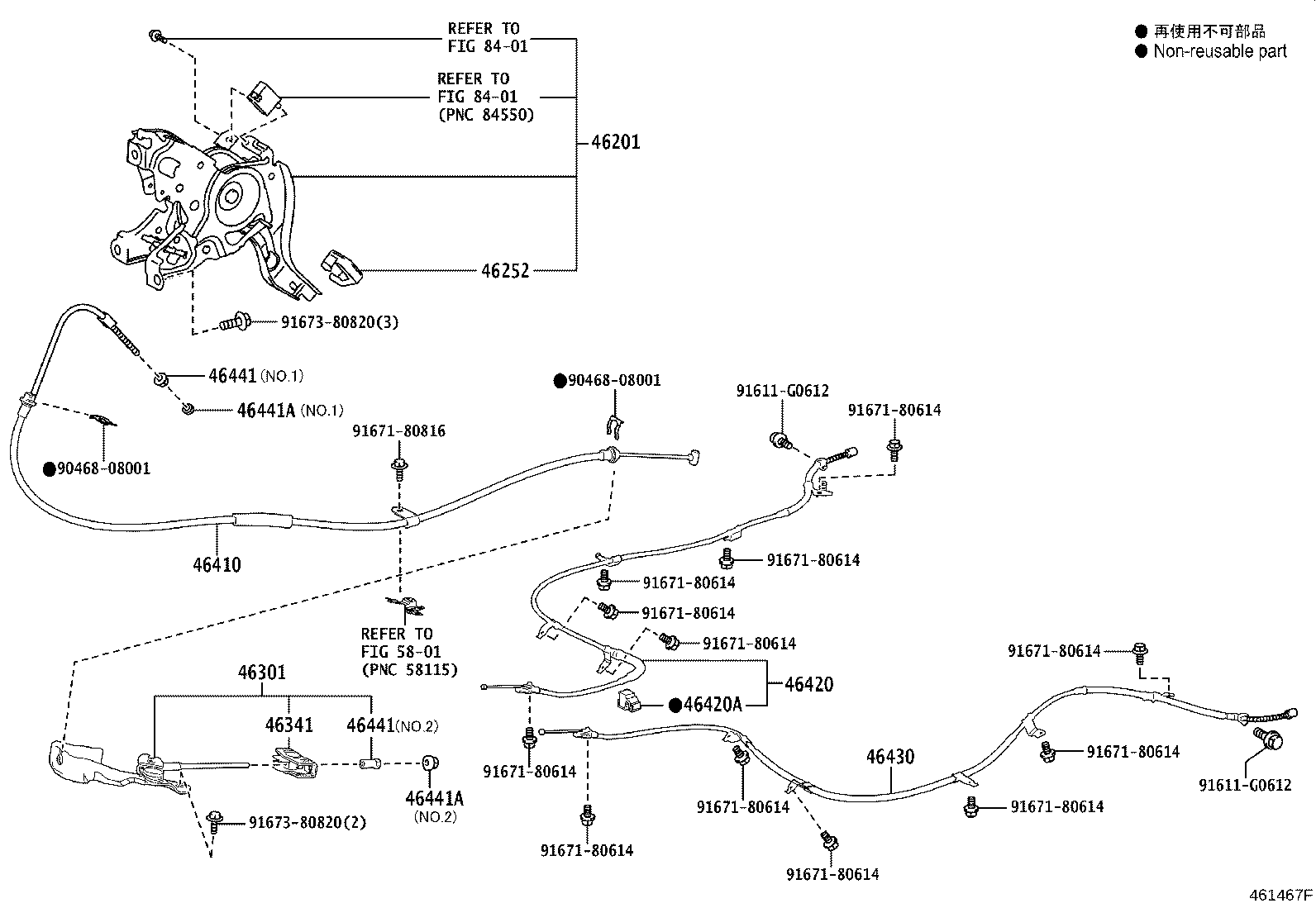

ILLUST NO. 1 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46210-52110 |
NHP170,NSP170 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-52020 |
NHP170,NSP170 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46320-52031 |
NHP170,NSP170 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-52030 |
NHP170,NSP170 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-52120 |
NHP170,NSP170 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52250 |
NHP170,NSP170 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-52060 |
NHP170,NSP170 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52310 |
NHP170,NSP170 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-52010 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 46441-12010 |
NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-52010 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 46441-12010 |
NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 94151-80600 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 94151-80600 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90468-08001 | ||||
| 91611-G0612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8401 | ||||

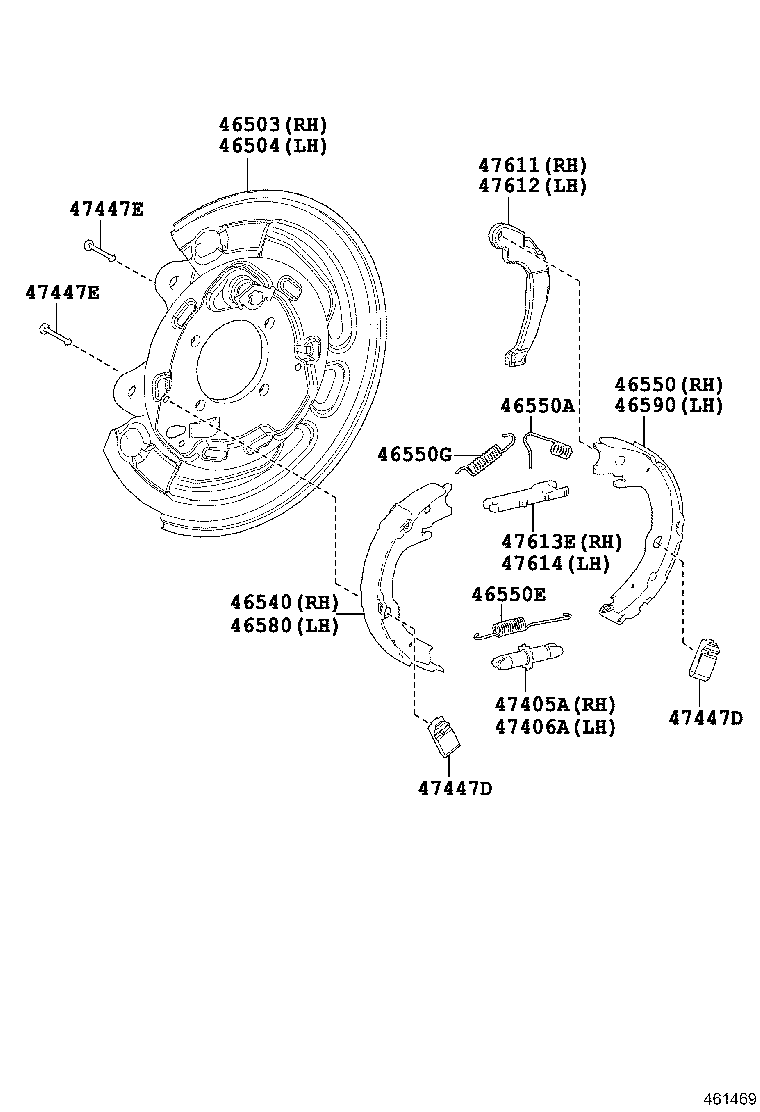

ILLUST NO. 2 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-52060 |
NHP170,NSP170 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-52050 |
NHP170,NSP170 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20080 |
NHP170,NSP170 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46540-20080 |
NHP170,NSP170 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY005 |
NHP170,NSP170 RH |
1 | ||
| 90905-06044 |
NHP170,NSP170 LH |
1 | ||
| 90905-06045 |
NHP170,NSP170 RH |
1 | ||
| 90015-DY006 |
NHP170,NSP170 LH |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06046 |
NHP170,NSP170 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06043 |
NHP170,NSP170 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20080 |
NHP170,NSP170 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46540-20080 |
NHP170,NSP170 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
NHP170,NSP170 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
NHP170,NSP170 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-32010 |
NHP170,NSP170 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-32010 |
NHP170,NSP170 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-11010 |
NHP170,NSP170 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-11010 |
NHP170,NSP170 |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47601-32030 |
NHP170,NSP170 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47602-32030 |
NHP170,NSP170 |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-32030 |
NHP170,NSP170 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-32030 |
NHP170,NSP170 |
1 | ||
