NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

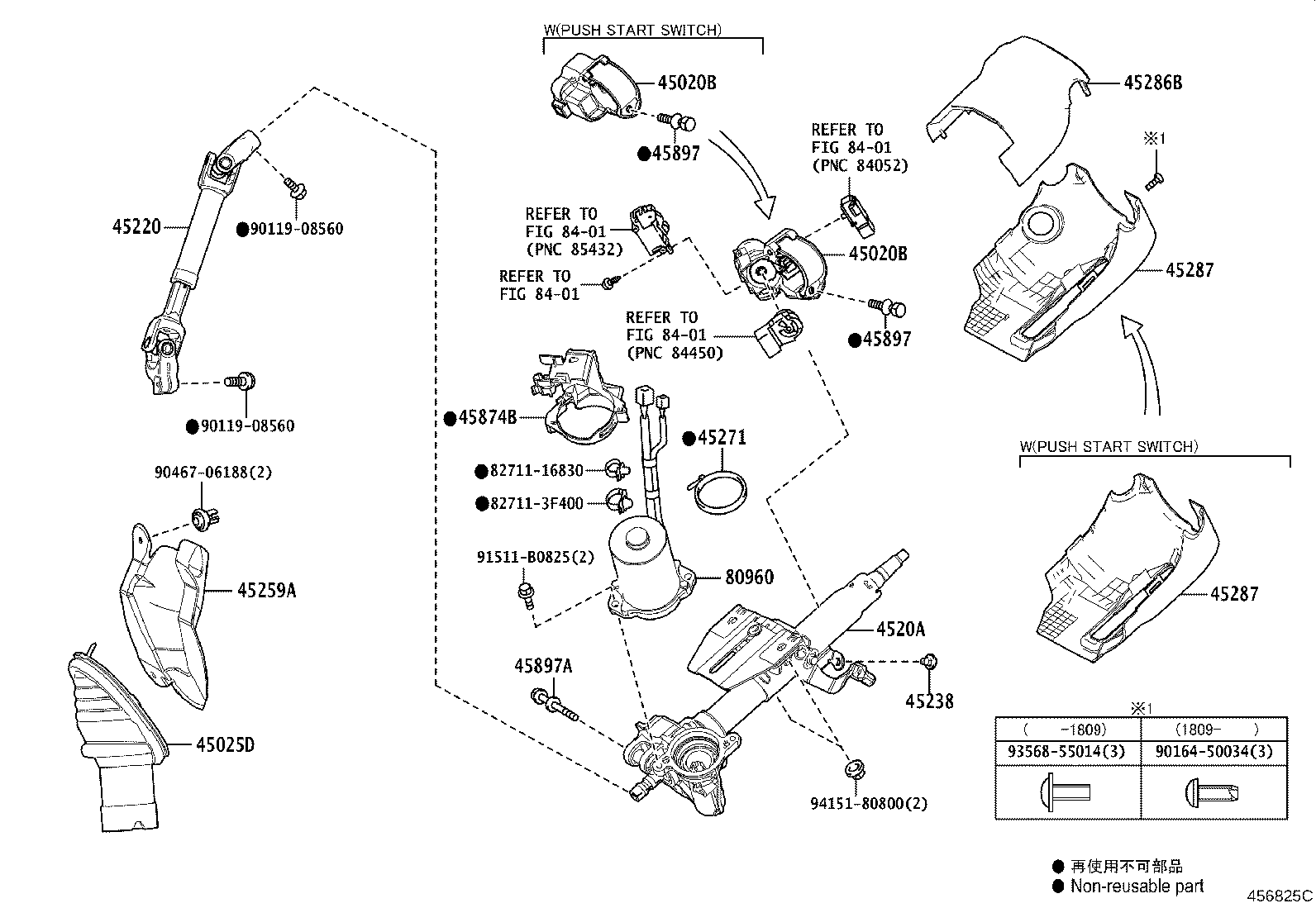

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45280-52100 |
NHP170,NSP170..N |
1 | ||
| 45020-30B20 |
NHP170,NSP170..Q |
1 | ||
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45280-52100 |
NHP170,NSP170..N |
1 | ||
| 45020-30B20 |
NHP170,NSP170..Q |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52170 |
NHP170,NSP170 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-52300 |
NHP170,NSP170..Q |
1 | ||
| 4520A-52290 |
NHP170,NSP170..N |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-52050 |
NHP170,NSP170 |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
NHP170,NSP170 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52070 |
NHP170,NSP170 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52040 |
NHP170,NSP170 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-12560C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 45286-52160C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-52190C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 45287-12640C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-52190C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 45287-12640C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-52040 |
NHP170,NSP170 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NHP170,NSP170 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NHP170,NSP170 |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10980 |
NHP170,NSP170 |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-52110 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82711-3F400 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
