NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1506- )

Click highlighted areas on diagram

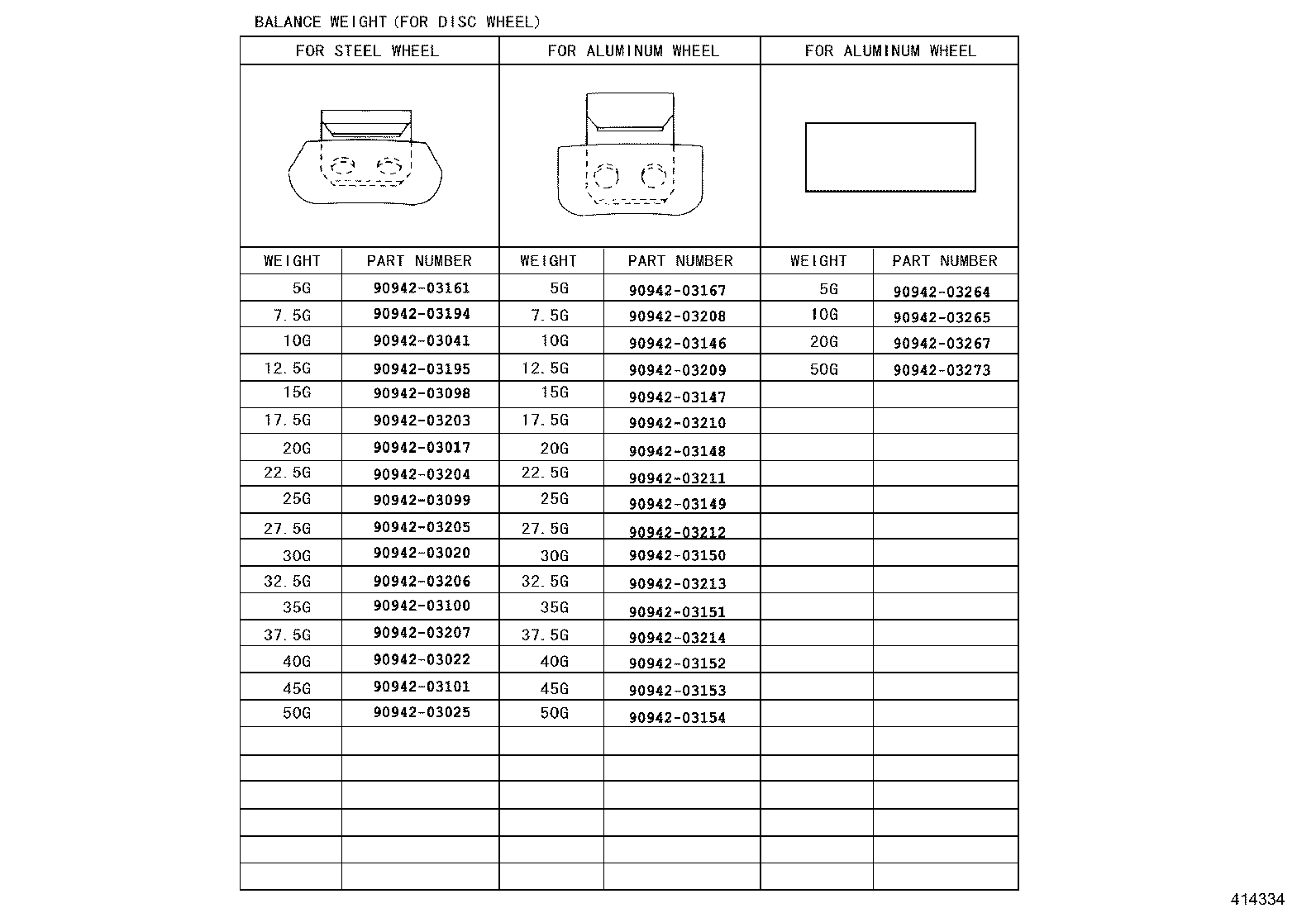

BALANCE WEIGHT

diagram 9094203017 9094203020 9094203022 9094203025 9094203041 9094203098 9094203099 9094203100 9094203101 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

ILLUST NO. 1 OF 3(1506- )

Click highlighted areas on diagram

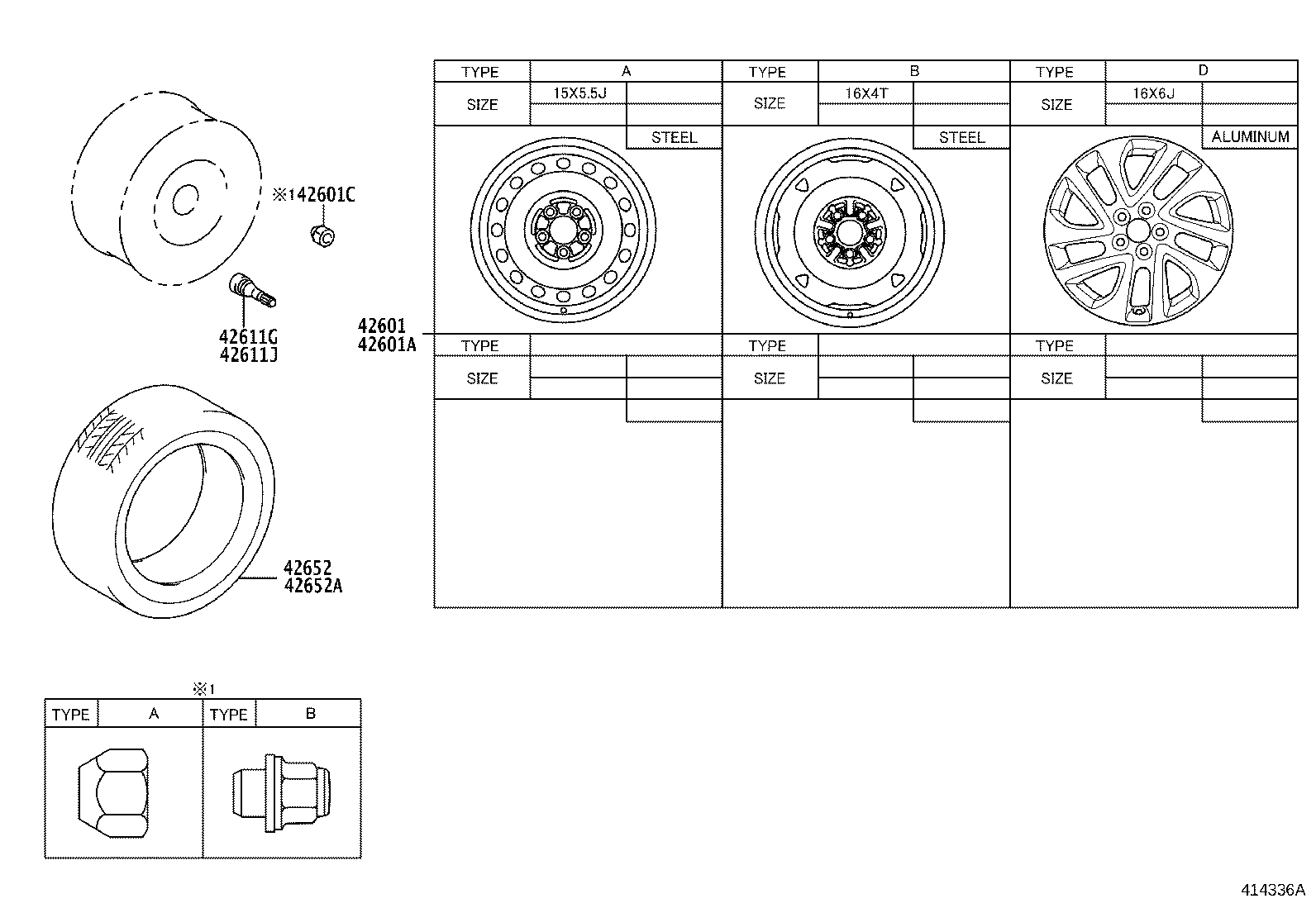

DISC WHEEL

diagram 42601 42601A 42601C 42611G 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-52B20

NHP170,NSP170..Q

16X6J, #,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM,TYPE D:REFER ILLUST.

 4
42611-52B00

NHP170,NSP170

15X5.5J, #,TYPE A:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-20A50

NSP170

16X4T,SPARE TIRE-T105/70D16,TYPE B:REFER ILLUST.

 1
42611-20841

NSP170

16X4T,SPARE TIRE-T105/70D16,TYPE B:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

NHP170,NSP170..Q

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM,TYPE B:REFER ILLUST.

 20
90942-01007

NHP170,NSP170

TYPE A:REFER ILLUST.

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

NHP170,NSP170

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

NSP170

SPARE TIRE-T105/70D16

 1
42652 - TIRE
42652-52F21

NHP170,NSP170..Q

195/50R16 *Y/H,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

 4
42652-52G61

NHP170,NSP170

185/60R15 *T/Y

 4
42652-52G60

NHP170,NSP170

185/60R15 *T/Y

 4
42652A - TIRE (FOR SPARE)
42652-10290

NSP170

T105/70D16,SPARE TIRE-T105/70D16

 1

ILLUST NO. 2 OF 3(1506- )

Click highlighted areas on diagram

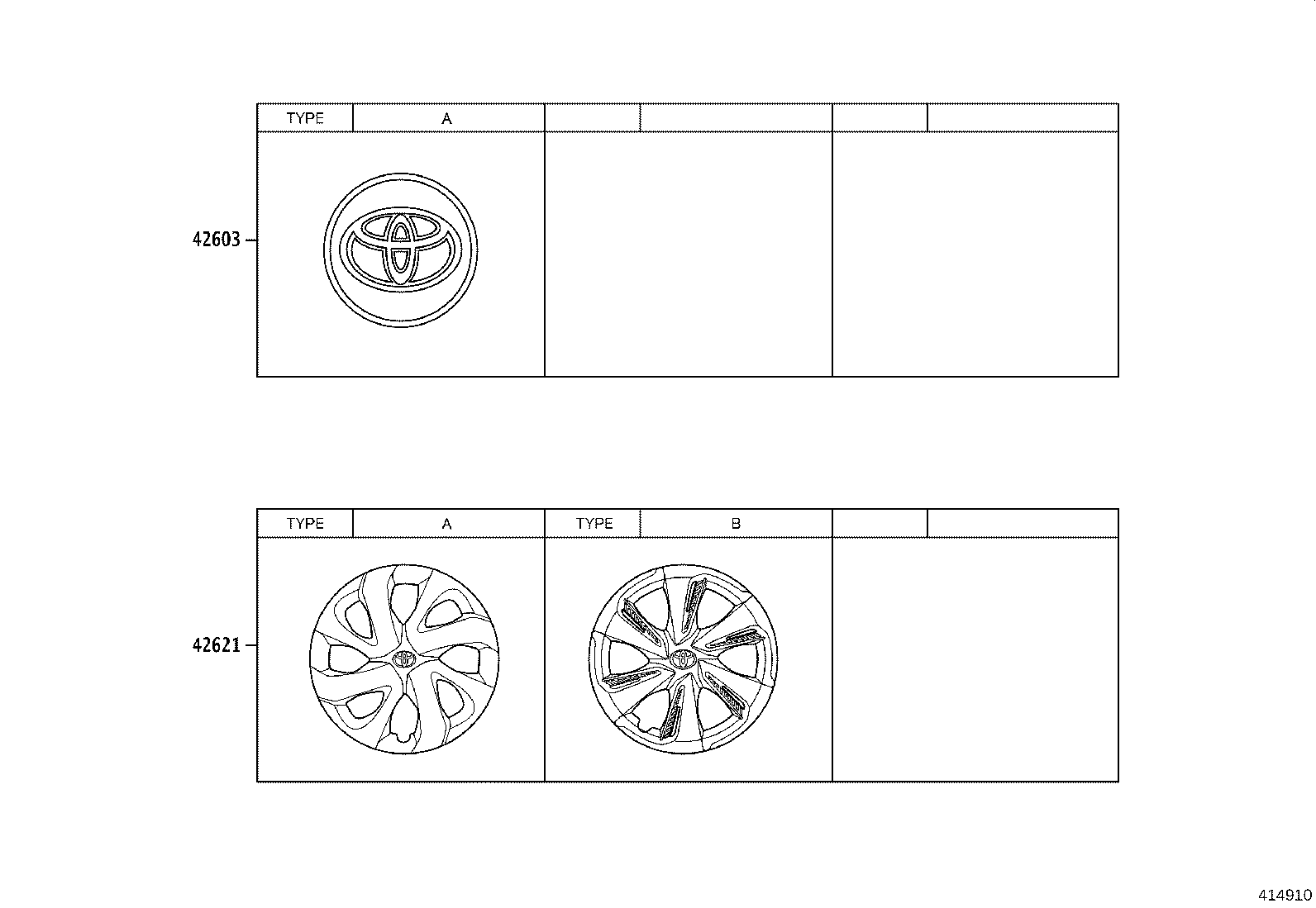

WHEEL HUB ORNAMENT & WHEEL CAP

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52170

NHP170,NSP170..Q

*ALU,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM,TYPE A:REFER ILLUST.

 4
42621 - CAP, WHEEL
42602-52560

NHP170,NSP170

TYPE A:REFER ILLUST.

 4
