NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )NSP170

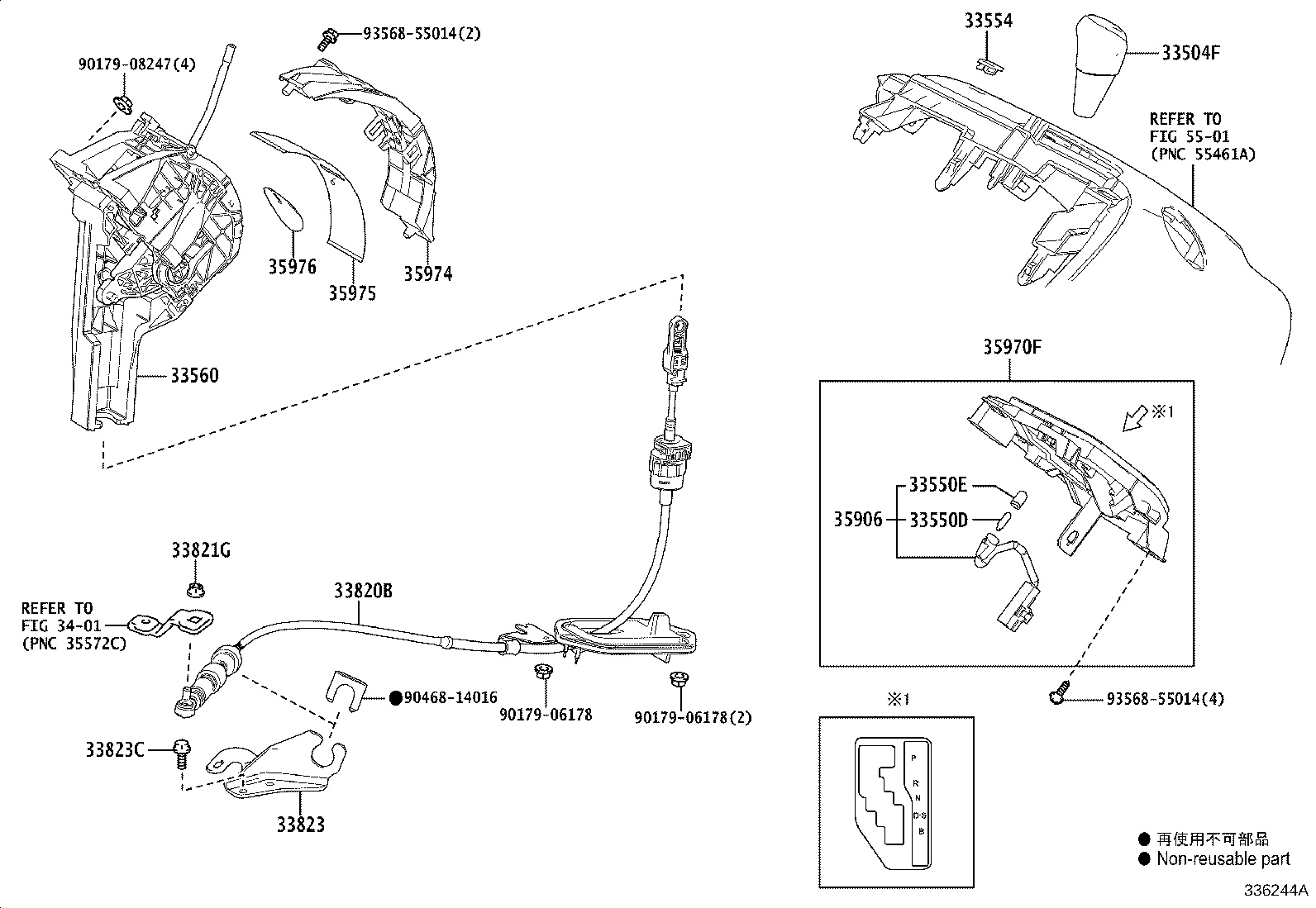

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554 33560 33820B 33821G 33823 33823C 3401 35906 35970F 35974 35975 35976 5501 9017906178 9017906178 9017908247 9046814016 9356855014 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-52490C0

NHP170,NSP170..Q

BLACK & STITCH NO.201,TRIM0#,2#

 1
33504-52180C0

NHP170,NSP170..N

BLACK,TRIM0#,2#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

NHP170,NSP170

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-64020

NHP170,NSP170

 1
33554 - CAP, SHIFT LEVER
33554-52160A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
33554-52160C0

NHP170,NSP170

BLACK,TRIM2#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52660

NSP170..Q

 1
33560-52650

NSP170..N

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52870

NSP170

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NHP170,NSP170

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52150

NSP170

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

NSP170

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52130

NHP170,NSP170

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-52250B0

NSP170..Q

SATIN CHROME,TRIM0#,2#

 1
35970-52230C1

NSP170..N

BLACK,TRIM0#,2#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-52160

NHP170,NSP170

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52120

NHP170,NSP170

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-48050

NHP170,NSP170

 1
Common parts
90179-06178
90179-08247
90468-14016
93568-55014
Linked diagrams
3401
5501
