NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )2NRFKE

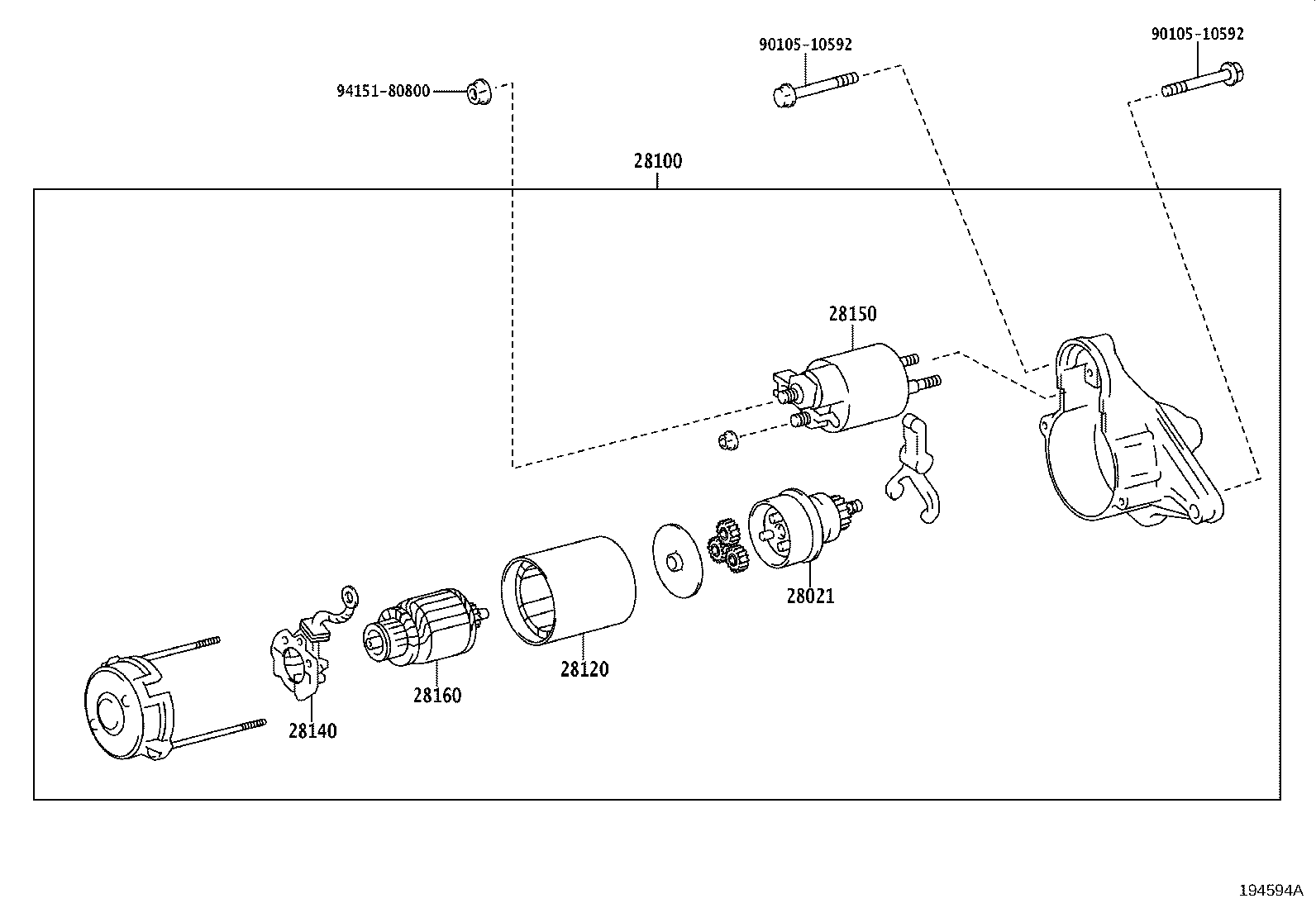

Click highlighted areas on diagram
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-21100 |
2NRFKE..NSP170 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-47250 |
2NRFKE..NSP170 12V 1.7KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47210 |
2NRFKE..NSP170 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-21100 |
2NRFKE..NSP170 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-47250 |
2NRFKE..NSP170 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-38080 |
2NRFKE..NSP170 |
1 | ||
| 28160-38070 |
2NRFKE..NSP170 |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 94151-80800 | ||||
