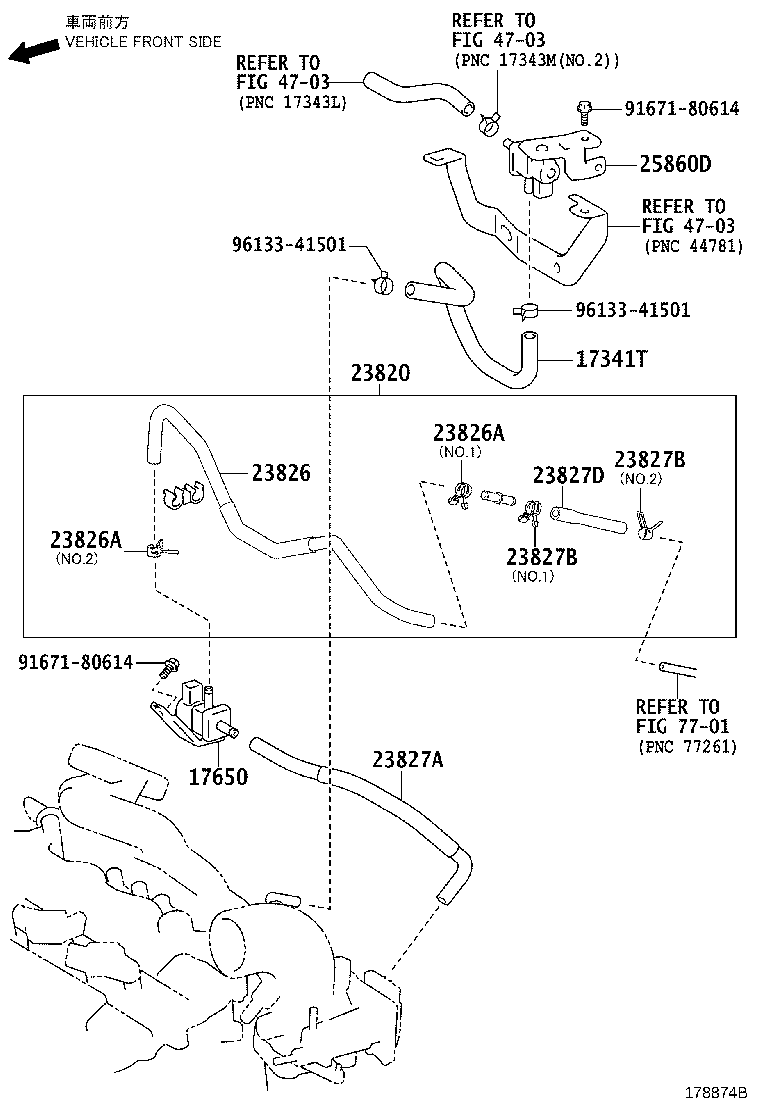

Toyota Sienta (jpp) NSP170 VACUUM PIPING

Part #	Description	Period	Qty
17341T - HOSE, AIR, NO.1
44726-52011	2NRFKE..NSP170	03/2017 - 09/2018	1
44726-52010	2NRFKE..NSP170	06/2015 - 02/2017	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-47030	2NRFKE..NSP170	06/2015 - 09/2018	1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-47070	2NRFKE..NSP170	06/2015 - 09/2018	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-47120	2NRFKE..NSP170	06/2015 - 09/2018	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	2NRFKE..NSP170 NO.2:REFER ILLUST.,NO.1:REFER ILLUST.	06/2015 - 09/2018	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	2NRFKE..NSP170 NO.2:REFER ILLUST.,NO.1:REFER ILLUST.	06/2015 - 09/2018	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-47090	2NRFKE..NSP170	06/2015 - 09/2018	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51000	2NRFKE..NSP170 NO.2:REFER ILLUST.	06/2015 - 09/2018	1
96132-51100	2NRFKE..NSP170 NO.1:REFER ILLUST.	06/2015 - 09/2018	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51000	2NRFKE..NSP170 NO.2:REFER ILLUST.	06/2015 - 09/2018	1
96132-51100	2NRFKE..NSP170 NO.1:REFER ILLUST.	06/2015 - 09/2018	1
23827D - HOSE, FUEL VAPOR FEED, NO.2
23827-47120	2NRFKE..NSP170	06/2015 - 09/2018	1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-47040	2NRFKE..NSP170	06/2015 - 09/2018	1
Common parts
91671-80614
96133-41501
Linked diagrams
4703
7701

NSP170R-MWXQB (2015)
