NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )2NRFKE

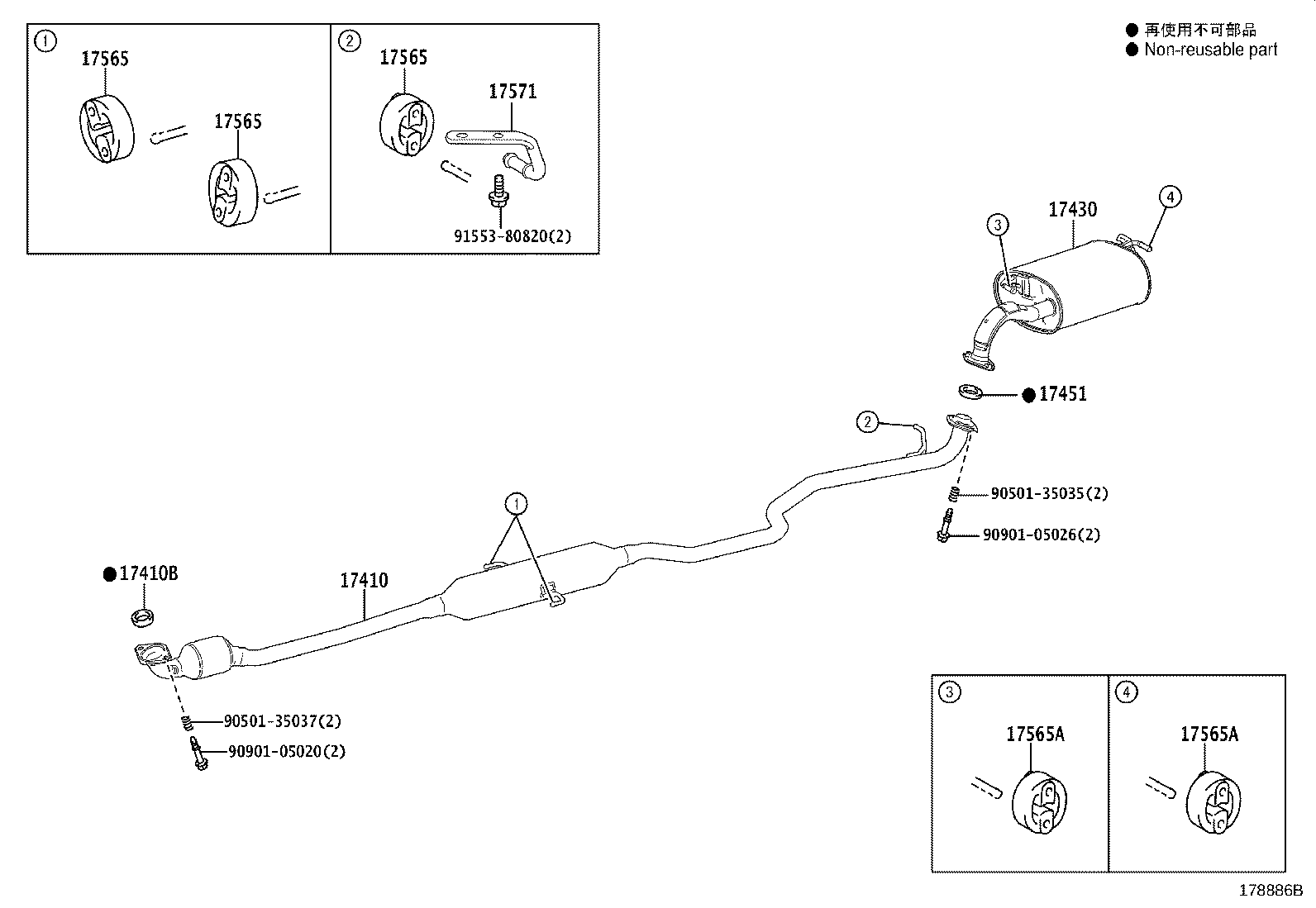

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565 17565 17565 17565A 17565A 17571 9050135035 9050135037 9090105020 9090105026 9155380820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47230

2NRFKE..NSP170

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

1NZFXE,2NRFKE..NHP170,NSP170

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-47210

1NZFXE,2NRFKE..NHP170,NSP170

 1
17451 - GASKET, EXHAUST PIPE
17451-23042

1NZFXE,2NRFKE..NHP170,NSP170

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZFXE,2NRFKE..NHP170,NSP170

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZFXE,2NRFKE..NHP170,NSP170

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZFXE,2NRFKE..NHP170,NSP170

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

1NZFXE,2NRFKE..NHP170,NSP170

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

1NZFXE,2NRFKE..NHP170,NSP170

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-47100

1NZFXE,2NRFKE..NHP170,NSP170

 1
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91553-80820
