NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )2NRFKE

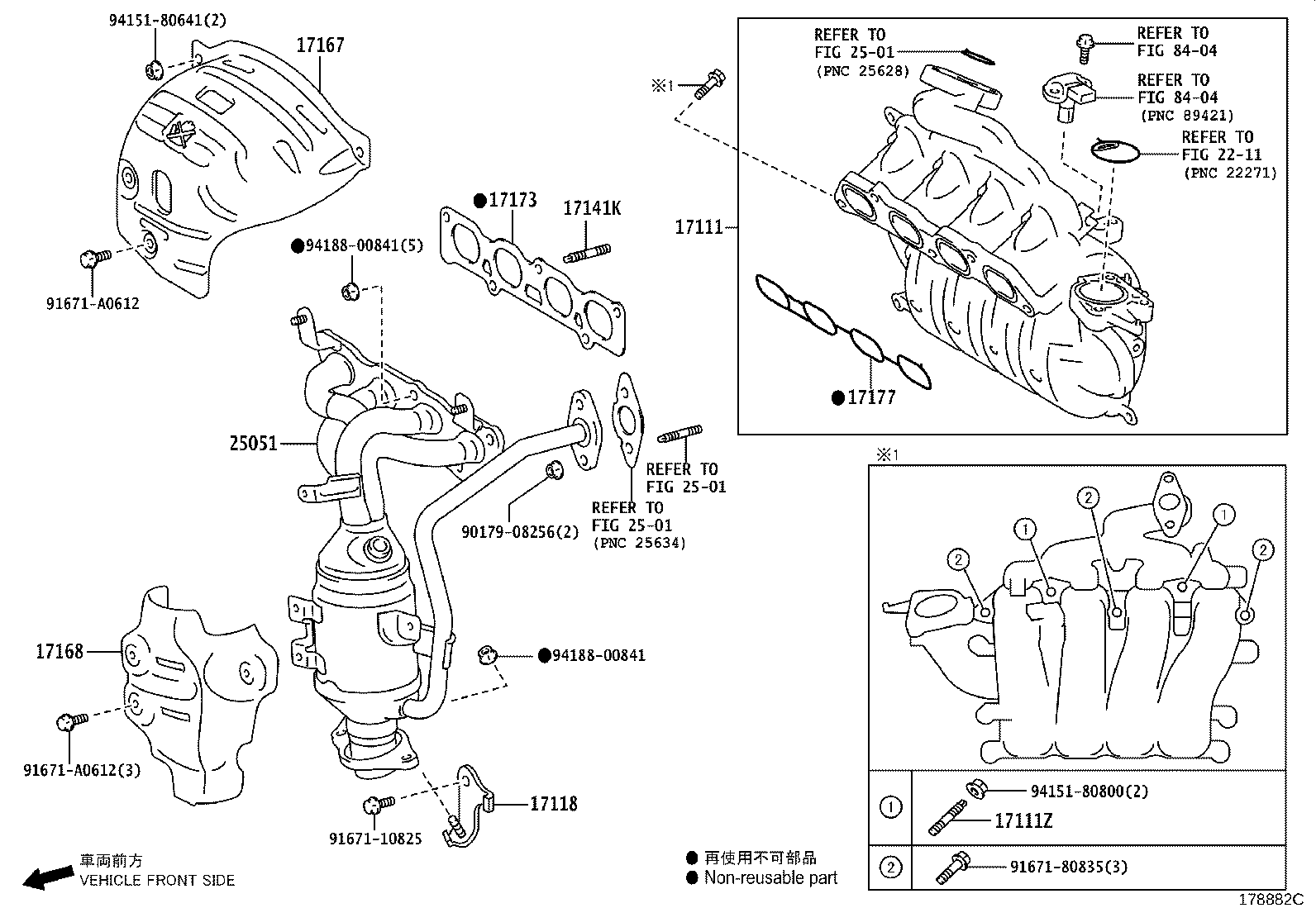

Click highlighted areas on diagram

diagram 17111 17111Z 17118 17141K 17167 17168 17173 17177 2211 2501 2501 2501 25051 8404 8404 9017908256 9167110825 9167180835 91671A0612 91671A0612 9415180641 9415180800 9418800841 9418800841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-47110

2NRFKE..NSP170

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08060

2NRFKE..NSP170

 2
17118 - STAY, MANIFOLD
17118-47011

2NRFKE..NSP170

 1
17118-47010

2NRFKE..NSP170

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063

2NRFKE..NSP170

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-47011

2NRFKE..NSP170

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-47041

2NRFKE..NSP170

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-47021

2NRFKE..NSP170

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-47011

2NRFKE..NSP170

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-47140

2NRFKE..NSP170

 1
Common parts
90179-08256
91671-10825
91671-80835
91671-A0612
94151-80641
94151-80800
94188-00841
Linked diagrams
2211
2501
8404
