NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
(1506- )2NRFKE

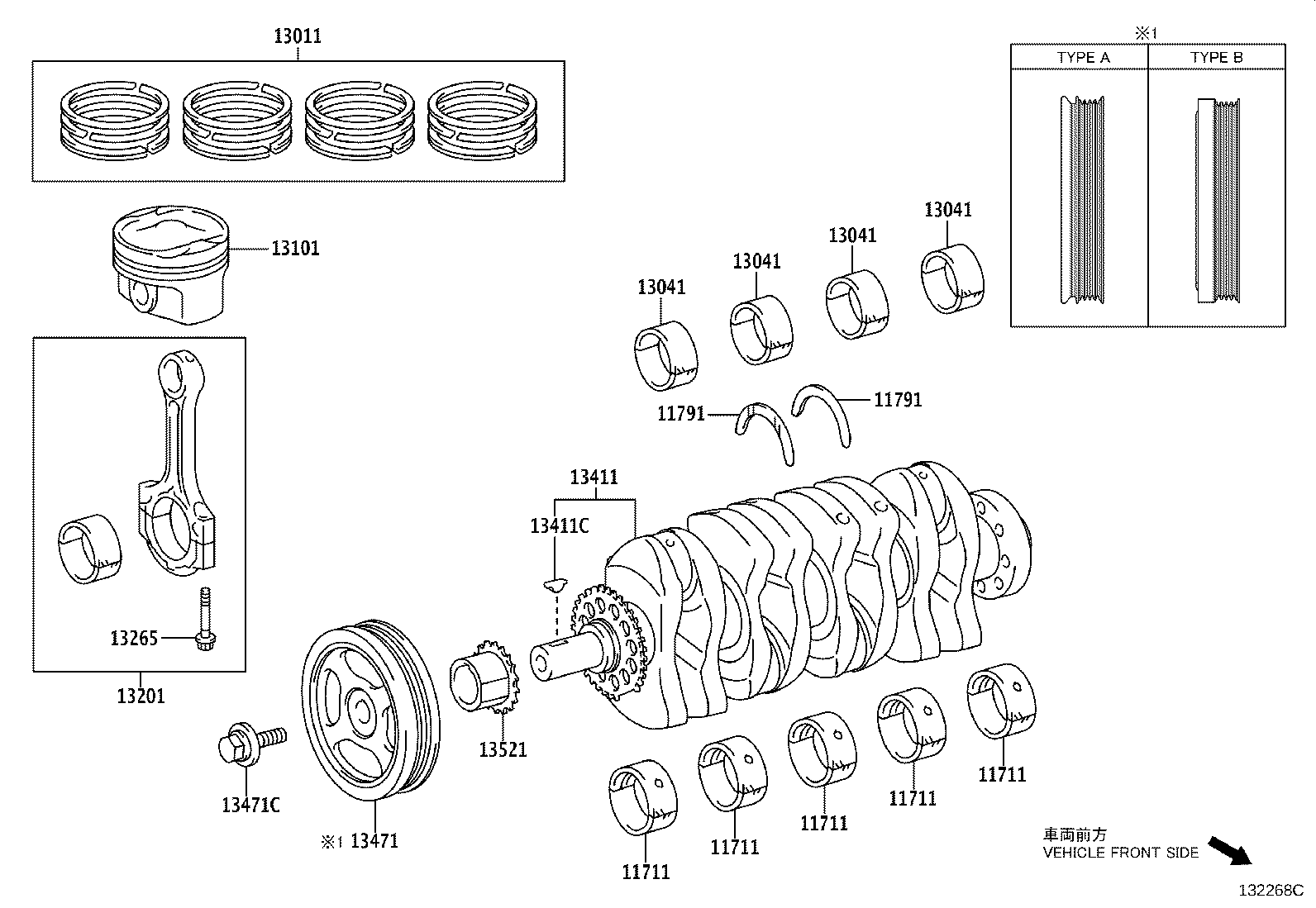

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4703104 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703105 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-4703204 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703205 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4703104 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703105 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-4703204 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703205 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4703104 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703105 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-4703204 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703205 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4703104 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703105 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-4703204 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703205 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4703104 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703105 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-4703204 |
2NRFKE..NSP170 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-4703102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-4703103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-4703205 |
2NRFKE..NSP170 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-47030 |
2NRFKE..NSP170 STD |
2 | ||
| 11791-47031 |
2NRFKE..NSP170 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-47030 |
2NRFKE..NSP170 STD |
2 | ||
| 11791-47031 |
2NRFKE..NSP170 STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-47120 |
2NRFKE..NSP170 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4701101 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-4701103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701201 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4701101 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-4701103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701201 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4701101 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-4701103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701201 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4701101 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701102 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-4701103 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701201 |
2NRFKE..NSP170 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-4701203 |
2NRFKE..NSP170 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-4701202 |
2NRFKE..NSP170 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-47140 |
2NRFKE..NSP170 STD |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-49115 |
2NRFKE..NSP170 |
4 | ||
| 13201-49116 |
2NRFKE..NSP170 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1NZFXE,2NRFKE..NHP170,NSP170 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-47090 |
2NRFKE..NSP170 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90280-04001 |
2NRFKE..NSP170 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-47080 |
2NRFKE..NSP170 TYPE A:REFER ILLUST. |
1 | ||
| 13470-47090 |
2NRFKE..NSP170 TYPE B:REFER ILLUST. |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
2NRFKE..NSP170 |
1 | ||
| 90119-14175 |
2NRFKE..NSP170 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-47020 |
2NRFKE..NSP170 |
1 | ||
