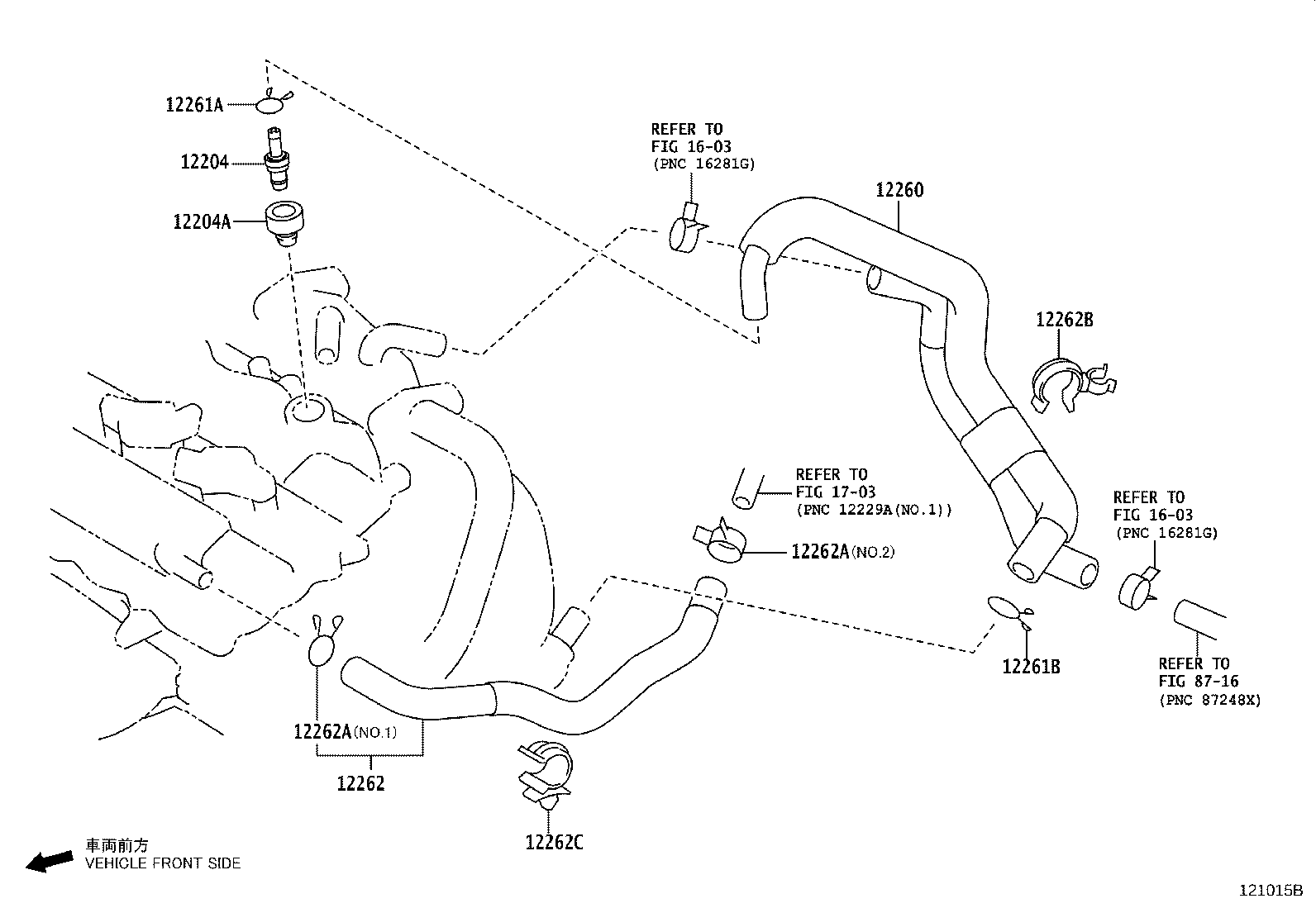

Toyota Sienta (jpp) NSP170 VENTILATION HOSE

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-47060	2NRFKE..NSP170	06/2015 - 09/2018	1
12204A - GROMMET(FOR VENTILATION SYSTEM)
11249-47020	2NRFKE..NSP170	06/2015 - 09/2018	1
12260 - HOSE ASSY, VENTILATION
12029-47020	2NRFKE..NSP170	06/2015 - 09/2018	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035	2NRFKE..NSP170	06/2015 - 09/2018	1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002	2NRFKE..NSP170	06/2015 - 09/2018	1
12262 - HOSE, VENTILATION, NO.2
12262-47040	2NRFKE..NSP170	06/2015 - 09/2018	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96136-42201	2NRFKE..NSP170 NO.2:REFER ILLUST.	06/2015 - 09/2018	1
90467-21004	2NRFKE..NSP170 NO.1:REFER ILLUST.	06/2015 - 09/2018	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96136-42201	2NRFKE..NSP170 NO.2:REFER ILLUST.	06/2015 - 09/2018	1
90467-21004	2NRFKE..NSP170 NO.1:REFER ILLUST.	06/2015 - 09/2018	1
12262B - CLAMP(FOR VENTILATION HOSE)
16581-47070	2NRFKE..NSP170	06/2015 - 09/2018	1
12262C - CLAMP, VENTILATION HOSE, NO.2
12251-47030	2NRFKE..NSP170	06/2015 - 09/2018	1
Linked diagrams
1603
1703
8716

NSP170R-MWXQB (2015)
