NSP170R-MWXNB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )NSP170

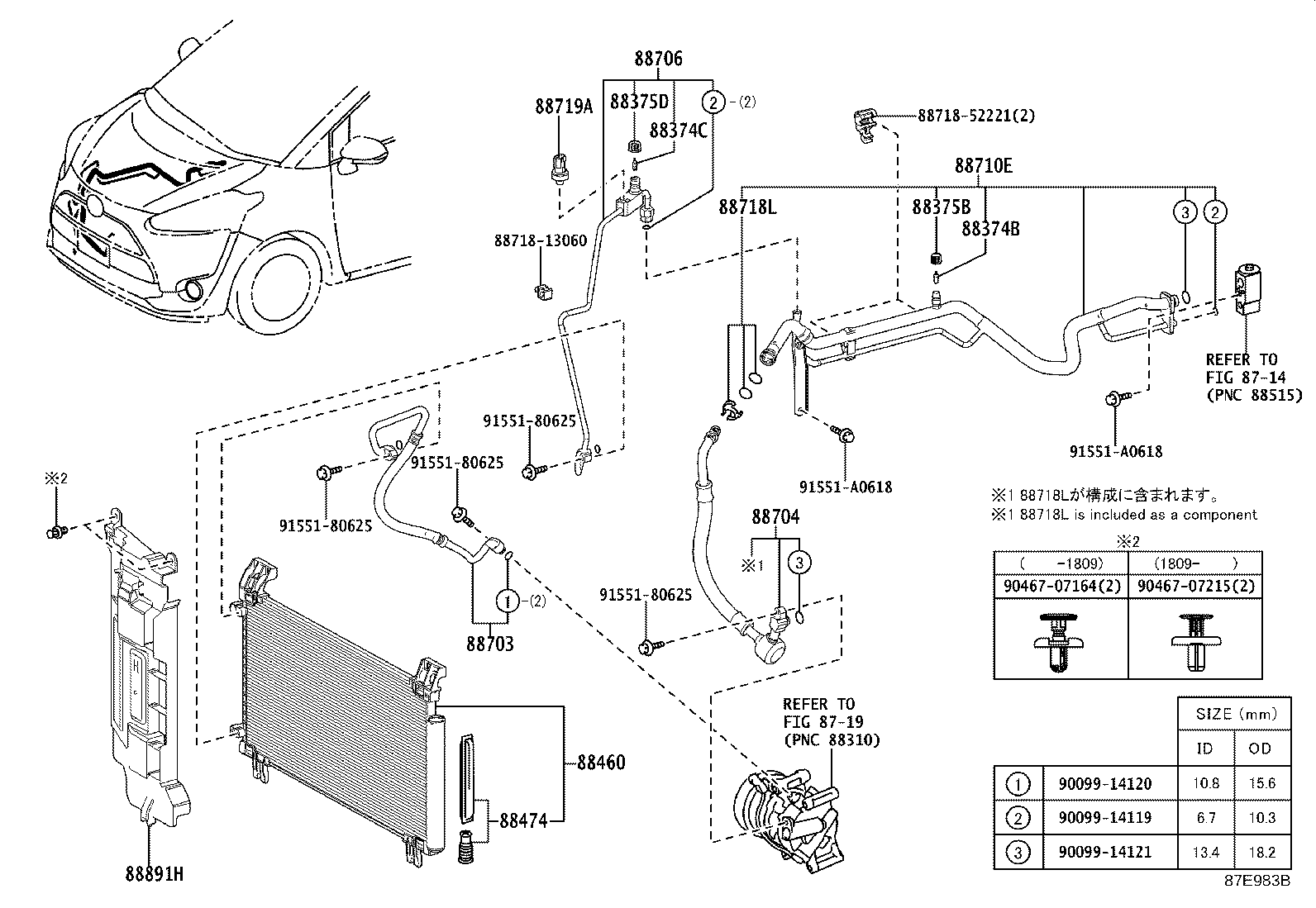

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NHP170,NSP170 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NHP170,NSP170 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
NHP170,NSP170 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
NHP170,NSP170 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52180 |
NSP170 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
NSP170 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88711-52470 |
NSP170 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-52320 |
NSP170 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88716-52790 |
NSP170 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-12A80 |
NSP170 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
NHP170,NSP170 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NHP170,NSP170 |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-52110 |
NSP170 |
1 | ||
| Common parts | ||||
| 88718-13060 | ||||
| 88718-52221 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90467-07164 | ||||
| 90467-07215 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
