NSP170R-MWXNB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1809)

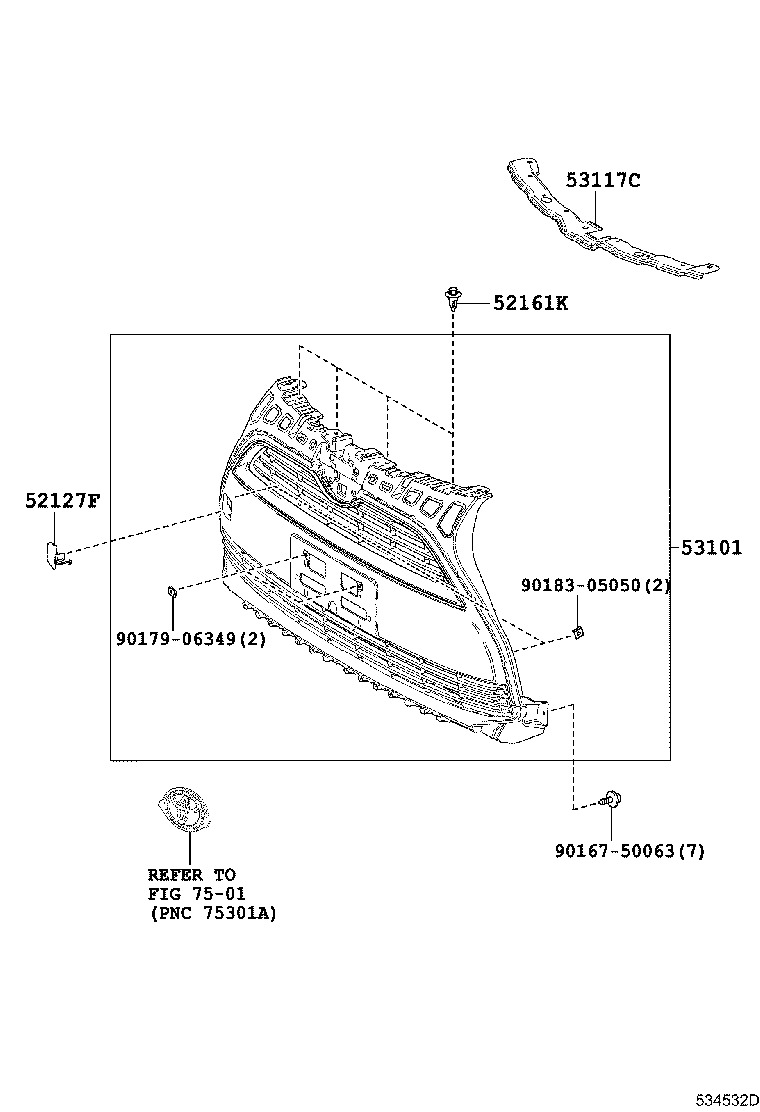

Click highlighted areas on diagram

diagram 52127F 52161K 53101 53117C 7501 9016750063 9017906349 9018305050
Part # Description Qty Price
52127F - COVER, FRONT BUMPER HOLE
52127-52600

NHP170,NSP170

MATERIAL COLOR

 1
52161K - PIECE, FRONT BUMPER
52161-16010

NHP170,NSP170

 4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-52460

NHP170,NSP170

PLATED

 1
53117C - RETAINER, RADIATOR GRILLE, NO.1
52521-52050

NHP170,NSP170

 1
Common parts
90167-50063
90179-06349
90183-05050
Linked diagrams
7501
