NSP170R-MWXNB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )2NRFKE

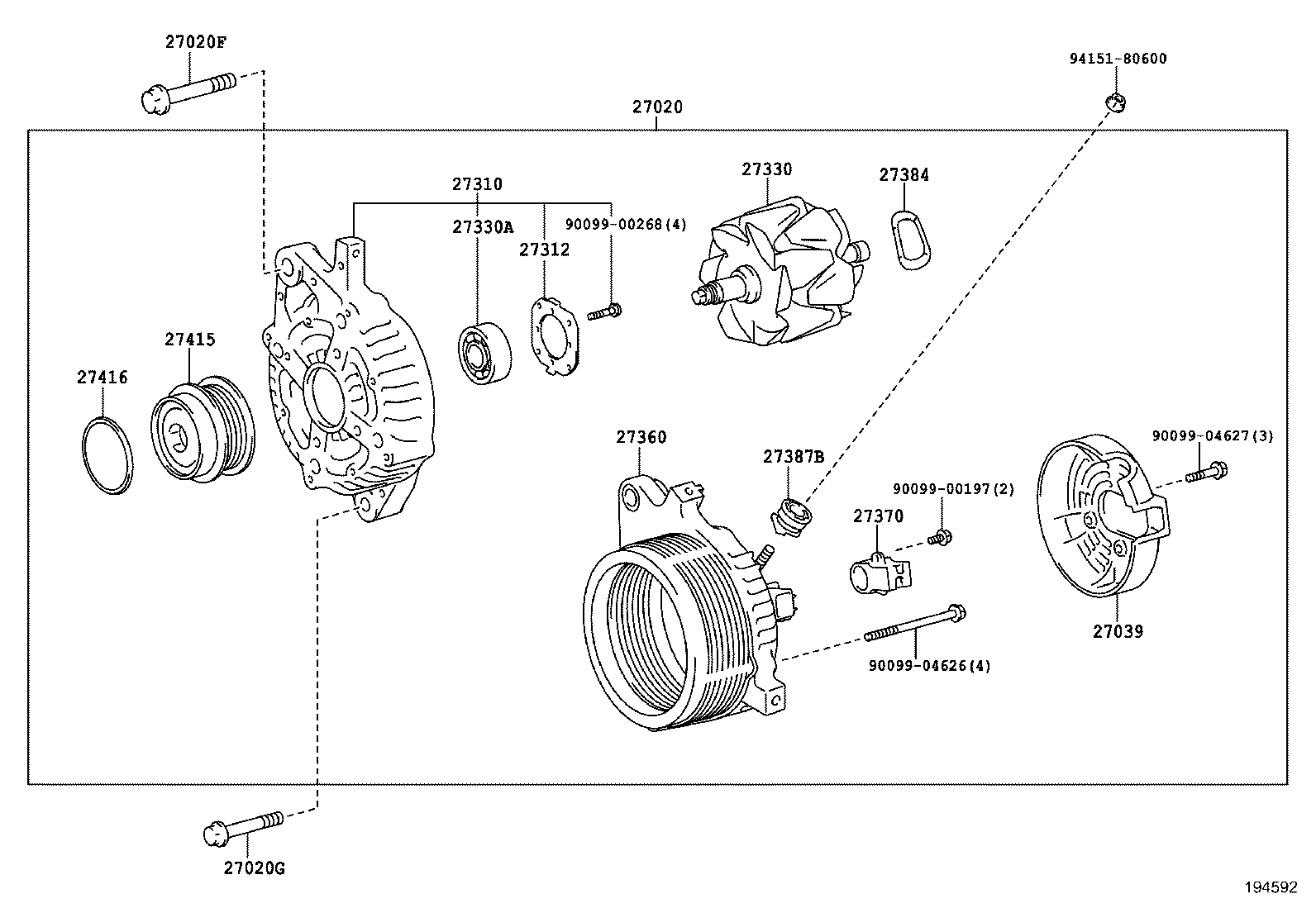

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-47270 |
2NRFKE..NSP170 12V 100A |
1 | ||
| 27060-47290 |
2NRFKE..NSP170 12V 100A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 91552-81075 |
2NRFKE..NSP170 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91551-80840 |
2NRFKE..NSP170 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-47330 |
2NRFKE..NSP170 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-47330 |
2NRFKE..NSP170 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2NRFKE..NSP170 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-47330 |
2NRFKE..NSP170 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10223 |
2NRFKE..NSP170 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-47411 |
2NRFKE..NSP170 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
2NRFKE..NSP170 |
1 | ||
| 27384 - WASHER | ||||
| 27384-38130 |
2NRFKE..NSP170 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
2NRFKE..NSP170 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0Y061 |
2NRFKE..NSP170 |
1 | ||
| 27415-0Y061 |
2NRFKE..NSP170 LITENS |
1 | ||
| 27415-47070 |
2NRFKE..NSP170 MITSUBOSHI |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
2NRFKE..NSP170 |
1 | ||
| 27416-47010 |
2NRFKE..NSP170 MITSUBOSHI |
1 | ||
| 27416-0W050 |
2NRFKE..NSP170 LITENS |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 94151-80600 | ||||
