NSP170R-MWXNB (2018)

Toyota Sienta (Jpp)

Production Sep 2018 - Sep 9999
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 8 OF 8(1809- )

Click highlighted areas on diagram

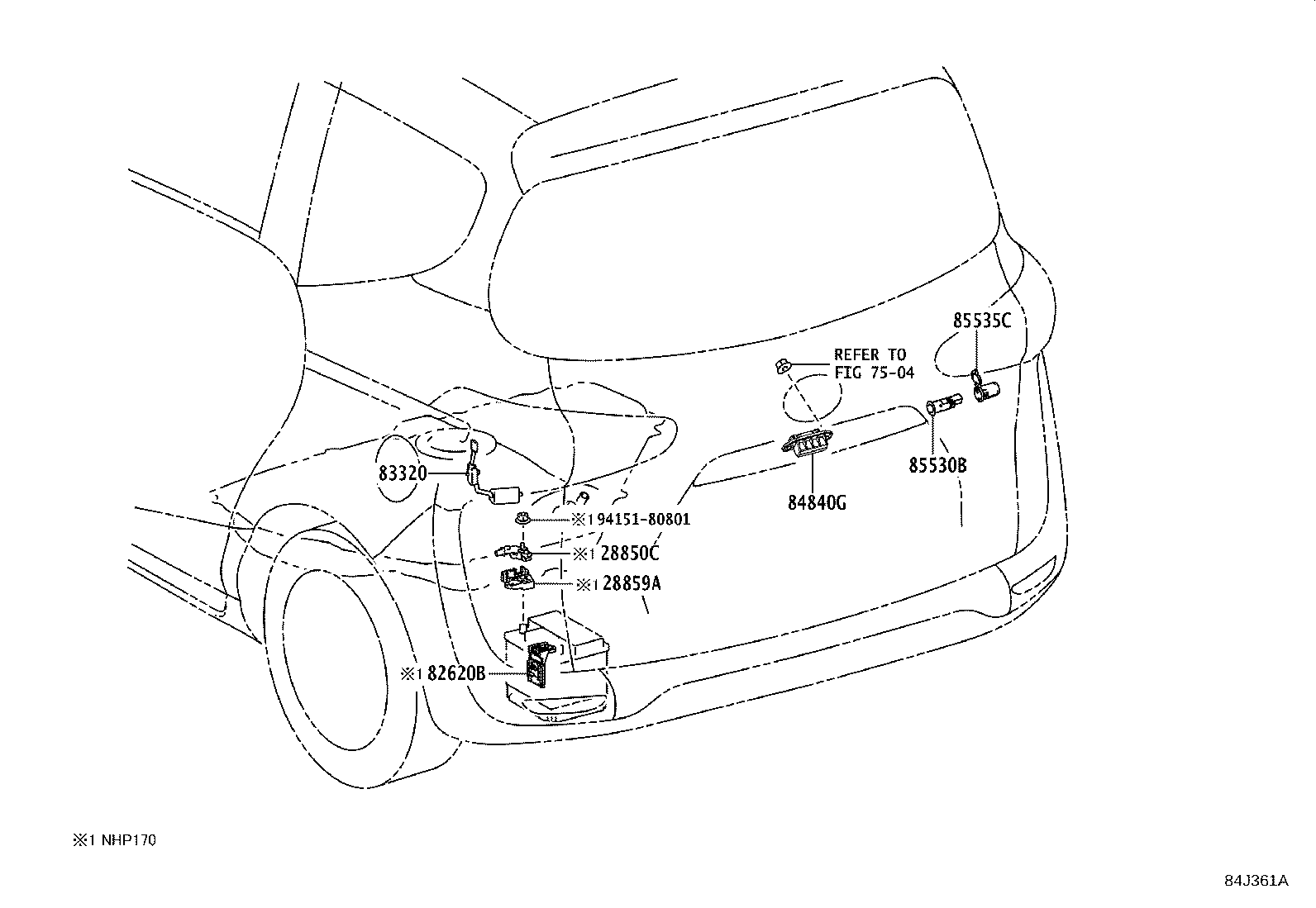

FLOOR & BACK DOOR

diagram 28850C 28859A 7504 82620B 83320 84840G 85530B 85535C 9415180801
Part # Description Qty Price
28850C - SENSOR ASSY, BATTERY STATE
28850-36030

1NZFXE,2NRFKE..NHP170,NSP170

 1
28859A - HOLDER, BATTERY CURRENT SENSOR
28859-47020

2NRFKE..NSP170

 1
83320 - GAGE ASSY, FUEL SENDER
83320-52140

NHP170,NSP170

 1
84840G - SWITCH ASSY, BACK DOOR OPENER
84840-52040

NHP170,NSP170..N

 1
84840-47030

NHP170,NSP170..N

 1
Common parts
94151-80801
Linked diagrams
7504
