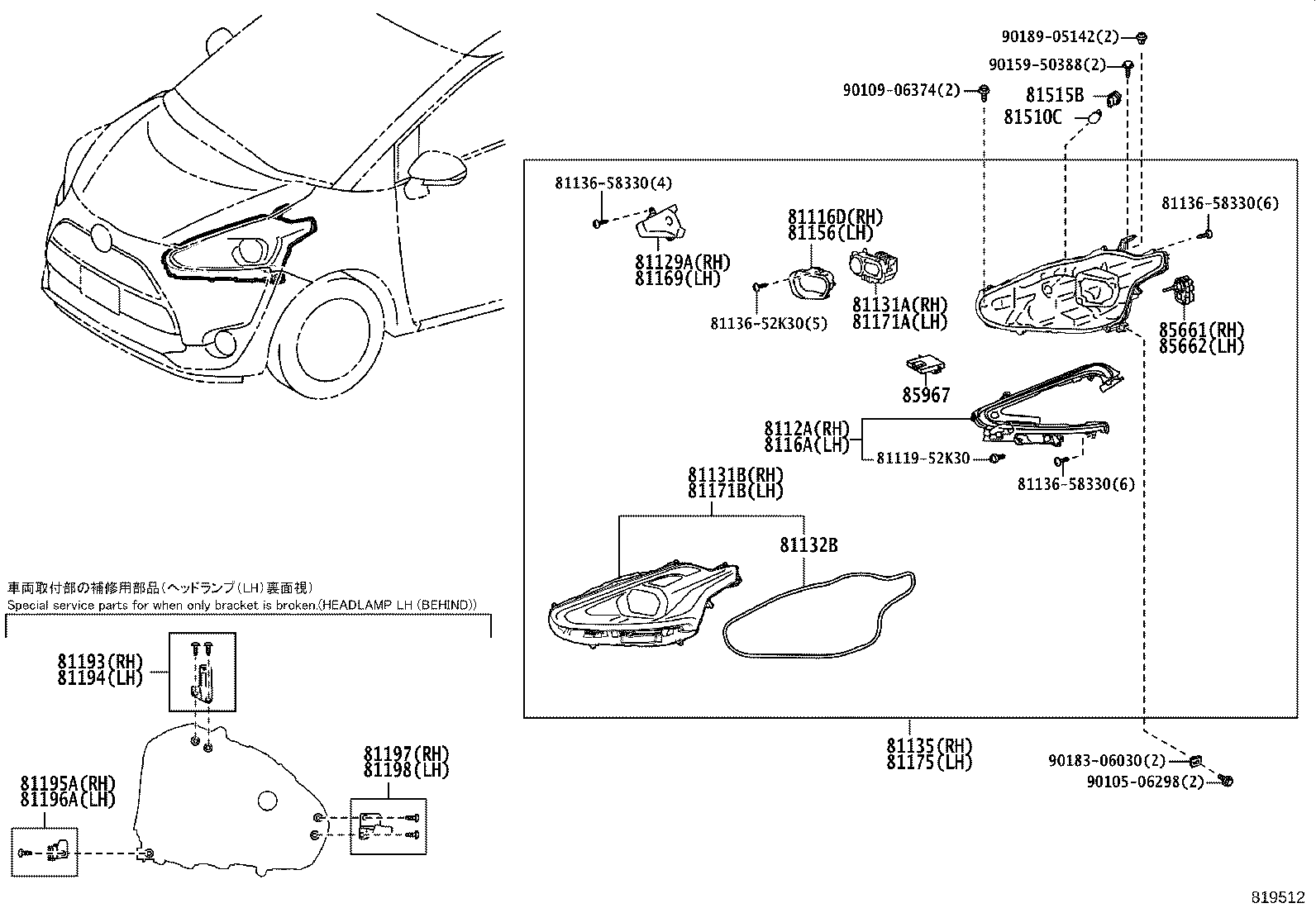

Toyota Sienta (jpp) NHP170 HEADLAMP

Part #	Description	Period	Qty
81116D - RIM, HEAD LAMP, RH
81116-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81129A - REFLECTOR, HEADLAMP, RH
81129-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH
8112A-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81131A - UNIT, HEADLAMP, RH
81140-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81131B - HEAD LAMP LENS, RH
81131-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81132B - GASKET, HEADLAMP LENS
81132-58330	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-52K20	NHP170,NSP170	06/2015 - 09/2018	1
81130-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 01/2017	1
81130-52K31	NHP170,NSP170..Q HEADLAMP-LED	01/2017 - 09/2018	1
81156 - RIM, HEADLAMP, LH
81156-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81169 - REFLECTOR, HEADLAMP, LH
81169-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH
8116A-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81171A - UNIT, HEADLAMP, LH
81160-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81171B - HEAD LAMP LENS, LH
81171-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-52K30	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 01/2017	1
81170-52K31	NHP170,NSP170..Q HEADLAMP-LED	01/2017 - 09/2018	1
81170-52K20	NHP170,NSP170	06/2015 - 09/2018	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-52270	NHP170,NSP170	06/2015 - 09/2018	1
81193-52280	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-52270	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81194-52260	NHP170,NSP170	06/2015 - 09/2018	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-52200	NHP170,NSP170	06/2015 - 09/2018	1
81195-52210	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-52180	NHP170,NSP170	06/2015 - 09/2018	1
81196-52190	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-52080	NHP170,NSP170	06/2015 - 09/2018	1
81197-52090	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-52080	NHP170,NSP170	06/2015 - 09/2018	1
81198-52090	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	NHP170,NSP170 12V 21W,AMBER	06/2015 - 09/2018	2
90981-15011	NHP170,NSP170..Q 12V 21W,AMBER,HEADLAMP-LED	06/2015 - 09/2018	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	NHP170,NSP170	06/2015 - 09/2018	2
81515-42050	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-68011	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
85661-12010	NHP170,NSP170	06/2015 - 09/2018	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-68011	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
85661-12010	NHP170,NSP170	06/2015 - 09/2018	1
85967 - COMPUTER, LIGHT CONTROL
85967-52070	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	2
Common parts
81119-52K30
81136-52K30
81136-58330
90105-06298
90109-06374
90159-50388
90183-06030
90189-05142

NHP170R-MWXQB (2015)

(1506-1809)
