NSP170R-MWYDKD (2016)

Toyota Sienta (Asia)

Production Jul 2016 - Jul 2019
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1607- )2NRFE..CVT

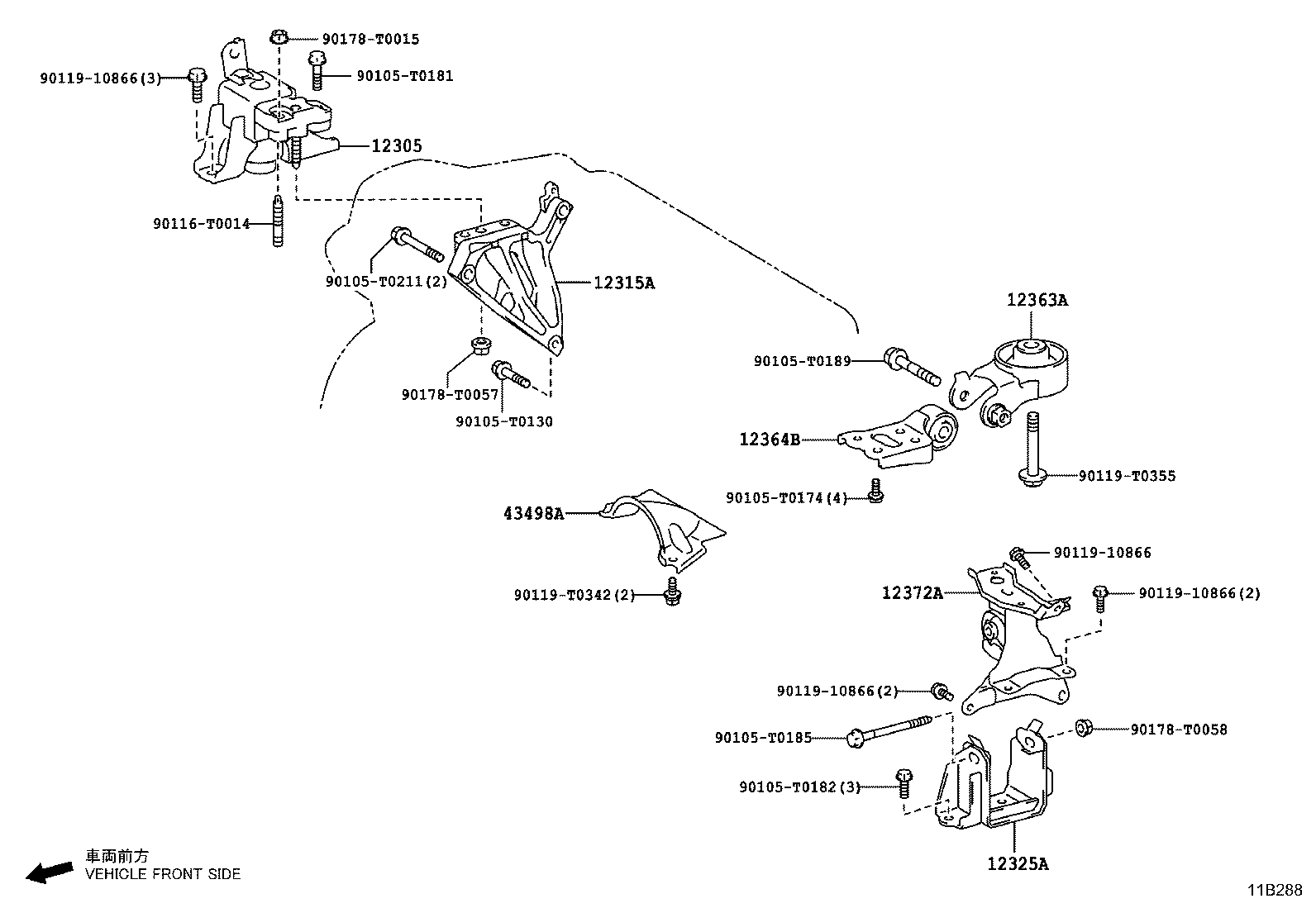

Click highlighted areas on diagram

diagram 12305 12315A 12325A 12363A 12364B 12372A 43498A 90105T0130 90105T0174 90105T0181 90105T0182 90105T0185 90105T0189 90105T0211 90116T0014 9011910866 9011910866 9011910866 9011910866 90119T0342 90119T0355 90178T0015 90178T0057 90178T0058
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y060

2NRFE..NSP170

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y010

2NRFE..NSP170

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y180

2NRFE..NSP170..CVT

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0Y120

2NRFE..NSP170..CVT

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0Y010

2NRFE..NSP170..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y060

2NRFE..NSP170..CVT

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-0D150

NSP170

 1
Common parts
90105-T0130
90105-T0174
90105-T0181
90105-T0182
90105-T0185
90105-T0189
90105-T0211
90116-T0014
90119-10866
90119-T0342
90119-T0355
90178-T0015
90178-T0057
90178-T0058
