NSP170R-MWFNKT (2019)
Toyota Sienta (Asia)

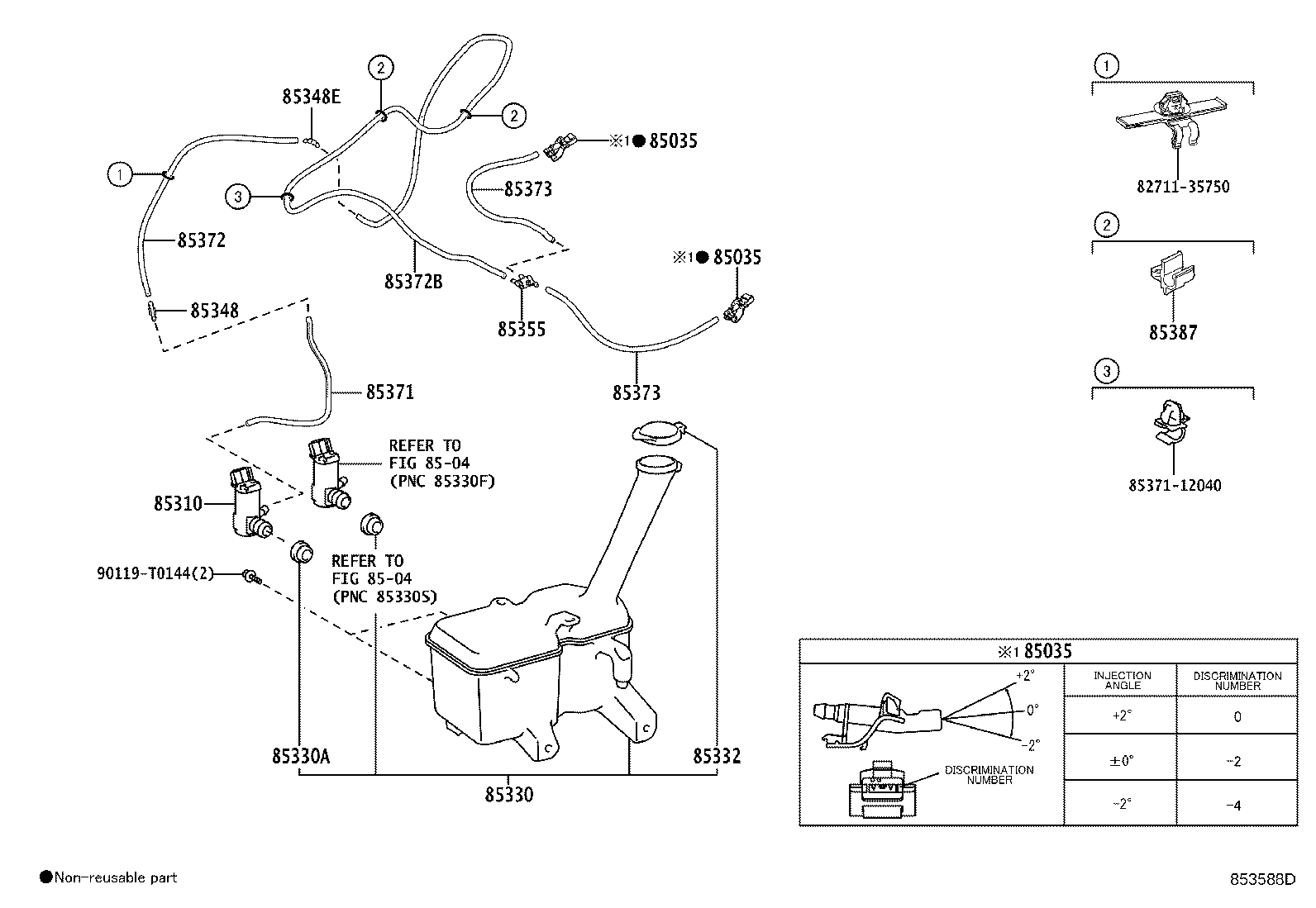

(1607-2002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12410 |
NSP170 (J),ANGLE -2 |
2 | ||
| 85381-0K050 |
NSP170 (L),ANGLE -2 |
2 | ||
| 85381-12400 |
NSP170 (J),ANGLE 0 |
2 | ||
| 85381-12420 |
NSP170 (J),ANGLE +2 |
2 | ||
| 85381-0K040 |
NSP170 (L),ANGLE 0 |
2 | ||
| 85381-0K060 |
NSP170 (L),ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12410 |
NSP170 (J),ANGLE -2 |
2 | ||
| 85381-0K050 |
NSP170 (L),ANGLE -2 |
2 | ||
| 85381-12400 |
NSP170 (J),ANGLE 0 |
2 | ||
| 85381-12420 |
NSP170 (J),ANGLE +2 |
2 | ||
| 85381-0K040 |
NSP170 (L),ANGLE 0 |
2 | ||
| 85381-0K060 |
NSP170 (L),ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12410 |
NSP170 (J),ANGLE -2 |
2 | ||
| 85381-0K050 |
NSP170 (L),ANGLE -2 |
2 | ||
| 85381-12400 |
NSP170 (J),ANGLE 0 |
2 | ||
| 85381-12420 |
NSP170 (J),ANGLE +2 |
2 | ||
| 85381-0K040 |
NSP170 (L),ANGLE 0 |
2 | ||
| 85381-0K060 |
NSP170 (L),ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0K011 |
NSP170 |
1 | ||
| 85330-0K011 |
NSP170 |
1 | ||
| 85330-0K012 |
NSP170 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0D300 |
NSP170 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
NSP170 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-0D300 |
NSP170 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NSP170 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
NSP170 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
NSP170 |
1 | ||
| 85348-14390 |
NSP170 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33300 |
NSP170 L=210 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-59159 |
NSP170 L=815 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59160 |
NSP170 L=1150 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33290 |
NSP170 L=370 |
2 | ||
| 90068-33394 |
NSP170 L=40 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33290 |
NSP170 L=370 |
2 | ||
| 90068-33394 |
NSP170 L=40 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85375-12540 |
NSP170 |
2 | ||
| Common parts | ||||
| 82711-35750 | ||||
| 85371-12040 | ||||
| 90119-T0144 | ||||
| Linked diagrams | ||||
| 8504 | ||||

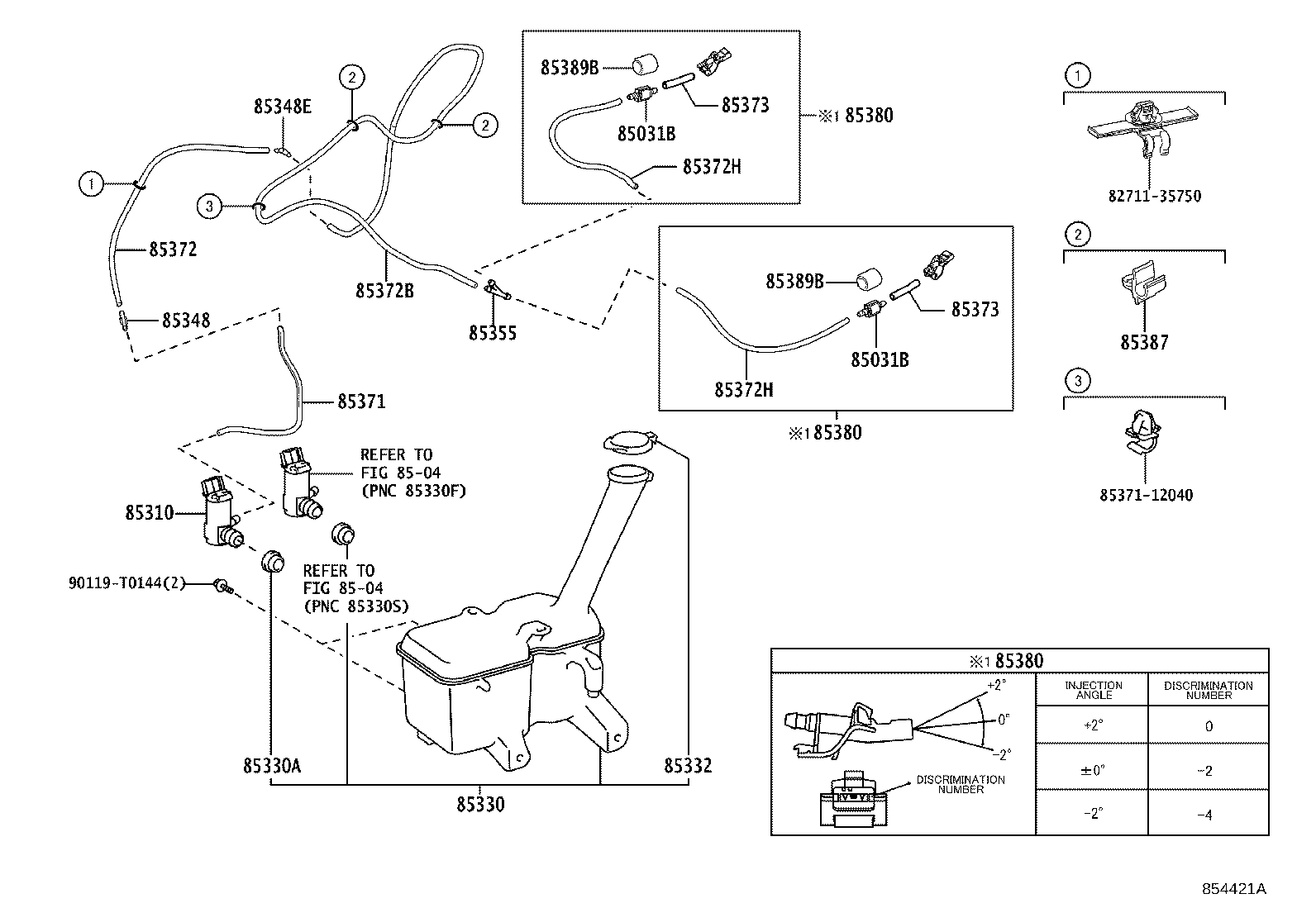

(2002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85321-26020 |
NSP170 |
2 | ||
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85321-26020 |
NSP170 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0K011 |
NSP170 |
1 | ||
| 85330-0K011 |
NSP170 |
1 | ||
| 85330-0K012 |
NSP170 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0D300 |
NSP170 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
NSP170 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-0D300 |
NSP170 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NSP170 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
NSP170 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
NSP170 |
1 | ||
| 85348-14390 |
NSP170 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33300 |
NSP170 L=210 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-59159 |
NSP170 L=815 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59160 |
NSP170 L=1150 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-33397 |
NSP170 L=310 |
2 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-33397 |
NSP170 L=310 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33290 |
NSP170 L=370 |
2 | ||
| 90068-33394 |
NSP170 L=40 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33290 |
NSP170 L=370 |
2 | ||
| 90068-33394 |
NSP170 L=40 |
2 | ||
| 85380 - NOZZLE & HOSE ASSY, FR WASHER | ||||
| 85380-0D640 |
NSP170 ANGLE +2 |
2 | ||
| 85380-0D630 |
NSP170 ANGLE 0 |
2 | ||
| 85380-0D650 |
NSP170 ANGLE -2 |
2 | ||
| 85380 - NOZZLE & HOSE ASSY, FR WASHER | ||||
| 85380-0D640 |
NSP170 ANGLE +2 |
2 | ||
| 85380-0D630 |
NSP170 ANGLE 0 |
2 | ||
| 85380-0D650 |
NSP170 ANGLE -2 |
2 | ||
| 85380 - NOZZLE & HOSE ASSY, FR WASHER | ||||
| 85380-0D640 |
NSP170 ANGLE +2 |
2 | ||
| 85380-0D630 |
NSP170 ANGLE 0 |
2 | ||
| 85380-0D650 |
NSP170 ANGLE -2 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85375-12540 |
NSP170 |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-26080 |
NSP170 |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-26080 |
NSP170 |
2 | ||
| Common parts | ||||
| 82711-35750 | ||||
| 85371-12040 | ||||
| 90119-T0144 | ||||
| Linked diagrams | ||||
| 8504 | ||||
