NSP170R-MWFNKT (2019)

Toyota Sienta (Asia)

Production Jul 2019 - Sep 9999
Engine 2NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

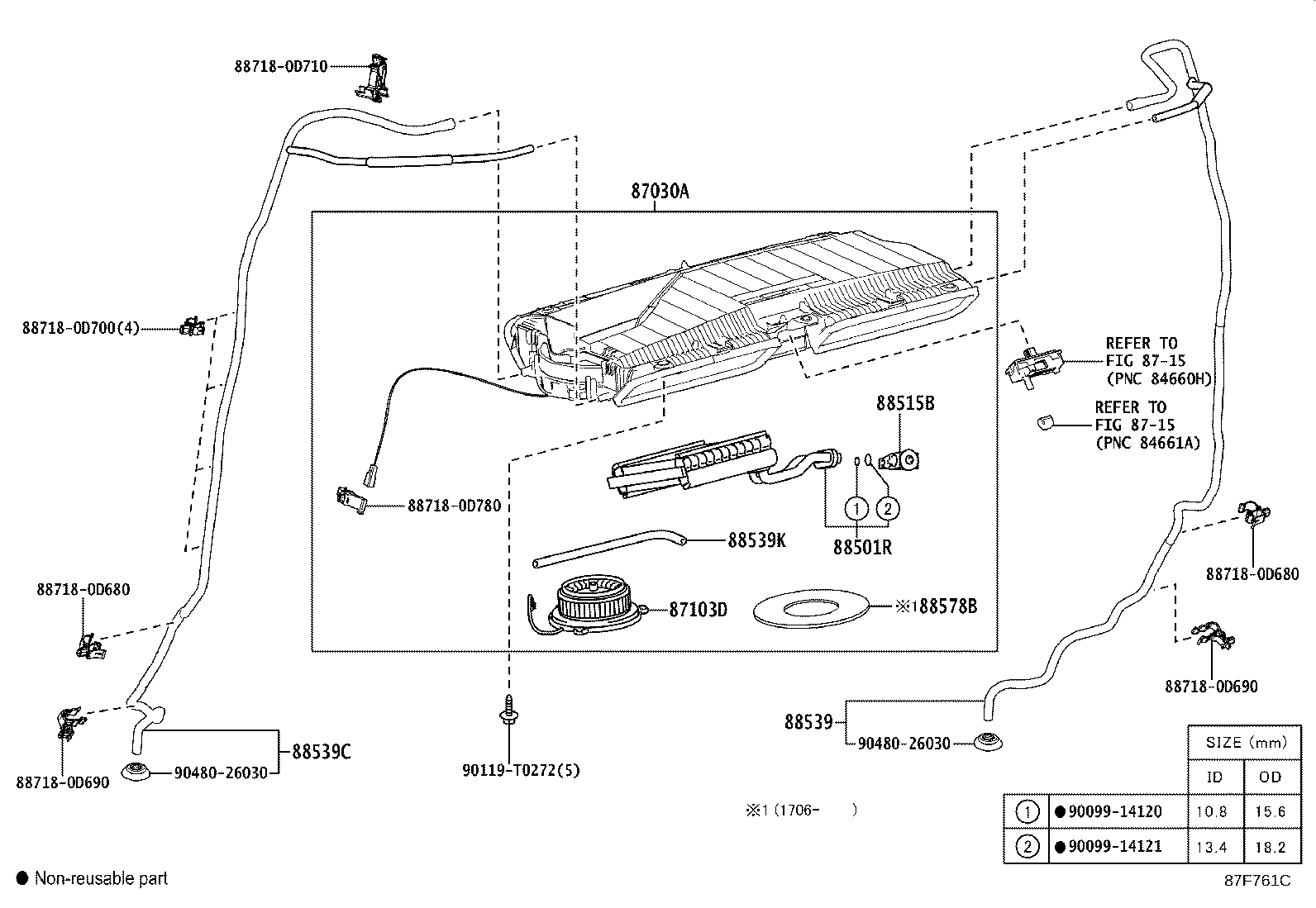

ILLUST NO. 2 OF 2(1607- )

Click highlighted areas on diagram

REAR COOLER

diagram 87030A 87103D 8715 8715 88501R 88515B 88539 88539C 88539K 88578B 887180D680 887180D680 887180D690 887180D690 887180D700 887180D710 887180D780 9009914120 9009914121 90119T0272 9048026030 9048026030
Part # Description Qty Price
87030A - UNIT ASSY, COOLING, REAR
87030-0D240

NSP170..G,Q,V

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0D250

NSP170..G,Q,V

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0D351

NSP170..G,Q,V

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-0D470

NSP170..G,Q,V

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D460

NSP170..G,Q,V

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D480

NSP170..G,Q,V

 1
88539K - HOSE, DRAIN COOLER
88539-0D500

NSP170..G,Q,V

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-0D300

NSP170..G,Q,V

 1
Common parts
88718-0D680
88718-0D690
88718-0D700
88718-0D710
88718-0D780
90099-14120
90099-14121
90119-T0272
90480-26030
Linked diagrams
8715

ILLUST NO. 1 OF 2(1607- )

Click highlighted areas on diagram

FRONT AIR CONDITIONER(MANUAL)

diagram 87050 87103B 87130D 87137B 87138C 87139C 8715 8715 8719387101 88501 88515 88515F 88539J 88548B 88625 88650N 8889952160 9009900318 9009900968 9009900968 9009914120 9009914121 90119T0209 90159T0005 90159T0013 90159T0037 90159T0037
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0D520

NSP170..G..TH

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D390

NSP170

 1
87130D - BLOWER ASSY
87130-0D220

NSP170..E,G

 1
87137B - COVER, HEATER BLOWER
87137-0D020

NSP170

 1
87138C - RESISTOR, BLOWER
87138-0D320

NSP170..E,G

 1
87139C - FILTER, CLEAN AIR
87139-0D170

NSP170

STANDARD,OE PART

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D340

NSP170

 1
88515 - VALVE, COOLER EXPANSION
88515-0D650

NSP170..TH

 1
88515-0D330

NSP170..TH

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

NSP170

 2
88539J - HOSE, DRAIN COOLER
88539-0D470

NSP170

 1
88548B - CASE, AIR FILTER
88548-0D240

NSP170

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0D150

NSP170

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0D570

NSP170..E,G

 1
Common parts
87193-87101
88899-52160
90099-00318
90099-00968
90099-14120
90099-14121
90119-T0209
90159-T0005
90159-T0013
90159-T0037
Linked diagrams
8715

ILLUST NO. 1 OF 2(1607- )

Click highlighted areas on diagram

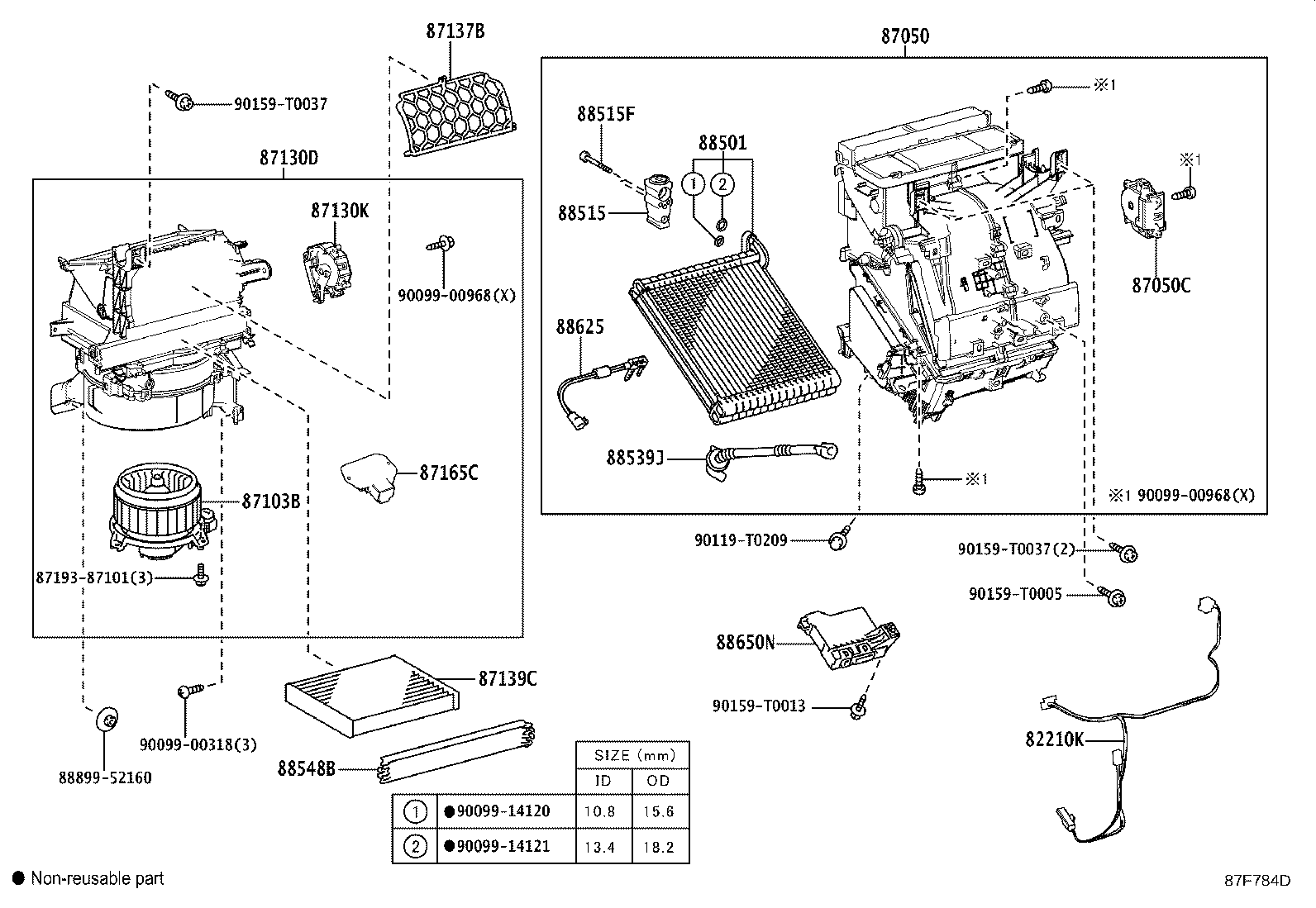

FRONT AIR CONDITIONER(AUTO)

diagram 82210K 87050 87050C 87103B 87130D 87130K 87137B 87139C 87165C 8719387101 88501 88515 88515F 88539J 88548B 88625 88650N 8889952160 9009900318 9009900968 9009900968 9009914120 9009914121 90119T0209 90159T0005 90159T0013 90159T0037 90159T0037
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0D520

NSP170..G..TH

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D390

NSP170

 1
87130D - BLOWER ASSY
87130-0D220

NSP170..E,G

 1
87137B - COVER, HEATER BLOWER
87137-0D020

NSP170

 1
87139C - FILTER, CLEAN AIR
87139-0D170

NSP170

STANDARD,OE PART

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D340

NSP170

 1
88515 - VALVE, COOLER EXPANSION
88515-0D650

NSP170..TH

 1
88515-0D330

NSP170..TH

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

NSP170

 2
88539J - HOSE, DRAIN COOLER
88539-0D470

NSP170

 1
88548B - CASE, AIR FILTER
88548-0D240

NSP170

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0D150

NSP170

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0D570

NSP170..E,G

 1
Common parts
87193-87101
88899-52160
90099-00318
90099-00968
90099-14120
90099-14121
90119-T0209
90159-T0005
90159-T0013
90159-T0037
