NSP170R-MWFNKT (2019)

Toyota Sienta (Asia)

Production Jul 2019 - Sep 9999
Engine 2NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1607- )

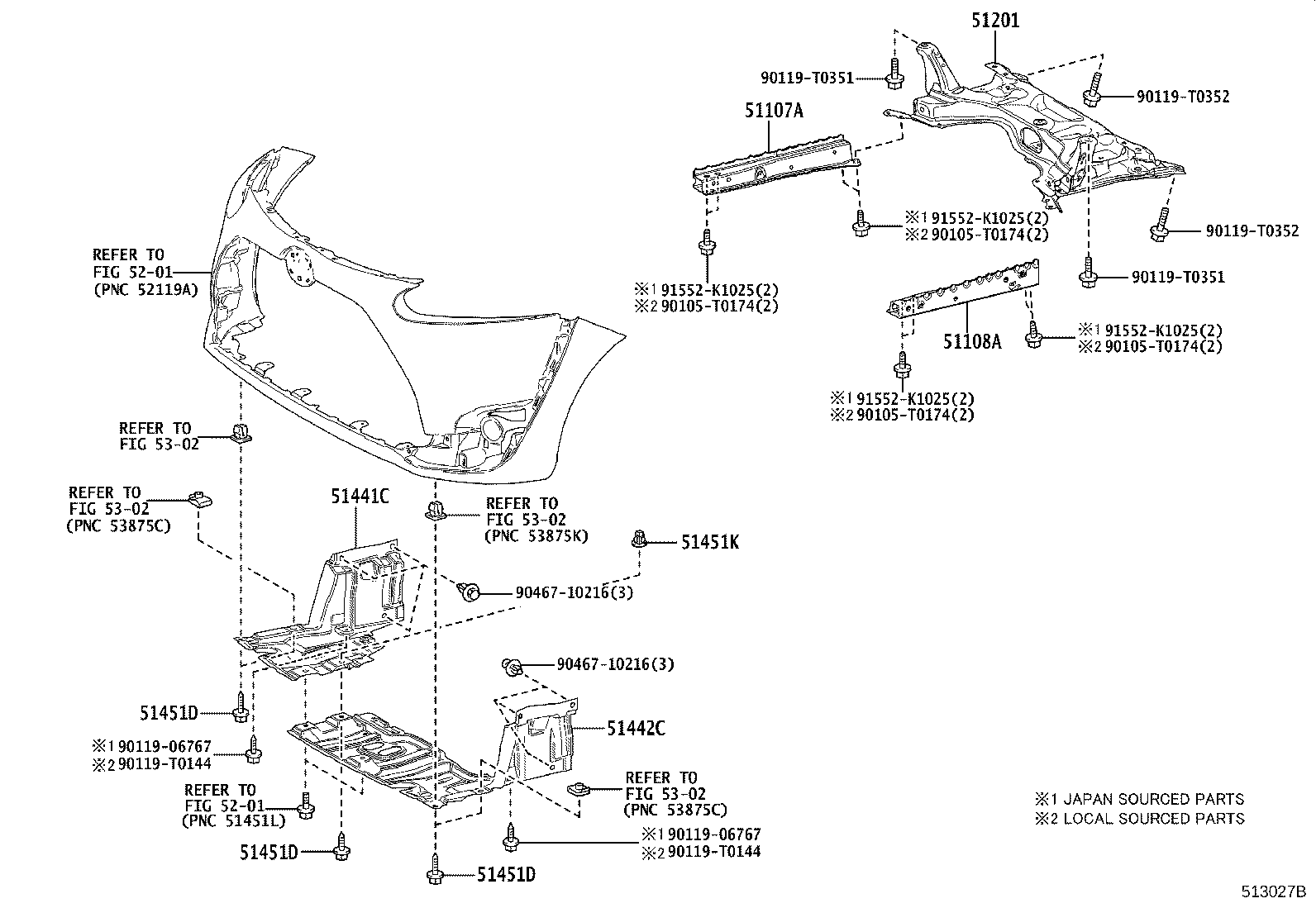

Click highlighted areas on diagram

diagram 51107A 51108A 51201 51441C 51442C 51451D 51451D 51451D 51451K 5201 5201 5302 5302 5302 5302 90105T0174 90105T0174 90105T0174 90105T0174 9011906767 9011906767 90119T0144 90119T0144 90119T0351 90119T0351 90119T0352 90119T0352 9046710216 9046710216 91552K1025 91552K1025 91552K1025 91552K1025
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-0D010

NSP170

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-0D010

NSP170

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0D190

NSP170

 1
51441C - COVER, ENGINE UNDER, RH
51441-0D350

NSP170

 1
51442C - COVER, ENGINE UNDER, LH
51442-0D230

NSP170

 1
51451D - SCREW, NO.1
90159-60383

NSP170

(J)

 1
90159-T0008

NSP170

(L)

 1
51451D - SCREW, NO.1
90159-60383

NSP170

(J)

 1
90159-T0008

NSP170

(L)

 1
51451D - SCREW, NO.1
90159-60383

NSP170

(J)

 1
90159-T0008

NSP170

(L)

 1
51451K - GROMMET, SCREW, NO.1
90189-06076

NSP170

 1
Common parts
90105-T0174
90119-06767
90119-T0144
90119-T0351
90119-T0352
90467-10216
91552-K1025
Linked diagrams
5201
5302
