NSP170R-MWFNKT (2019)

Toyota Sienta (Asia)

Production Jul 2019 - Sep 9999
Engine 2NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1607- )6F

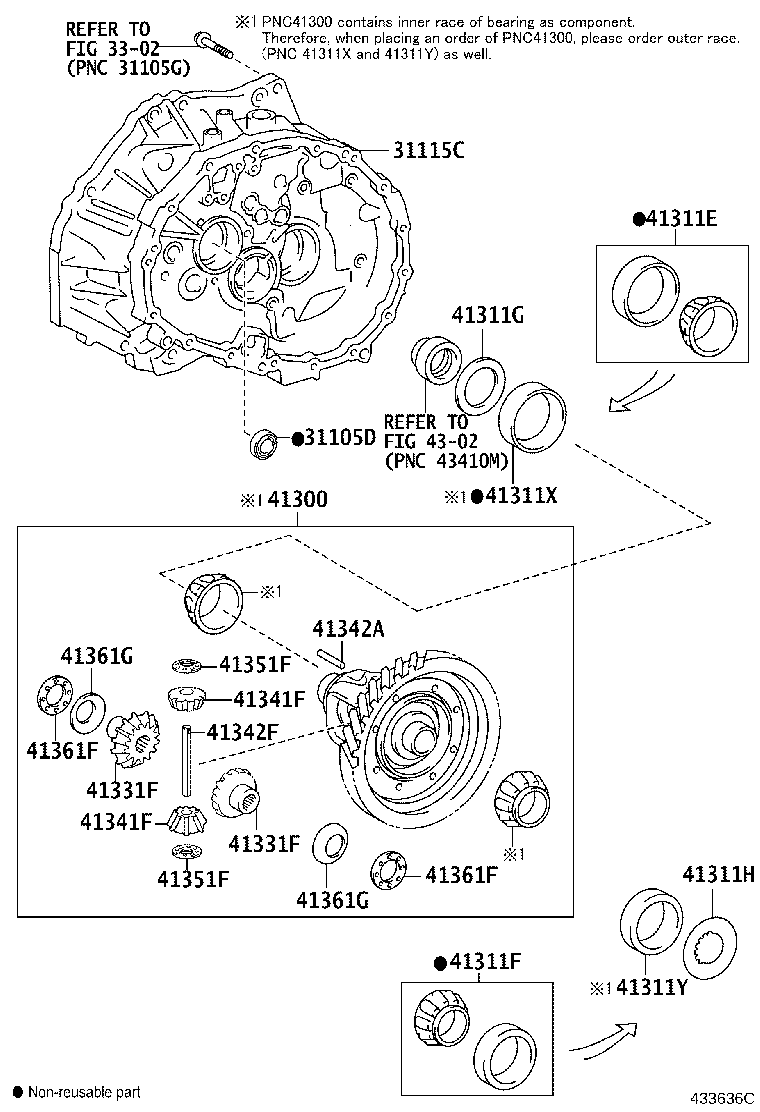

Click highlighted areas on diagram

EC6B

diagram 31105D 31115C 3302 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41361G 41361G 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

NSP170..6F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-52150

NSP170..6F

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-12150

NSP170..6F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40129

NSP170..6F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-42009

NSP170..6F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NSP170..6F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44040

NSP170..6F

T=2.125, MARK 11

 1
90564-44046

NSP170..6F

T=2.275, MARK 17

 1
90564-44045

NSP170..6F

T=2.250, MARK 16

 1
90564-44049

NSP170..6F

T=2.350, MARK 20

 1
90564-44047

NSP170..6F

T=2.300, MARK 18

 1
90564-44051

NSP170..6F

T=2.400, MARK 22

 1
90564-44041

NSP170..6F

T=2.150, MARK 12

 1
90564-44042

NSP170..6F

T=2.175, MARK 13

 1
90564-44044

NSP170..6F

T=2.225, MARK 15

 1
90564-44039

NSP170..6F

T=2.100, MARK 10

 1
90564-44052

NSP170..6F

T=2.425, MARK 23

 1
90564-44054

NSP170..6F

T=2.475, MARK 25

 1
90564-44057

NSP170..6F

T=2.550, MARK 28

 1
90564-44056

NSP170..6F

T=2.525, MARK 27

 1
90564-44058

NSP170..6F

T=2.575, MARK 29

 1
90564-44055

NSP170..6F

T=2.500, MARK 26

 1
90564-44061

NSP170..6F

T=2.650, MARK 32

 1
90564-44068

NSP170..6F

T=2.825, MARK 39

 1
90564-44066

NSP170..6F

T=2.775, MARK 37

 1
90564-44050

NSP170..6F

T=2.375, MARK 21

 1
90564-44060

NSP170..6F

T=2.625, MARK 31

 1
90564-44059

NSP170..6F

T=2.600, MARK 30

 1
90564-44062

NSP170..6F

T=2.675, MARK 33

 1
90564-44067

NSP170..6F

T=2.800, MARK 38

 1
90564-44043

NSP170..6F

T=2.200, MARK 14

 1
90564-44063

NSP170..6F

T=2.700, MARK 34

 1
90564-44069

NSP170..6F

T=2.850, MARK 40

 1
90564-44048

NSP170..6F

T=2.325, MARK 19

 1
90564-44065

NSP170..6F

T=2.750, MARK 36

 1
90564-44064

NSP170..6F

T=2.725, MARK 35

 1
90564-44053

NSP170..6F

T=2.450, MARK 24

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-40130

NSP170..6F

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-42010

NSP170..6F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12190

NSP170..6F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12190

NSP170..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12130

NSP170..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12130

NSP170..6F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NSP170..6F

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-52060

NSP170..6F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NSP170..6F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NSP170..6F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

NSP170..6F

T=1.05,MARK 15

 2
41361-22030

NSP170..6F

T=1.10,MARK 03

 2
41361-22040

NSP170..6F

T=1.20,MARK 04

 2
41361-22020

NSP170..6F

T=1.00,MARK 02

 2
41361-48010

NSP170..6F

T=0.90,MARK 19

 2
41361-22140

NSP170..6F

T=0.95,MARK 14

 2
41361-22160

NSP170..6F

T=1.15,MARK 16

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

NSP170..6F

T=1.05,MARK 15

 2
41361-22030

NSP170..6F

T=1.10,MARK 03

 2
41361-22040

NSP170..6F

T=1.20,MARK 04

 2
41361-22020

NSP170..6F

T=1.00,MARK 02

 2
41361-48010

NSP170..6F

T=0.90,MARK 19

 2
41361-22140

NSP170..6F

T=0.95,MARK 14

 2
41361-22160

NSP170..6F

T=1.15,MARK 16

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

NSP170..6F

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

NSP170..6F

 2
Linked diagrams
3302
4302
