GSL35L-PFZQHK (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(1608- )

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 8271508060 8271545080 8271545110 8271548M50 83530 84540 89465 89465A 89467B 89467C 89491 89615 89615 90105A0128 90105A0128 90119A0182 90119A0182 90119A0182 90119A0183 90178A0023 9046815007 9165140625
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020

GSL3#

(J)

 1
83530-28020

GSL3#

(J)

 1
83530-0E010

GSL3#

(L)

 1
83530-0E010

GSL3#

(L)

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-33020

GSL3#

 1
84540-33010

GSL35

 1
89465 - SENSOR, OXYGEN
89465-08160

GSL3#

 1
89465A - SENSOR, OXYGEN NO.2
89465-0E040

GSL3#

 1
89465-0E210

GSL3#

 1
89467B - SENSOR, AIR FUEL RATIO
89467-0E140

GSL3#

 1
89467-0E250

GSL3#

 1
89467C - SENSOR, AIR FUEL RATIO, NO.2
89467-0E240

GSL3#

 1
89467-06130

GSL3#

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-48020

GSL3#

 1
89615 - SENSOR, KNOCK CONTROL
89615-06010

GSL3#

(L)

 2
89615-20090

GSL3#

(J)

 2
89615-06010

GSL3#

 2
89615 - SENSOR, KNOCK CONTROL
89615-06010

GSL3#

(L)

 2
89615-20090

GSL3#

(J)

 2
89615-06010

GSL3#

 2
Common parts
82715-08060
82715-45080
82715-45110
82715-48M50
90105-A0128
90119-A0182
90119-A0183
90178-A0023
90468-15007
91651-40625

ILLUST NO. 3 OF 8(1608- )

Click highlighted areas on diagram

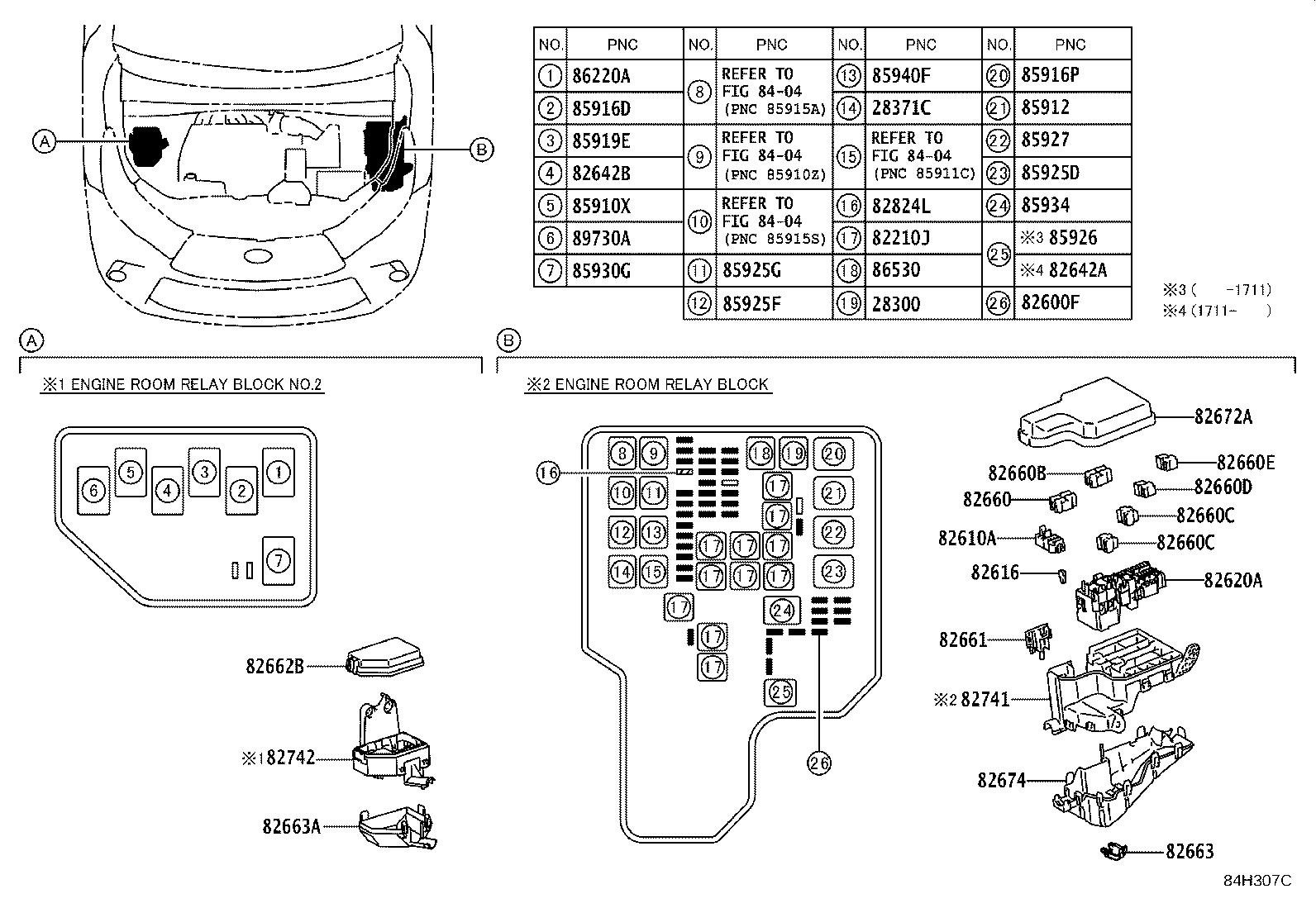

ENGINE ROOM RELAY BLOCK

diagram 28300 28371C 82210J 82600F 82610A 82616 82620A 82642A 82642B 82660 82660B 82660C 82660C 82660D 82660E 82661 82662B 82663 82663A 82672A 82674 82741 82742 82824L 8404 8404 8404 8404 85910X 85912 85916D 85916P 85919E 85925D 85925F 85925G 85926 85927 85930G 85934 85940F 86220A 86530 89730A
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-0A011

2GRFKS..GSL3#

 1
28371C - RELAY, IGNITION, NO.2
90080-87026

2GRFKS..GSL3#

 1
82210J - FUSIBLE LINK
90982-08286

GSL3#

140A,TERM.:MALE,RBR

 1
90982-08308

GSL3#

40A-30A-30A,FEMALE

 1
90982-08301

GSL3#

50A-30A-40A,FEMALE

 1
90982-08304

GSL3#

60A,TERM.:FEMALE,YEL

 1
90982-08306

GSL3#

30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B

 1
90982-08300

GSL3#

50A-30A-30A,FEMALE

 1
82620-08050

GSL3#

180A,TERMINAL:MALE

 1
90982-08286

GSL3#

140A,TERM.:MALE,RBR

 1
90982-08304

GSL3#

60A,TERM.:FEMALE,YEL

 1
90982-08306

GSL3#

30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B

 1
90982-08295

GSL3#

30A,TERM.:FEMALE,PNK

 1
90982-08305

GSL3#

80A,TERM.:FEMALE,BLK

 1
90982-08294

GSL3#

40A,TERM.:FEMALE,GRN

 1
90982-08308

GSL3#

40A-30A-30A,FEMALE

 1
90982-08295

GSL3#

30A,TERM.:FEMALE,PNK

 1
90982-08300

GSL3#

50A-30A-30A,FEMALE

 1
82600F - FUSE, FUSE BLOCK
90982-09024

GSL3#

25A,MINI FUSE

 1
90982-09020

GSL3#

7.5A,MINI FUSE,BROWN

 1
90982-09025

GSL3#

30A,MINI FUSE,GRN

 1
90982-09021

GSL3#

10A,MINI FUSE,RED

 1
90982-09022

GSL3#

15A,MINI FUSE,BLUE

 1
90982-09023

GSL3#

20A,MINI FUSE,YELLOW

 1
90982-09024

GSL3#

25A,MINI FUSE

 1
90982-09019

GSL3#

5A,MINI FUSE,TAN

 1
90982-09019

GSL3#

5A,MINI FUSE,TAN

 1
90982-09020

GSL3#

7.5A,MINI FUSE,BROWN

 1
90982-09023

GSL3#

20A,MINI FUSE,YELLOW

 1
90982-09021

GSL3#

10A,MINI FUSE,RED

 1
90982-09025

GSL3#

30A,MINI FUSE,GRN

 1
90982-09022

GSL3#

15A,MINI FUSE,BLUE

 1
82610A - BLOCK ASSY, FUSE
82610-08010

GSL3#

 1
82610-08010

GSL3#

 1
82616 - PULLER, FUSE
82616-58010

GSL3#

 1
82616-58010

GSL3#

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-08030

GSL3#

 1
82620-08060

GSL3#

 1
82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1
90987-02027

GSL3#

DENSO JAPAN

 1
90080-87026

GSL3#

DENSO USA

 1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-08010

GSL3#

 1
82660-08010

GSL3#

 1
82660B - BLOCK ASSY, RELAY
82660-08020

GSL3#

 1
82660-08020

GSL3#

 1
82660C - BLOCK ASSY, RELAY
82660-0H070

GSL3#

 2
82660-0H070

GSL3#

 2
82660C - BLOCK ASSY, RELAY
82660-0H070

GSL3#

 2
82660-0H070

GSL3#

 2
82660D - BLOCK ASSY, RELAY
82660-42030

GSL3#

 1
82660-42030

GSL3#

 1
82660E - BLOCK ASSY, RELAY
82660-52010

GSL3#

 1
82660-52010

GSL3#

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-42030

GSL3#

 1
82661-08010

GSL3#

 1
82661-42030

GSL3#

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82672-08130

GSL3#

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-08060

GSL3#

 1
82663-08040

GSL3#

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82674-08030

GSL3#

 1
82672A - COVER, JUNCTION BLOCK
82672-08100

GSL3#

 1
82672-08161

GSL3#

 1
82674 - COVER, JUNCTION BLOCK LOWER
82674-08040

GSL3#

 1
82674-08020

GSL3#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-08040

GSL3#

 1
82741-08060

GSL3#

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-08050

GSL3#

 1
82824L - PIN, SHORT
82824-41010

GSL3#

 1
85910X - RELAY, HEATER MIRROR
90987-02027

GSL3#

DENSO JAPAN

 1
90080-87026

GSL3#

DENSO USA

 1
85912 - RELAY, DEFOGGER
90080-87025

GSL3#

 1
85916D - RELAY, FOG LAMP
90987-02027

GSL3#

DENSO JAPAN

 1
90080-87026

GSL3#

DENSO USA

 1
85916P - RELAY, HEADLAMP
90080-87024

GSL3#

 1
85925D - RELAY, PTC HEATER
90080-87024

GSL3#

 1
85925F - RELAY, PTC HEATER NO.2
90080-87026

GSL3#

 1
85925G - RELAY, PTC HEATER NO.3
90080-87026

GSL3#

 1
85926 - RELAY, HEADLAMP DIMMER
90080-87024

GSL3#

 1
90080-87024

GSL3#

 1
85927 - RELAY, COOLING FAN
90080-87024

GSL3#

 1
90080-87024

GSL3#

DENSO USA

 1
90987-02025

GSL3#

DENSO JAPAN

 1
85934 - RELAY, MAGNET-CLUTCH
90987-02028

GSL3#

 1
90987-02028

GSL3#

 1
85940F - RELAY ASSY, WINDSHIELD DEICER
90987-02027

GSL3#

DENSO JAPAN

 1
90080-87026

GSL3#

DENSO USA

 1
86530 - RELAY ASSY, HORN
90080-87026

GSL3#

DENSO USA

 1
90987-02027

GSL3#

DENSO JAPAN

 1
89730A - RELAY(FOR SECURITY WARNING)
90080-87026

GSL3#

DENSO USA

 1
90987-02027

GSL3#

DENSO JAPAN

 1
Linked diagrams
8404
