GSL35L-PFZQHK (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

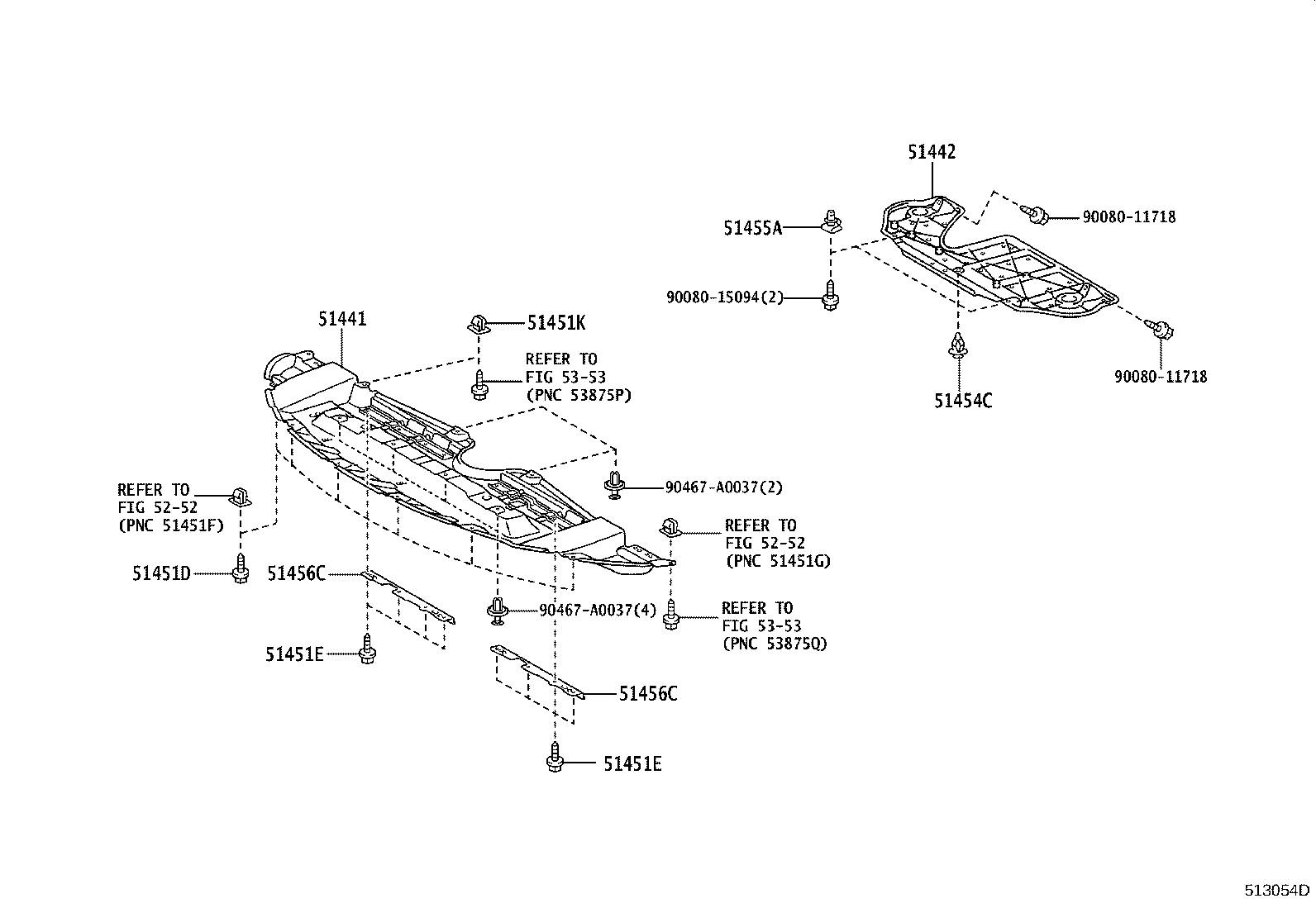

Click highlighted areas on diagram

diagram 51441 51442 51451D 51451E 51451E 51451K 51454C 51455A 51456C 51456C 5252 5252 5353 5353 9008011718 9008011718 9008015094 90467A0037 90467A0037
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-08030

GSL35

 1
51441-08030

ASL30,GSL3#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-0E020

GSL35

 1
51451D - SCREW, NO.1
90159-60525

GSL3#

 6
90159-60525

ASL30,GSL3#

 6
51451K - GROMMET, SCREW, NO.1
90189-06193

GSL3#

 2
90189-06193

ASL30,GSL3#

 2
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-0E010

GSL35

 1
51454-0E010

GSL35

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0E010

GSL35

 2
51455-0E010

GSL35

 2
Common parts
90080-11718
90080-15094
90467-A0037
Linked diagrams
5252
5353
