GSL35L-PFZQHK (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

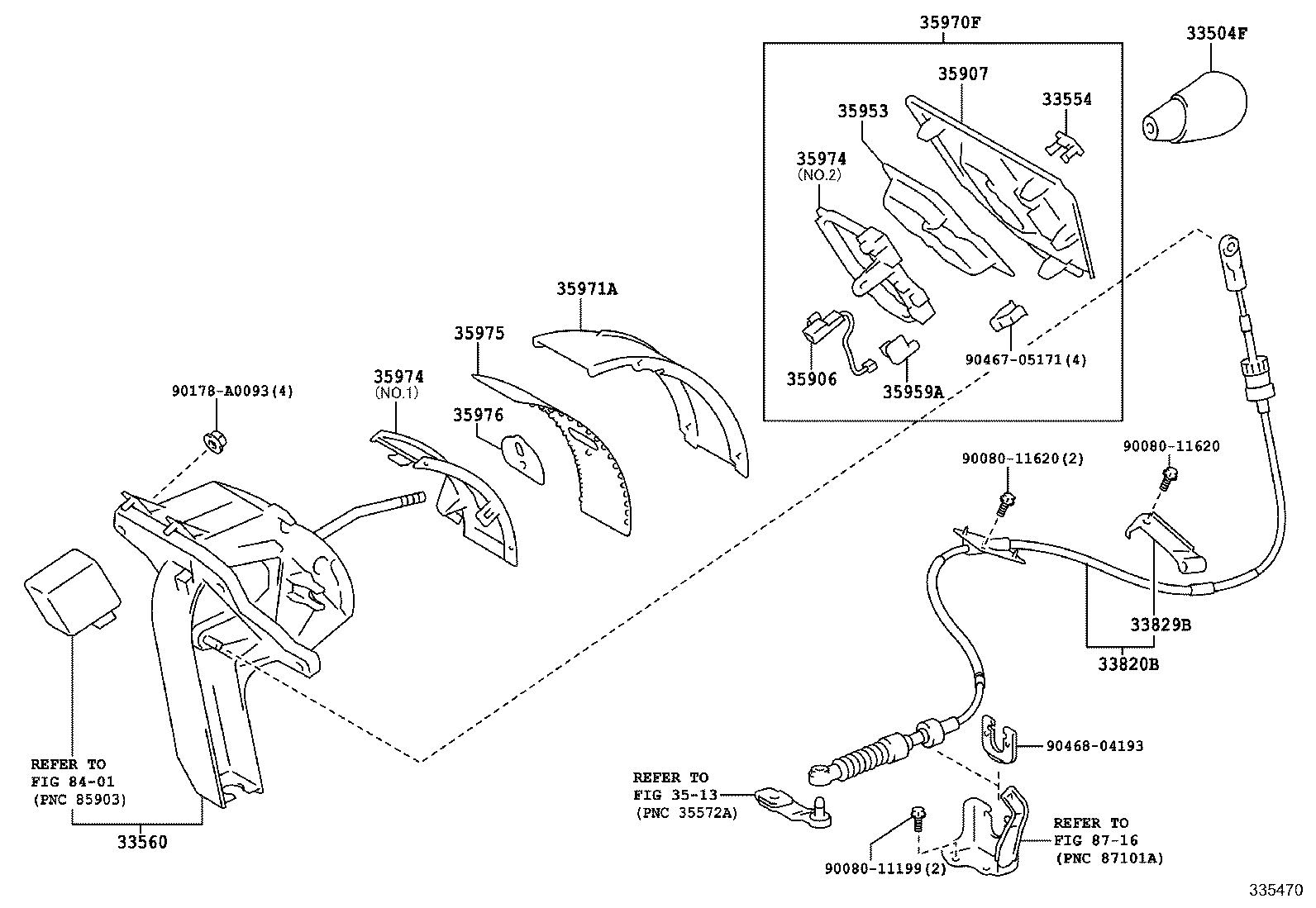

Click highlighted areas on diagram

diagram 33504F 33554 33560 33820B 33829B 3513 35906 35907 35953 35959A 35970F 35971A 35974 35974 35975 35976 8401 8716 9008011199 9008011620 9008011620 90178A0093 9046705171 9046804193
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-08050C1

GSL3#

BLACK/BROWN,TRIM1#,4#

 1
33504-08030C0

GSL3#

BLACK,TRIM1#,4#

 1
33554 - CAP, SHIFT LEVER
33554-08030

GSL3#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-08030

GSL3#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-08050

GSL3#

 1
33820-08030

GSL3#

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-08010

GSL3#

 1
33829-08010

GSL3#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-08030

GSL3#

 1
35906-08020

GSL3#

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-08030

GSL3#

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-08020

GSL3#

 1
35953-08010

GSL3#

 1
35959A - LED, POSITION INDICATOR
35959-0C010

GSL3#

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-08030

GSL3#

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-08010

GSL3#

 1
35971-08010

GSL3#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-08010

GSL3#

NO.1

 1
35974-08020

GSL3#

NO.2

 1
35974-08030

GSL3#

NO.2

 1
35974-08010

GSL3#

NO.1

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-08010

GSL3#

NO.1

 1
35974-08020

GSL3#

NO.2

 1
35974-08030

GSL3#

NO.2

 1
35974-08010

GSL3#

NO.1

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0E030

GSL3#

 1
35975-0E030

GSL3#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-02080

GSL3#

 1
35976-02080

GSL3#

 1
Common parts
90080-11199
90080-11620
90178-A0093
90467-05171
90468-04193
Linked diagrams
3513
8401
8716
