GSL30L-PFZQHK (2017)

Toyota Sienna

Production Nov 2017 - Sep 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )

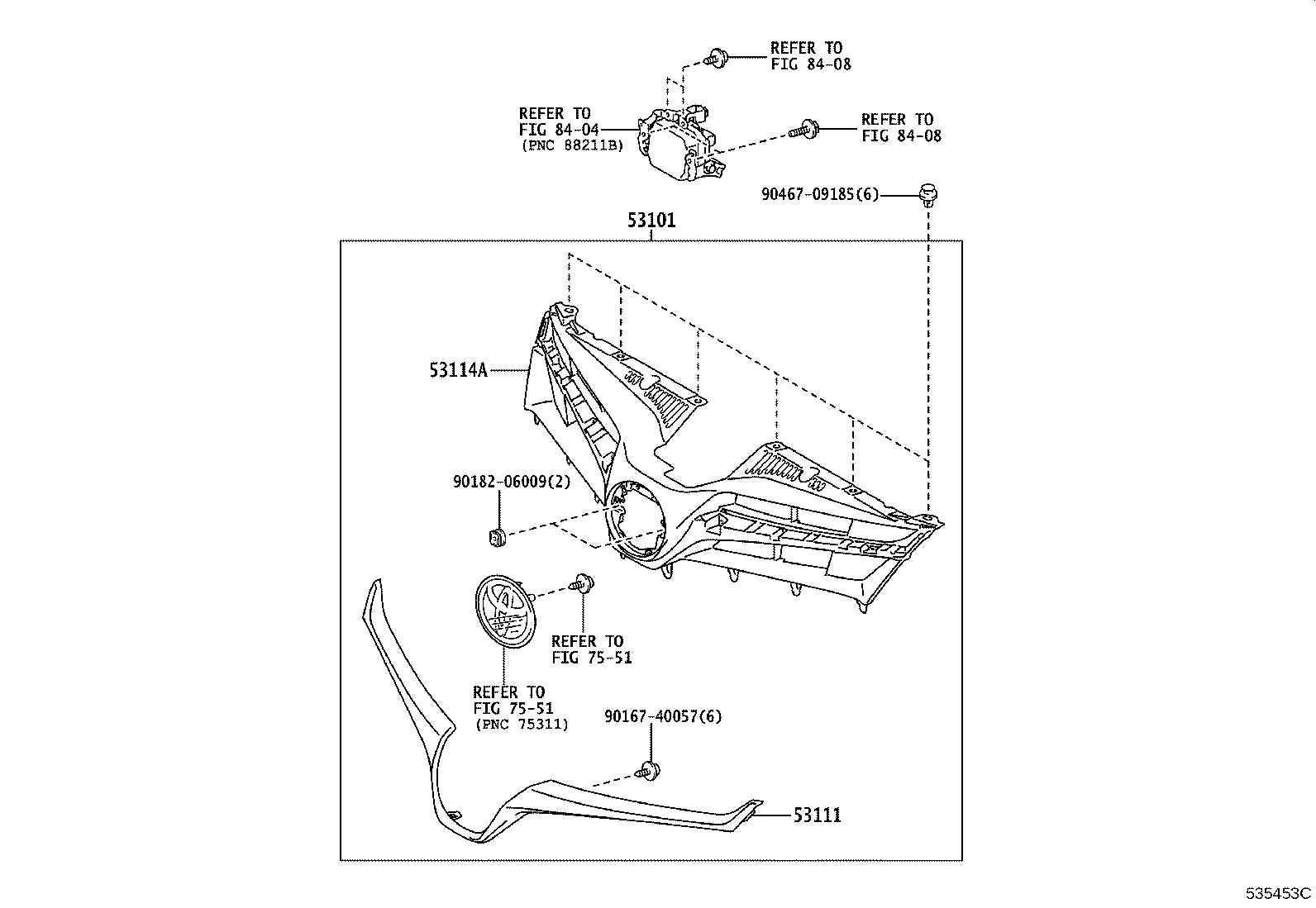

Click highlighted areas on diagram

diagram 53101 53111 53114A 7551 7551 8404 8408 8408 9016740057 9018206009 9046709185
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-08100

GSL30

PLATED

 1
53101-08170

GSL3#

 1
53111 - GRILLE, RADIATOR
53111-08050

GSL30

NO PAINT REQ.

 1
53111-08140

GSL3#

 1
53114A - GRILLE, RADIATOR, INNER
53114-08050

GSL3#

 1
Common parts
90167-40057
90182-06009
90467-09185
Linked diagrams
7551
8404
8408
