GSL30L-PFZQHK (2016)
Toyota Sienna
Production
Aug 2016
-
Nov 2017
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

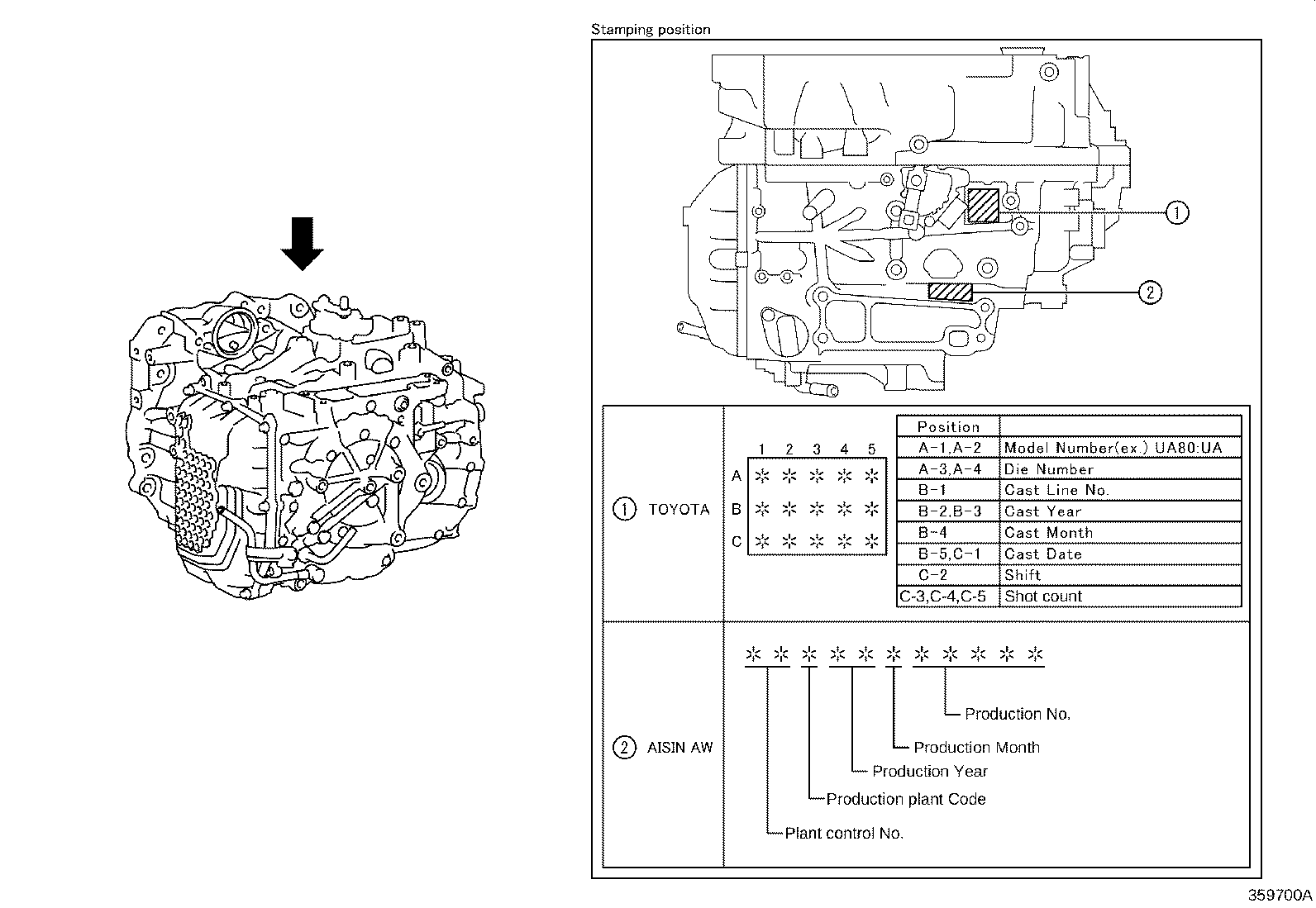

ILLUST NO. 1 OF 2(1608- )
Click highlighted areas on diagram
UA80E,UA80F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM) | ||||
| 04351-08160 |
GSL30 |
1 | ||
| 04351-45040 |
GSL30 AISIN AW |
1 | ||
| 04351-45020 |
GSL30 TOYOTA |
1 | ||
| 30500 - TRANSAXLE ASSY, AUTOMATIC | ||||
| 30500-08050 |
GSL30 U660E |
1 | ||
| 30500-45070 |
GSL30 UA80E,AISIN AW |
1 | ||
| 30500-45050 |
GSL30 UA80E,TOYOTA |
1 | ||
| Linked diagrams | ||||
| 3502 | ||||
ILLUST NO. 2 OF 2(1608- )
Click highlighted areas on diagram
UA80E,UA80F
| Part # | Description | Qty | Price |
|---|
