GSL30L-PFTQKK (2011)

Toyota Sienna

Production Sep 2011 - Sep 2014
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

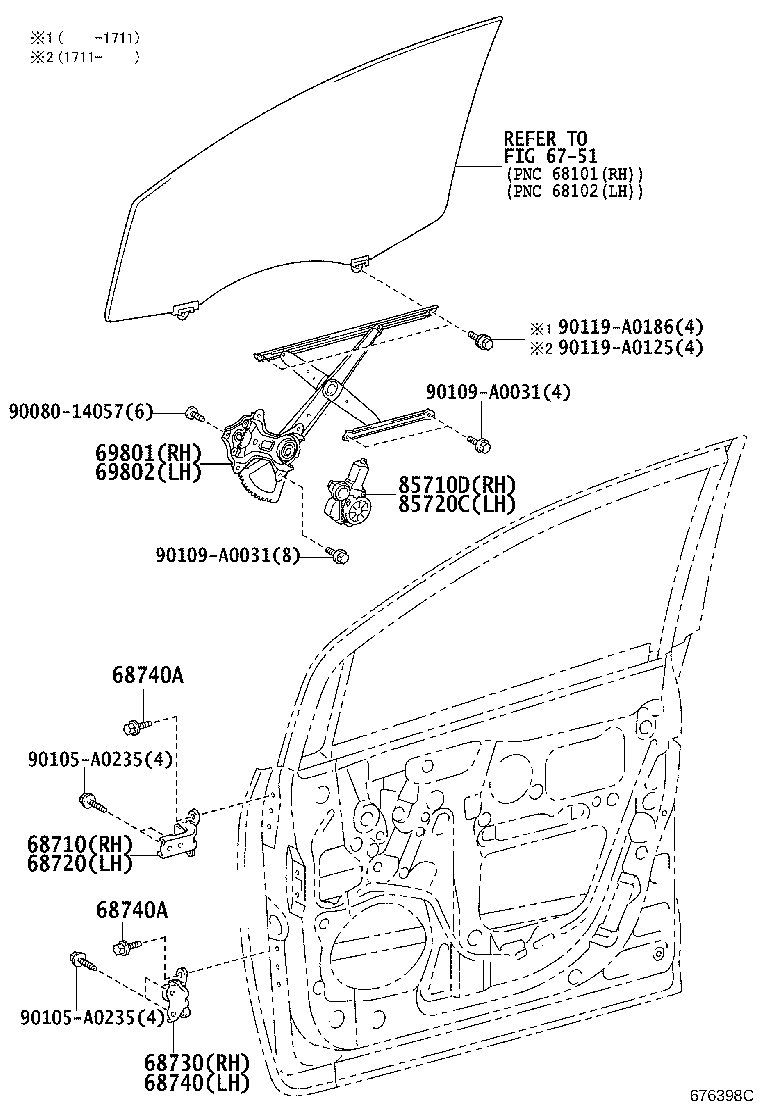

Click highlighted areas on diagram

diagram 6751 68710 68720 68730 68740 68740A 68740A 69801 69802 85710D 85720C 9008014057 90105A0235 90105A0235 90109A0031 90109A0031 90119A0125 90119A0186
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02020

GSL3#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02020

GSL3#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02080

GSL3#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02080

GSL3#

 1
68740A - BOLT(FOR FRONT DOOR HINGE)
90105-A0260

ASL30,GSL3#

 8
68740A - BOLT(FOR FRONT DOOR HINGE)
90105-A0260

ASL30,GSL3#

 8
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-08020

GSL3#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-08020

GSL3#

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-08030

ASL30,GSL30

 1
85710-0T030

GSL3#

 1
85710-0E040

GSL3#

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0E060

GSL3#

 1
85720-08030

ASL30,GSL30

 1
85720-0T030

GSL3#

 1
Common parts
90080-14057
90105-A0235
90109-A0031
90119-A0125
90119-A0186
Linked diagrams
6751
