GSL30L-PFTQKK (2011)
Toyota Sienna
Production
Sep 2011
-
Sep 2014
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

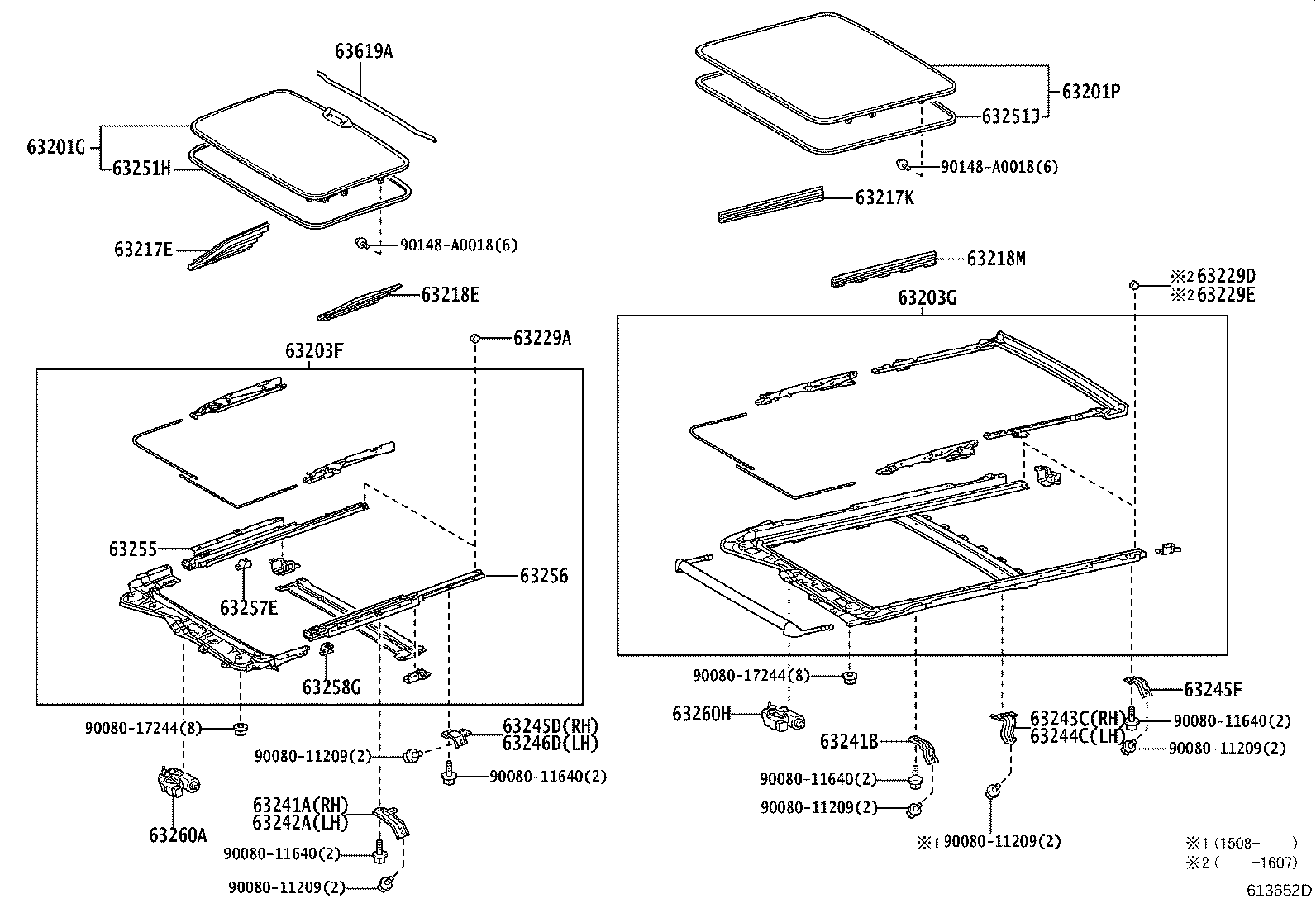

ILLUST NO. 2 OF 4(1109- )GSL30 ; (1109- )GSL35..6FC
Click highlighted areas on diagram
SLIDING ROOF(DUAL ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-08040 |
GSL3# |
1 | ||
| 63201-08041 |
GSL3# |
1 | ||
| 63201P - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-08031 |
GSL3# |
1 | ||
| 63201-08030 |
GSL3# |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-08021 |
GSL3# |
1 | ||
| 63203G - HOUSING SUB-ASSY, SLIDING ROOF, REAR | ||||
| 63203-08030 |
GSL3# |
1 | ||
| 63217E - GARNISH, SLIDING ROOF, FRONT RH | ||||
| 63217-08021 |
GSL3# |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-08030 |
GSL3# |
1 | ||
| 63218E - GARNISH, SLIDING ROOF, FRONT LH | ||||
| 63218-08011 |
GSL3# |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-08030 |
GSL3# |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-08030 |
GSL3# |
2 | ||
| 63229D - STOPPER, SLIDING ROOF SUNSHADE, REAR RH | ||||
| 63229-08030 |
GSL3# |
1 | ||
| 63229E - STOPPER, SLIDING ROOF SUNSHADE, REAR LH | ||||
| 63229-08030 |
GSL3# |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-08020 |
GSL3# |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-08030 |
GSL3# |
2 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-08020 |
GSL3# |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-08020 |
GSL3# |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-08030 |
GSL3# |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-08010 |
GSL3# |
1 | ||
| 63245F - BRACKET, SLIDING REAR MOUNTING | ||||
| 63245-08020 |
GSL3# |
2 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-08010 |
GSL3# |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-08020 |
GSL3# |
1 | ||
| 63251J - WEATHERSTRIP, SLIDING ROOF, NO.2 | ||||
| 63251-08030 |
GSL3# |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-08010 |
GSL3# |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-08010 |
GSL3# |
1 | ||
| 63257E - HOLDER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63257-08011 |
GSL3# |
1 | ||
| 63258G - HOLDER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63258-08011 |
GSL3# |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-08010 |
GSL3# |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-08020 |
GSL3# |
1 | ||
| 63619A - PROTECTOR, REMOVABLE ROOF PANEL, INNER | ||||
| 63619-08010 |
GSL3# |
1 | ||
| Common parts | ||||
| 90080-11209 | ||||
| 90080-11640 | ||||
| 90080-17244 | ||||
| 90148-A0018 | ||||
ILLUST NO. 4 OF 4(1109- )
Click highlighted areas on diagram
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-08030 |
GSL3# |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-08030 |
GSL3# |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-08020 |
GSL3# |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-08020 |
GSL3# |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-08020 |
GSL3# |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-08020 |
GSL3# |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-08020 |
GSL3# |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-08020 |
GSL3# |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-08020 |
GSL3# |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-08020 |
GSL3# |
1 | ||
| Common parts | ||||
| 90080-14039 | ||||
| 90162-50016 | ||||
ILLUST NO. 3 OF 4(1109- )GSL30 ; (1109- )GSL35..6FC
Click highlighted areas on diagram
SLIDING ROOF(DUAL ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08060 |
GSL3# NO.2 |
3 | ||
| 63236-08050 |
GSL3# NO.1 |
6 | ||
| 63236-08070 |
GSL3# NO.3 |
4 | ||
| 63247B - HOSE, SLIDING ROOF | ||||
| 63247-08021 |
GSL3# LH |
1 | ||
| 63247-08011 |
GSL3# RH |
1 | ||
| 63247B - HOSE, SLIDING ROOF | ||||
| 63247-08021 |
GSL3# LH |
1 | ||
| 63247-08011 |
GSL3# RH |
1 | ||
| 63248B - HOSE, SLIDING ROOF | ||||
| 63248-08020 |
GSL3# |
2 | ||
| 63248B - HOSE, SLIDING ROOF | ||||
| 63248-08020 |
GSL3# |
2 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-08040 |
GSL3# |
2 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-08040 |
GSL3# |
2 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
GSL3# |
2 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
GSL3# |
2 | ||
ILLUST NO. 1 OF 4(1109- )GSL30 ; (1109- )GSL35..6FC
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-08020 |
GSL3# |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-08020 |
GSL3# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-08020 |
GSL3# |
1 | ||
| 63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 | ||||
| 63106-08020 |
GSL3# |
1 | ||
| 63107B - REINFORCEMENT SUB-ASSY, ROOF PANEL, RH | ||||
| 63107-08010 |
GSL3# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-08900 |
GSL3# |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-08010 |
GSL3# |
1 | ||
| 63169C - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-0E020 |
GSL3# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E020 |
GSL3# |
1 | ||
| 63405A - SUPPORT SUB-ASSY, ROOF RACK, REAR | ||||
| 63405-08010 |
GSL3# |
1 | ||
| 63406A - SUPPORT SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-08010 |
GSL3# |
1 | ||
| Common parts | ||||
| 90080-11508 | ||||
| 90178-A0093 | ||||
