Toyota Sienna GSL30 REAR FLOOR PANEL & REAR FLOOR MEMBER

Manufacturers Home
Toyota
GR
SIENNA
GSL30L-PFTQKK (2011)
5852 - REAR FLOOR PANEL & REAR FLOOR MEMBER

GSL30L-PFTQKK (2011)

Toyota Sienna

Production Sep 2011 - Sep 2014

Engine 2GRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

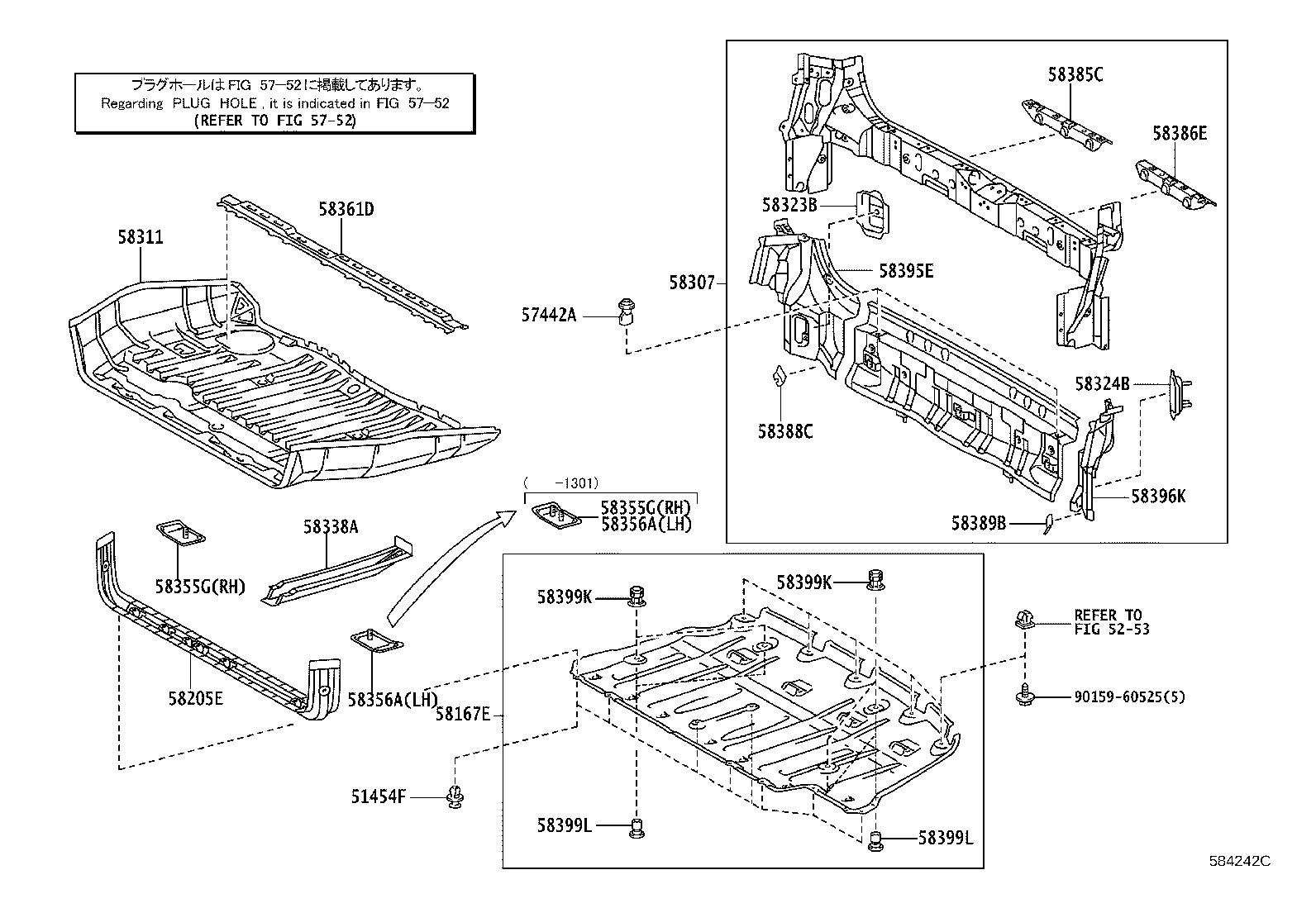

ILLUST NO. 2 OF 2(1109-1711)

Click highlighted areas on diagram

FLOOR & LOWER BACK PANEL

Part #	Description	Period	Qty
51454F - SILENCER, REAR FLOOR COVER
51454-08010	GSL3#	09/2011 - 09/2014	8
57442A - PLUG, LOWER BACK PANEL HOLE
57442-95700	GSL3#	09/2011 - 09/2014	2
58167E - COVER, REAR FLOOR
58167-08010	GSL30	09/2011 - 09/2014	1
58205E - REINFORCE SUB-ASSY, REAR SEAT HINGE
58205-08011	GSL3#	09/2011 - 09/2014	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58302-08020	ASL30,GSL30	09/2011 - 07/2012	1
58302-08030	GSL3#	08/2012 - 09/2014	1
58311 - PAN, REAR FLOOR
58311-08031	GSL3#	09/2011 - 09/2014	1
58323B - REINFORCE, REAR BUMPER ARM SUPPORT, RH
58323-08020	GSL3#	09/2011 - 09/2014	1
58324B - REINFORCE, REAR BUMPER ARM SUPPORT, LH
58324-08020	GSL3#	09/2011 - 09/2014	1
58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2
58338-08020	GSL3#	09/2011 - 09/2014	1
58355G - REINFORCEMENT, FLOOR SIDE PLATE, RH
58355-08010	ASL30,GSL30	09/2011 - 01/2013	1
58355-08011	GSL3#	01/2013 - 09/2014	1
58355G - REINFORCEMENT, FLOOR SIDE PLATE, RH
58355-08010	ASL30,GSL30	09/2011 - 01/2013	1
58355-08011	GSL3#	01/2013 - 09/2014	1
58356A - REINFORCEMENT, FLOOR SIDE PLATE, LH
58356-08010	ASL30,GSL30	09/2011 - 01/2013	1
58356-08011	GSL3#	01/2013 - 09/2014	1
58356A - REINFORCEMENT, FLOOR SIDE PLATE, LH
58356-08010	ASL30,GSL30	09/2011 - 01/2013	1
58356-08011	GSL3#	01/2013 - 09/2014	1
58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58361-08010	GSL3#	09/2011 - 09/2014	1
58385C - BRACKET, REAR BUMPER COVER, RH
58385-08010	GSL3#	09/2011 - 09/2014	1
58386E - BRACKET, REAR BUMPER COVER, LH
58386-08010	GSL3#	09/2011 - 09/2014	1
58388C - PLATE, BODY LOWER BACK REINFORCEMENT, RH
58388-08020	ASL30,GSL3#	09/2011 - 09/2014	1
58389B - PLATE, BODY LOWER BACK REINFORCEMENT, LH
58389-08010	ASL30,GSL3#	09/2011 - 09/2014	1
58395E - GUSSET, BACK DOOR OPENING, LOWER RH
64805-08010	GSL3#	09/2011 - 09/2014	1
58396K - GUSSET, BACK DOOR OPENING, LOWER LH
64806-08010	GSL3#	09/2011 - 09/2014	1
58399K - CLIP, NO.1(FOR FLOOR UNDER COVER)
90467-A0029A0	GSL30 SUPER WHITE 2	09/2011 - 09/2014	4
58399K - CLIP, NO.1(FOR FLOOR UNDER COVER)
90467-A0029A0	GSL30 SUPER WHITE 2	09/2011 - 09/2014	4
58399L - CLIP, NO.2(FOR FLOOR UNDER COVER)
90467-A0030C0	GSL30 BLACK	09/2011 - 09/2014	4
58399L - CLIP, NO.2(FOR FLOOR UNDER COVER)
90467-A0030C0	GSL30 BLACK	09/2011 - 09/2014	4
Common parts
90159-60525
Linked diagrams
5253
5752

ILLUST NO. 1 OF 2(1109- )

Click highlighted areas on diagram

FLOOR MENBER

Part #	Description	Period	Qty
51681 - BRACKET, FLEXIBLE HOSE
51681-08020	GSL3#	09/2011 - 09/2014	2
51681 - BRACKET, FLEXIBLE HOSE
51681-08020	GSL3#	09/2011 - 09/2014	2
51967E - HOOK, TRANSPORT, REAR RH
51967-08010	ASL30,GSL30	09/2011 - 08/2013	1
51986 - HANGER, EXHAUST PIPE SUPPORT, NO.3
51986-08010	GSL30	09/2011 - 09/2014	1
51992 - HANGER, EXHAUST PIPE SUPPORT, NO.2
51992-08010	GSL30	09/2011 - 09/2014	1
57307B - OUTRIGGER SUB-ASSY, NO.4 RH
57307-08010	GSL3#	09/2011 - 09/2014	1
57308B - OUTRIGGER SUB-ASSY, NO.4 LH
57308-08010	GSL3#	09/2011 - 09/2014	1
57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57463-08010	GSL3#	09/2011 - 09/2014	1
57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57464-08010	GSL3#	09/2011 - 09/2014	1
57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57601-08030	GSL3#	09/2011 - 09/2014	1
57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57602-08040	GSL30	09/2011 - 09/2014	1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-08023	GSL3#	09/2011 - 09/2014	1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-08021	GSL3#	09/2011 - 09/2014	1
57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-08061	GSL30	09/2011 - 09/2014	1
57627C - COVER, REAR FLOOR SIDE MEMBER, RH
57627-08010	GSL3#	09/2011 - 09/2014	1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-08020	GSL3#	09/2011 - 09/2014	1
57653F - MEMBER, REAR FLOOR CROSS, NO.2
57653-08020	GSL3#	09/2011 - 09/2014	1
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57654-08020	GSL3#	09/2011 - 09/2014	1
57667A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57667-08020	GSL3#	09/2011 - 09/2014	1
57673A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, RH
57673-08010	GSL3#	09/2011 - 09/2014	1
57674C - BRACE, REAR FLOOR NO.2 CROSSMEMBER, LH
57673-08010	GSL3#	09/2011 - 09/2014	1
57689 - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57053-08010	GSL3#	09/2011 - 09/2014	1
57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57804-08010	GSL3#	09/2011 - 09/2014	1
58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58207-08020	GSL3#	09/2011 - 09/2014	1
58215E - BRACKET, REAR SEAT MOUNTING, RH
58215-08010	GSL3#	09/2011 - 09/2014	1
58216D - BRACKET, REAR SEAT MOUNTING, LH
58216-08010	GSL3#	09/2011 - 09/2014	1
58268C - REINFORCEMENT, PARKING BRAKE CABLE, NO.3 RH
58268-08010	GSL3#	09/2011 - 09/2014	1
58311X - BOLT, REAR FLOOR WELD
90080-11610	GSL30	09/2011 - 09/2014	8
Common parts
90119-12391
90119-A0353
Linked diagrams
5752

GSL30L-PFTQKK (2011)

ILLUST NO. 2 OF 2(1109-1711)

ILLUST NO. 1 OF 2(1109- )
