GSL30L-PFTQKK (2011)

Toyota Sienna

Production Sep 2011 - Sep 2014
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1711)

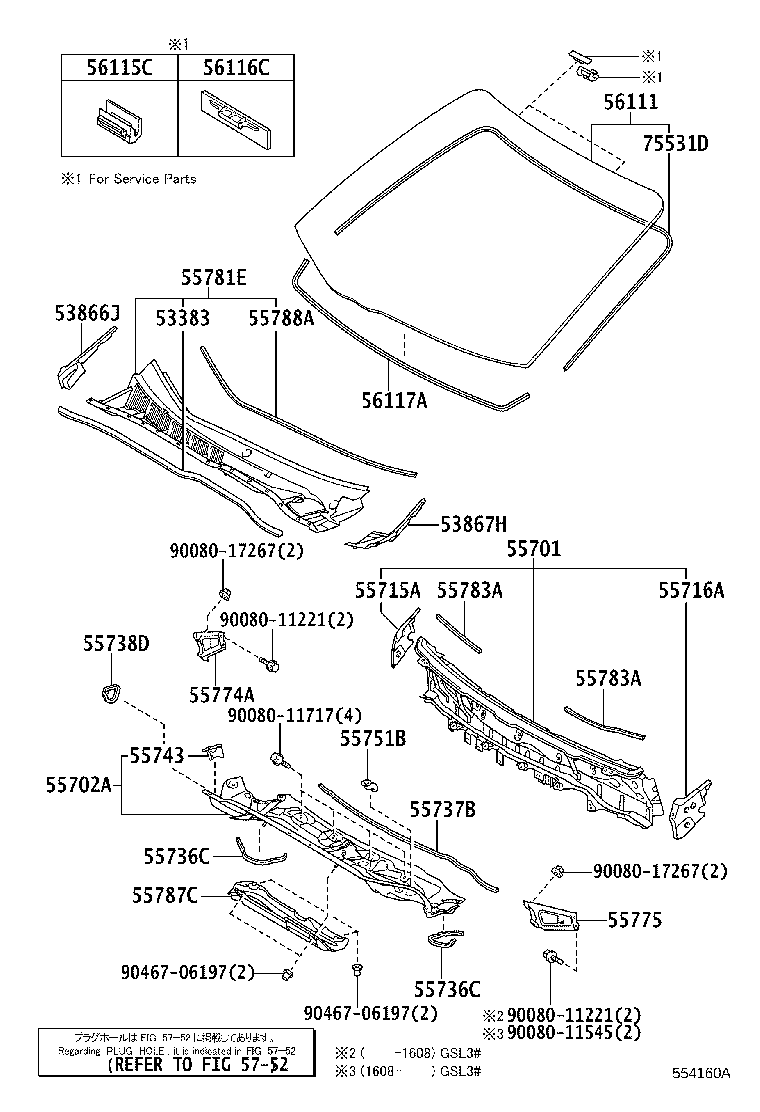

Click highlighted areas on diagram

diagram 53383 53866J 53867H 55701 55702A 55715A 55716A 55736C 55736C 55737B 55738D 55743 55751B 55774A 55775 55781E 55783A 55783A 55787C 55788A 56111 56115C 56116C 56117A 5752 75531D 9008011221 9008011221 9008011545 9008011717 9008017267 9008017267 9046706197 9046706197
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-08030

GSL3#

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-08020

GSL3#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-08020

GSL3#

 1
55701 - PANEL SUB-ASSY, COWL
55701-08021

GSL3#

 1
55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT
55702-08040

GSL3#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-08010

GSL3#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-08010

GSL3#

 1
55736C - SEAL, WATER GUARD PLATE
55736-08020

GSL3#

 2
55736C - SEAL, WATER GUARD PLATE
55736-08020

GSL3#

 2
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-08020

GSL3#

 1
55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738-08030

GSL3#

 1
55743 - PANEL, COWL TOP OUTSIDE CORNER, RH
55743-08030

GSL3#

 1
55751B - HOSE, COWL WATER EXTRACT, NO.1
55751-08030

GSL3#

 1
55774A - BRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55774-08010

GSL3#

 1
55775 - BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55775-08010

GSL3#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-08040

GSL3#

 1
55783A - PAD, COWL TOP SILENCER
55783-08020

GSL3#

 2
55783A - PAD, COWL TOP SILENCER
55783-08020

GSL3#

 2
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-08020

GSL3#

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-08020

GSL3#

 1
56111 - GLASS, WINDSHIELD
56101-08050

ASL30,GSL30

*LAM,T=4.76,GREEN

 1
56101-08091

GSL30

*EHL,T=4.76,GREEN

 1
56101-08051

ASL30,GSL30

*LAM,T=4.76,GREEN

 1
56115C - STOPPER, WINDSHIELD GLASS
56115-30120

GSL3#

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

GSL3#

 1
56117A - DAM, WINDOW GLASS ADHESIVE
90998-91004

GSL3#

*D,L=1816

 1
75531D - MOULDING, WINDSHIELD, OUTSIDE UPPER
75531-08020

GSL3#

 1
Common parts
90080-11221
90080-11545
90080-11717
90080-17267
90467-06197
Linked diagrams
5752
