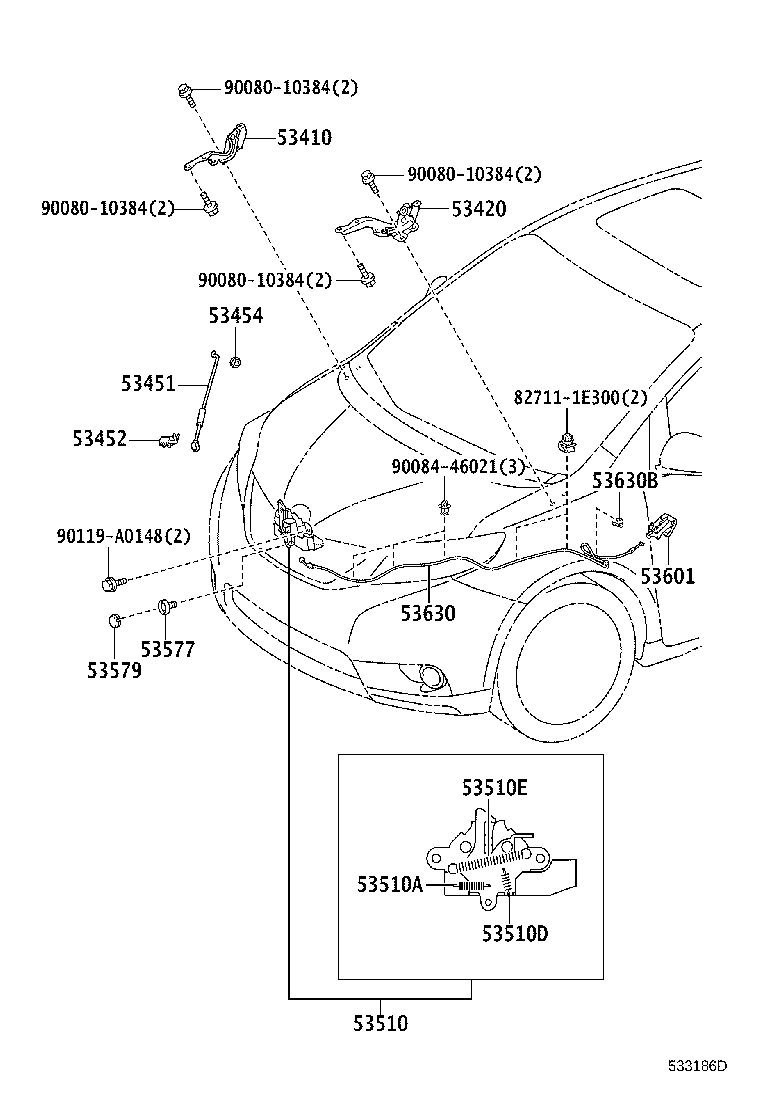

Toyota Sienna GSL30 HOOD LOCK & HINGE

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-08020	GSL3#	09/2011 - 09/2014	1
53420 - HINGE ASSY, HOOD, LH
53420-08020	GSL3#	09/2011 - 09/2014	1
53451 - ROD, HOOD SUPPORT
53440-08021	GSL3#	09/2011 - 09/2014	1
53452 - HOLDER, HOOD STAY
53452-08011	GSL3#	09/2011 - 09/2014	1
53454 - CLIP, HOOD SUPPORT ROD
53454-52010	GSL3#	09/2011 - 09/2014	1
53510 - LOCK ASSY, HOOD
53510-08041	GSL3#	09/2011 - 09/2014	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055	GSL3# WD=0.9,CW=21	09/2011 - 09/2014	1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063	GSL3# WD=1.2,CW=8.5	09/2011 - 09/2014	1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067	GSL3# WD=1.8,CW=13	09/2011 - 09/2014	1
53577 - BOLT, HOOD LOCK
53577-0E010	GSL3#	08/2012 - 09/2014	1
53577-33010	ASL30,GSL30	09/2011 - 07/2012	1
53579 - CAP, HOOD LOCK NUT
53579-0E010	GSL3#	09/2011 - 09/2014	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-02020E4	GSL3# ASH BROWN,TRIM4#	09/2011 - 03/2014	1
53601-02020B2	GSL3# GRAY,TRIM1#	09/2011 - 03/2014	1
53610-08010E0	GSL3# ASH BROWN,TRIM4#	03/2014 - 09/2014	1
53610-08010B1	GSL3# GRAY,TRIM1#	03/2014 - 09/2014	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-08030	GSL3#	09/2011 - 09/2014	1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
82711-1A810	GSL3#	09/2011 - 09/2014	1
Common parts
82711-1E300
90080-10384
90084-46021
90119-A0148

GSL30L-PFTQKK (2011)
