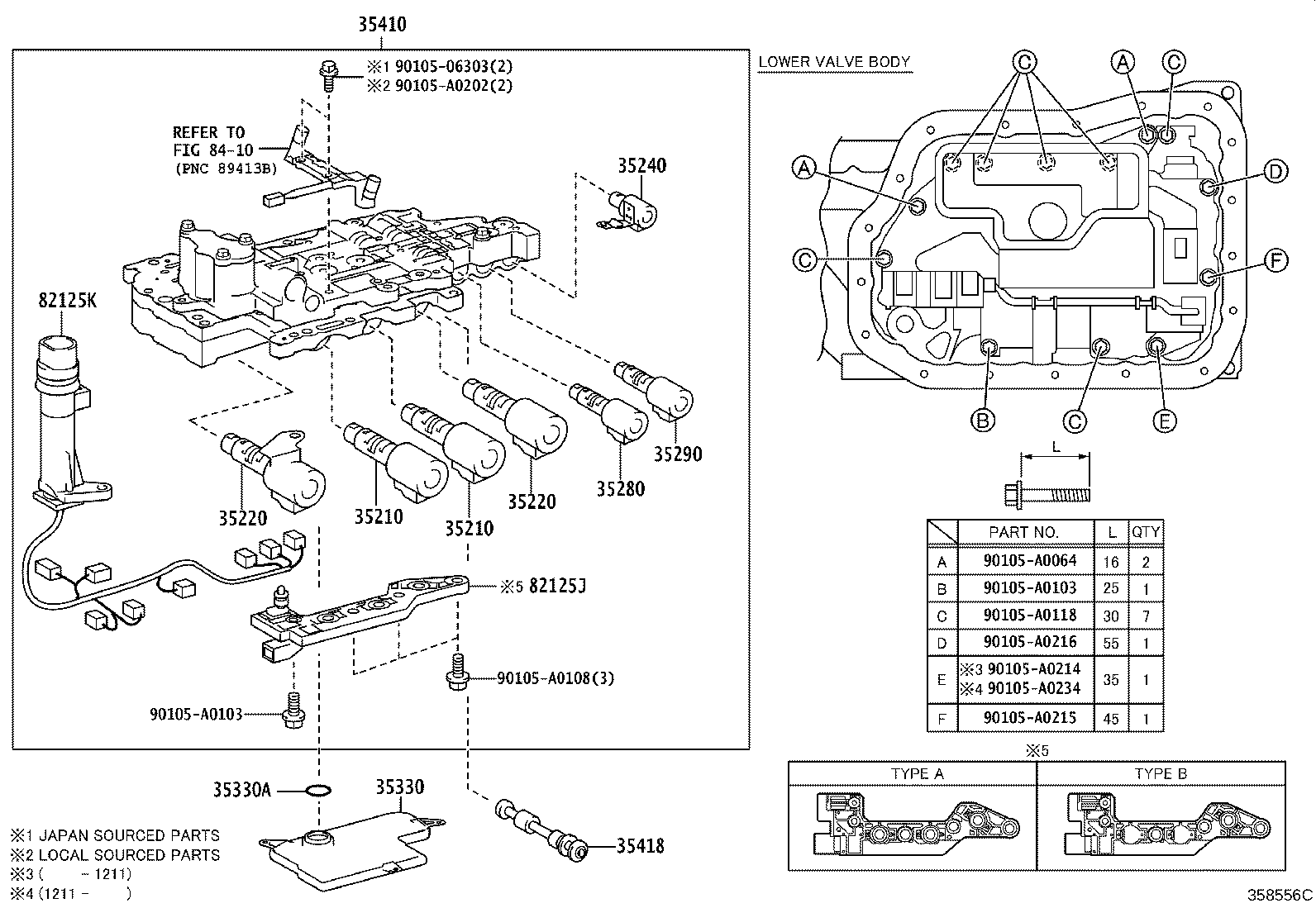

Toyota Sienna GSL30 VALVE BODY & OIL STRAINER (ATM)

Part #	Description	Period	Qty

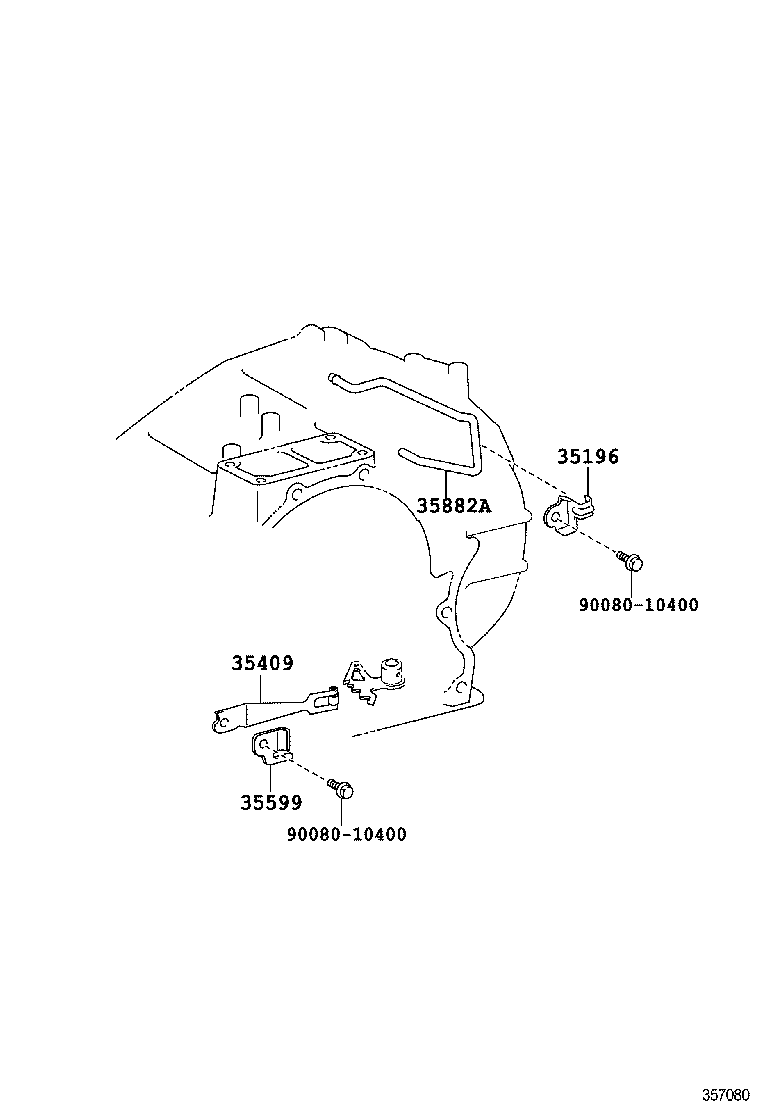

35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-33010	GSL3#	09/2011 - 09/2014	1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-33010	GSL3#	09/2011 - 09/2014	1
35599 - COVER, MANUAL DETENT SPRING
35599-33010	GSL3#	09/2011 - 09/2014	1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-07010	GSL30	09/2011 - 09/2014	1
Common parts
90080-10400

Part #	Description	Period	Qty
35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-33030	GSL3#	09/2011 - 09/2014	2
35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-33030	GSL3#	09/2011 - 09/2014	2
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33040	GSL3#	09/2011 - 09/2014	2
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33040	GSL3#	09/2011 - 09/2014	2
35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-73010	GSL3#	09/2011 - 09/2014	1
35280 - SOLENOID ASSY, LOCK UP CONTROL
35280-52040	GSL3#	09/2011 - 09/2014	1
35290 - SOLENOID ASSY, LINE PRESSURE CONTROL
35290-33040	GSL3#	09/2011 - 09/2014	1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-33050	GSL30	09/2011 - 08/2013	1
35330-48020	GSL3#	08/2013 - 09/2014	1
35330A - RING, O (FOR OIL STRAINER)
90301-A0026	GSL30	09/2011 - 09/2014	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-08021	GSL30	05/2012 - 09/2014	1
35410-08020	GSL30	09/2011 - 05/2012	1
35418 - VALVE, MANUAL
35418-73010	GSL3#	09/2011 - 09/2014	1
82125J - WIRE, TRANSMISSION
82125-33150	GSL3# TYPE B:REFER ILLUST.	03/2012 - 09/2014	1
82125-33090	GSL30 TYPE A:REFER ILLUST.	09/2011 - 03/2012	1
82125K - WIRE, TRANSMISSION
82125-33100	GSL30	09/2011 - 03/2012	1
82125-33160	GSL3#	03/2012 - 09/2014	1
Common parts
90105-06303
90105-A0064
90105-A0103
90105-A0108
90105-A0118
90105-A0202
90105-A0214
90105-A0215
90105-A0216
90105-A0234
Linked diagrams
8410

GSL30L-PFTQKK (2011)
