GSL30L-PFTQKK (2011)

Toyota Sienna

Production Sep 2011 - Sep 2014
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1608)2GRFE

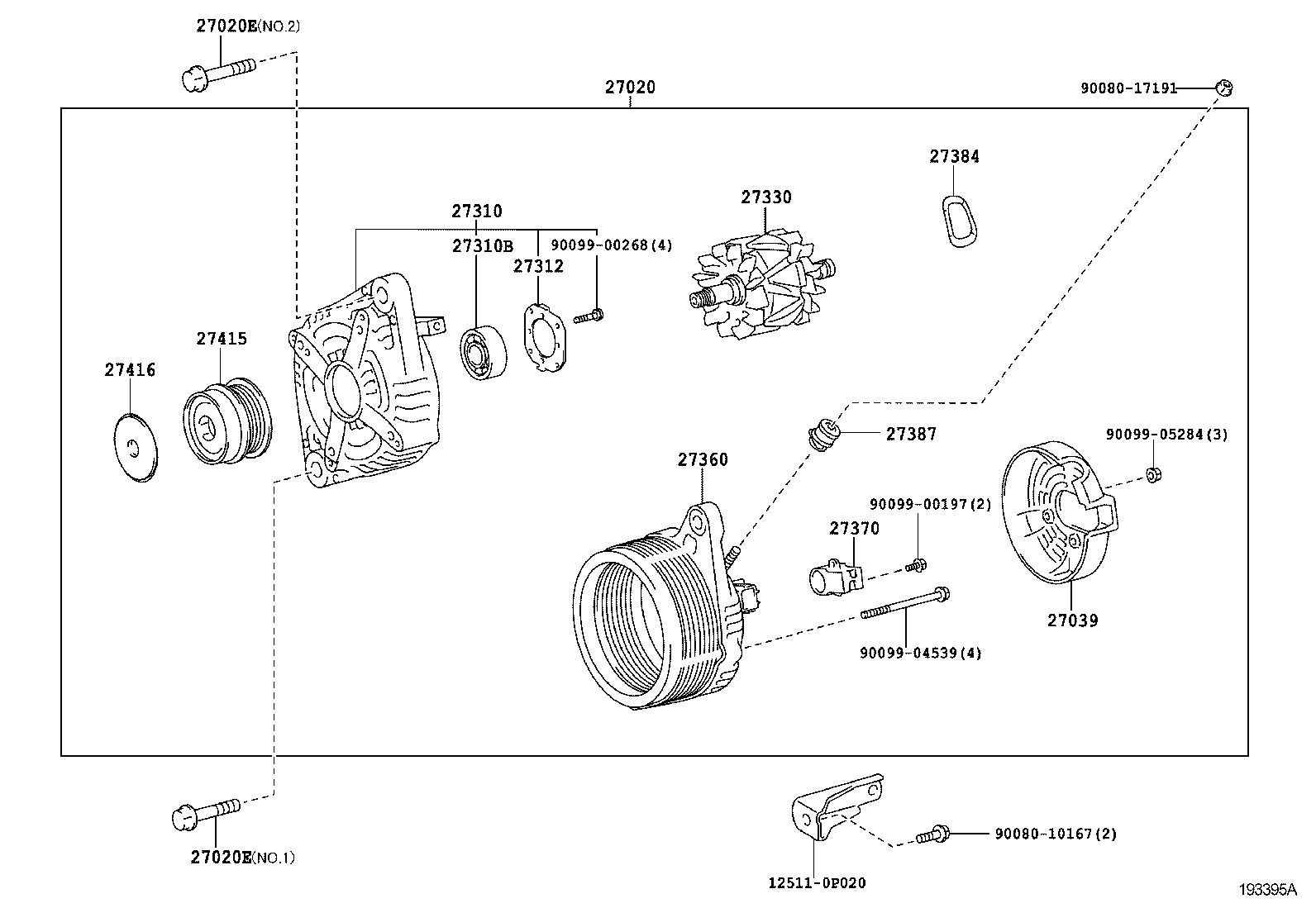

Click highlighted areas on diagram

12V 150A

diagram 125110P020 27020 27020E 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 9008010167 9008017191 9009900197 9009900268 9009904539 9009905284
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0P241

2GRFE..GSL3#

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-A0107

2GRFE..GSL3#

NO.1

 1
90105-A0129

2GRFE..GSL3#

NO.2

 1
27020E - BOLT(FOR ALTERNATOR)
90105-A0107

2GRFE..GSL3#

NO.1

 1
90105-A0129

2GRFE..GSL3#

NO.2

 1
27039 - COVER, ALTERNATOR REAR END
27039-0T040

2GRFE..GSL3#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P140

2GRFE..GSL3#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10033

2GRFE..GSL3#

 1
27312 - PLATE, RETAINER
27312-72100

2GRFE..GSL3#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0A110

2GRFE..GSL3#

 1
27360 - COIL ASSY, ALTERNATOR
27360-0P240

2GRFE..GSL3#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0P020

2GRFE..GSL3#

 1
27384 - WASHER
27384-0A020

2GRFE..GSL3#

 1
27387 - INSULATOR, TERMINAL
27387-0V060

2GRFE..GSL3#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W130

2GRFE..GSL30

 1
27415-0W131

2GRFE..GSL3#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2GRFE..GSL3#

 1
Common parts
12511-0P020
90080-10167
90080-17191
90099-00197
90099-00268
90099-04539
90099-05284
