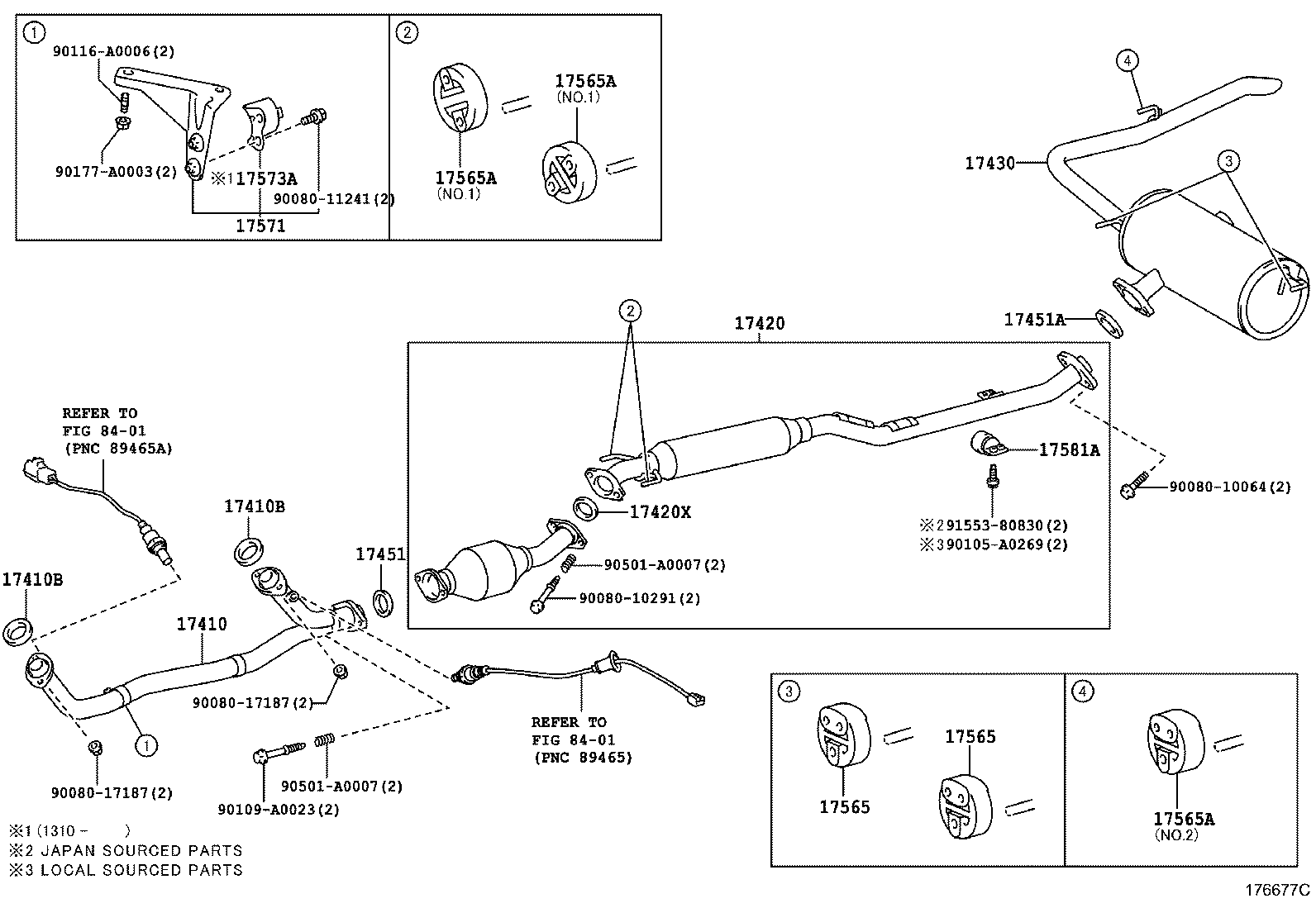

Toyota Sienna GSL30 EXHAUST PIPE

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0P280	2GRFE..GSL30	09/2011 - 09/2014	1
17410B - GASKET, EXHAUST PIPE
90080-43036	2GRFE..GSL3#	09/2011 - 09/2014	2
17410B - GASKET, EXHAUST PIPE
90080-43036	2GRFE..GSL3#	09/2011 - 09/2014	2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0P300	2GRFE..GSL30	09/2011 - 09/2014	1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-0D140	2GRFE..GSL30	09/2011 - 09/2014	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0P240	2GRFE..GSL30	09/2011 - 09/2014	1
17451 - GASKET, EXHAUST PIPE
17451-0D140	2GRFE..GSL30	09/2011 - 09/2014	1
17451A - GASKET, EXHAUST PIPE, NO.2
90080-43026	2GRFE..GSL3#	09/2011 - 09/2014	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0A180	2GRFE..GSL30	09/2011 - 09/2014	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0A180	2GRFE..GSL30	09/2011 - 09/2014	2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S021	2GRFE..GSL3# NO.2	09/2011 - 09/2014	1
17565-0S011	2GRFE..GSL30 NO.1	09/2011 - 09/2014	2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S021	2GRFE..GSL3# NO.2	09/2011 - 09/2014	1
17565-0S011	2GRFE..GSL30 NO.1	09/2011 - 09/2014	2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S021	2GRFE..GSL3# NO.2	09/2011 - 09/2014	1
17565-0S011	2GRFE..GSL30 NO.1	09/2011 - 09/2014	2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-0P140	2GRFE..GSL30	09/2011 - 09/2014	1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-0P150	2GRFE..GSL30	10/2013 - 09/2014	1
17581A - DAMPER, EXHAUST PIPE
17581-31010	2GRFE..GSL30	09/2011 - 09/2014	1
Common parts
90080-10064
90080-10291
90080-11241
90080-17187
90105-A0269
90109-A0023
90116-A0006
90177-A0003
90501-A0007
91553-80830
Linked diagrams
8401

GSL30L-PFTQKK (2011)

(1109-1409)2GRFE..GSL30
