ASL30L-PFTEKK (2011)

Toyota Sienna

Production Sep 2011 - Aug 2013
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1109-1608)

Click highlighted areas on diagram

REAR

diagram 8714 8714 8716 8716 8716 8716 8716 8716 8844608020 88578D 88578E 88688G 88688G 88688G 88716B 88716C 88717A 88717B 8871802160 8871802170 8871808630 8871808640 8871808650 8871808660 8871808660 8871808670 8871808680 8871808690 8871808700 887186A850 8871872020 88840C 88840D 88840E 88840F 88891H 9006908007 9006908009 9006908011 9008017244 9008017245 9008017245 9008017245 9008017245 9008017245 9009900968 9009900968 9009914120 90182A0005 9613452100 9613452100
Part # Description Qty Price
88578D - PACKING, COOLER PIPE, NO.1
88578-08250

ASL30

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-08260

ASL30

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-08250

ASL30

NO.1

 1
88688-08260

ASL30

NO.2

 1
88688-08270

ASL30

NO.3

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-08250

ASL30

NO.1

 1
88688-08260

ASL30

NO.2

 1
88688-08270

ASL30

NO.3

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-08250

ASL30

NO.1

 1
88688-08260

ASL30

NO.2

 1
88688-08270

ASL30

NO.3

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-08310

ASL30

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-08320

ASL30

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-08380

ASL30

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-08390

ASL30

 1
88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1
88840-08200

ASL30

 1
88840D - ACCESSORY ASSY, AIR CONDITIONER, NO.2
88840-08210

ASL30

 1
88840E - ACCESSORY ASSY, AIR CONDITIONER, NO.3
88840-08220

ASL30

 1
88840F - ACCESSORY ASSY, AIR CONDITIONER, NO.4
88840-08230

ASL30

 1
88891H - COVER, COOLER, NO.1
88891-08040

ASL30

 1
Common parts
88446-08020
88718-02160
88718-02170
88718-08630
88718-08640
88718-08650
88718-08660
88718-08670
88718-08680
88718-08690
88718-08700
88718-6A850
88718-72020
90069-08007
90069-08009
90069-08011
90080-17244
90080-17245
90099-00968
90099-14120
90182-A0005
96134-52100
Linked diagrams
8714
8716

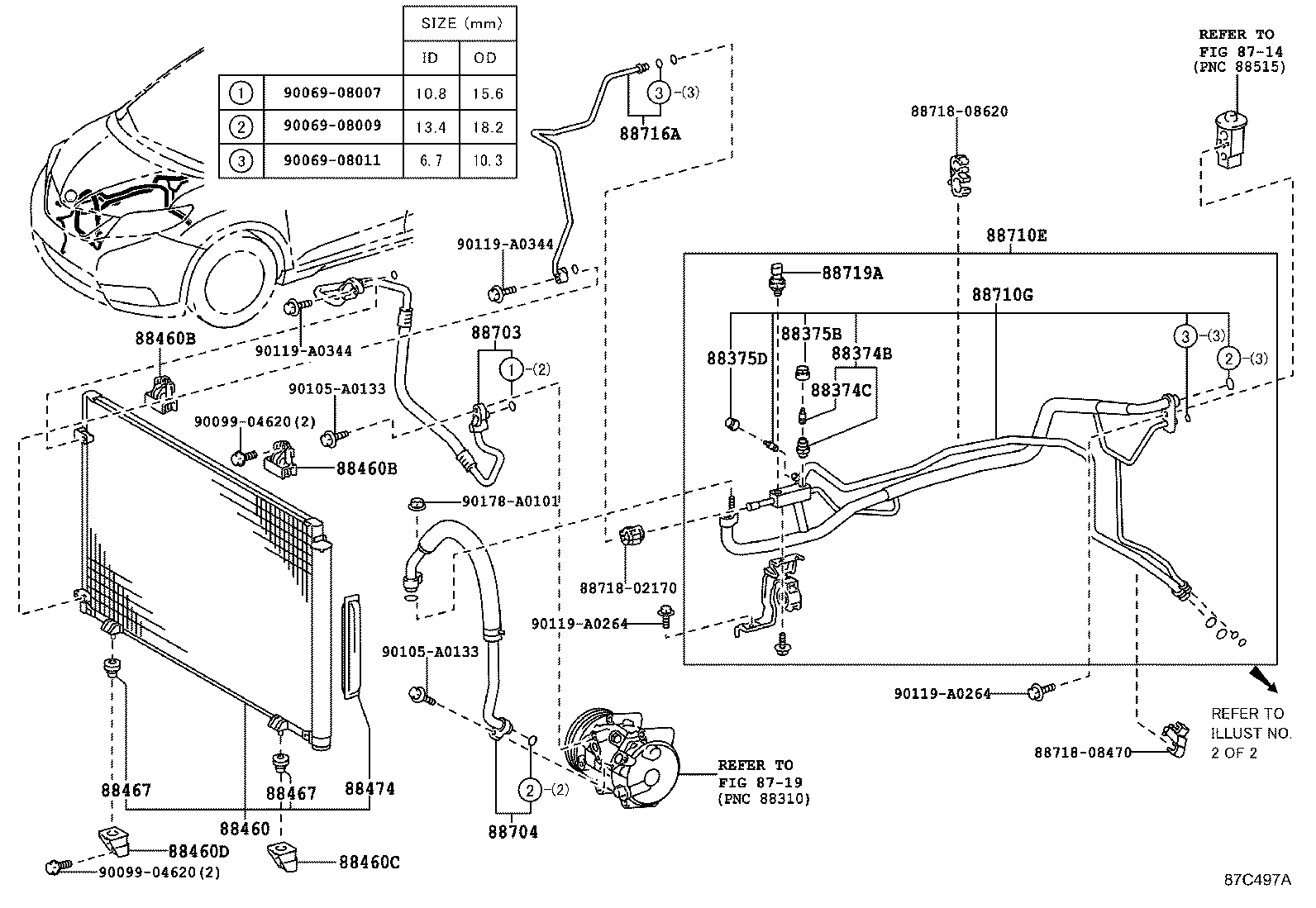

ILLUST NO. 1 OF 2(1109-1308)ASL30

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88460B 88460B 88460C 88460D 88467 88467 88474 88703 88704 88710E 88710G 88716A 8871802170 8871808470 8871808620 88719A 9006908007 9006908009 9006908011 9009904620 9009904620 90105A0133 90105A0133 90119A0264 90119A0264 90119A0344 90119A0344 90178A0101
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-33070

ASL30

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ASL30

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

ASL30

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-02070

ASL30

 1
88460 - CONDENSER ASSY, COOLER
88460-08020

ASL30

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0E080

ASL30

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0E080

ASL30

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-0E090

ASL30

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-0E100

ASL30

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-0E020

ASL30

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-0E020

ASL30

 2
88474 - DRYER, COOLER
88474-08010

ASL30

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-08070

ASL30

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-08170

ASL30

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-08070

ASL30

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-08090

ASL30

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-08300

ASL30

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ASL30

 1
Common parts
88718-02170
88718-08470
88718-08620
90069-08007
90069-08009
90069-08011
90099-04620
90105-A0133
90119-A0264
90119-A0344
90178-A0101
Linked diagrams
8714
8719
